TENSE has added to its line of regulators for reactive power compensation systems

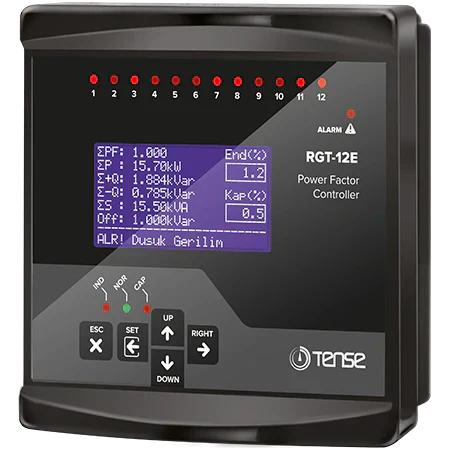

Regulator for reactive power compensation units, 12 steps, RGT-12E, made by Tense (Turkey) The new development of the TENSE company meets all the latest requirements of modern reactive power compensation systems installed in various places in industry and civil construction - factories, workshops, farms, hotels, gas stations, shopping centers, schools, hospitals, banks.
The new reactive power controller (reactive power compensation controller) has the following features:
- 12 relay outputs;
- Possibility of use with three and one current transformer;
- 2.9-inch LCD display + 17 LED indicators - provides easy setup and total control over the operation of the compensation device;
- Separate relay output, programmable for various emergency situations - overvoltage, harmonics, cos.phi;
- Password protection of settings to prevent unauthorized changes to the operating parameters of the condenser unit;
- Indication of connected steps;
- Automatic and/or manual input of capacitor values in steps;
- Automatic control of the uniformity of the operating time of individual stages;
- Setting of various time parameters of operation by the user - response time to changes in the network, unloading time, time between restarting a stage, time between starting several stages;
- Compensation of both inductive and capacitive reactive components;
- Built-in active/reactive energy meters (import/export/inductive/capacitive);
- Displays up to 31 harmonics for current and voltage;
- Measurement of total harmonic distortion of current and/or voltage;
- Built-in reactive energy analyzer with logbook for step-by-step capacitor selection (20 records 9999 minutes).
