Air conditioner for distribution boards / Cooler 1100W, PAD1100.01, Plastim
- Regular price
- 7.817,00 lei
- Regular price
-
- Sale price
- 7.817,00 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

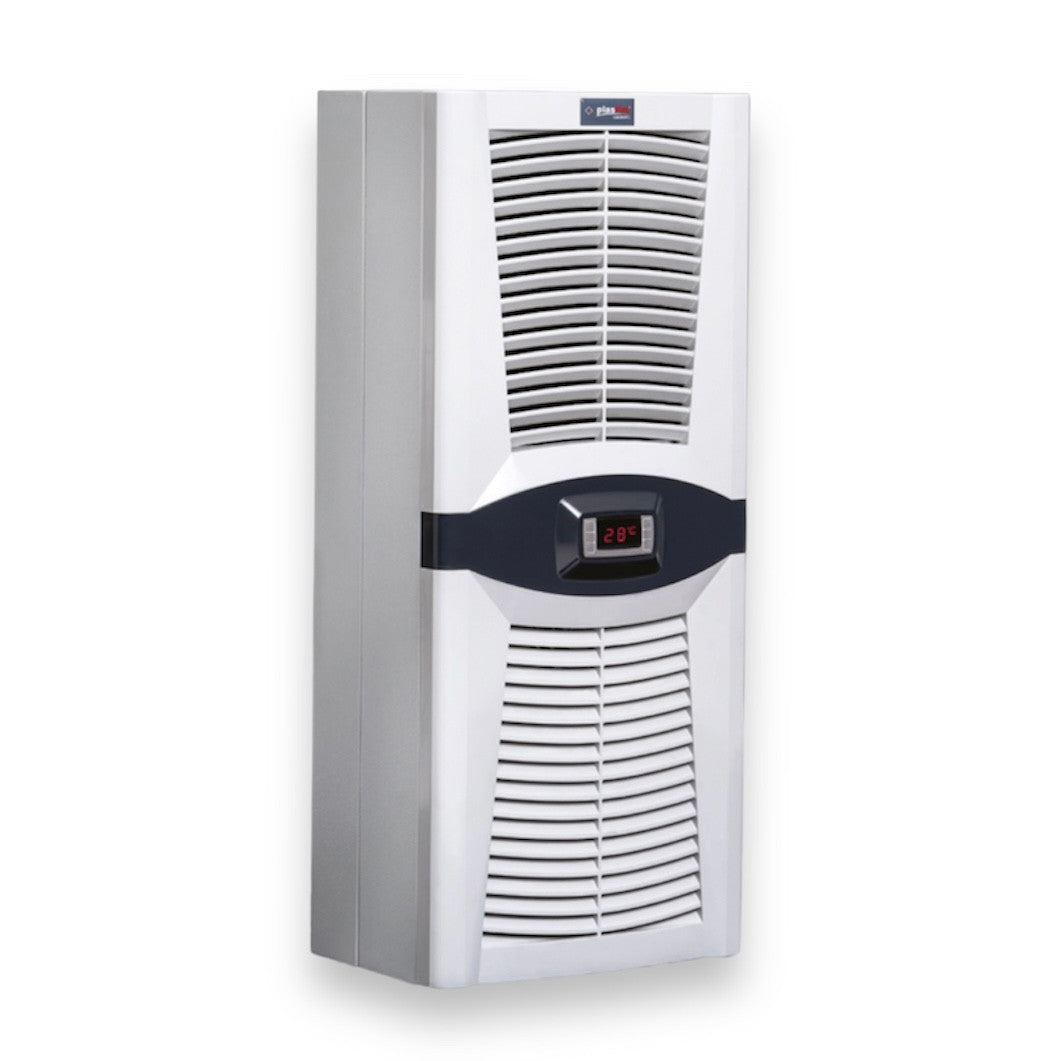

Air conditioning unit "Design Series" for distribution/cooler panels 1100 Watt / 3800BTU for side or wall mounting of distribution and automation panels.
The air conditioning unit PAD1100.01 (PLASTIM) for electrical panels is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the electrical panel door.
It includes everything necessary for the installation of air conditioning for the cabinet - seals, exhaust pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD1100.01 |
| Cooling capacity L35 / L35 | 1100W / 3800BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 7.2A |
| Operating current | 2.5A |
| Safety | 10A |
| Energy consumption | 575W |
| Operational range | 0-55 °C |
| Factory setting of the thermostat | 35 °C |
| Differential | 4 °C |
| Max. Air Volume Internal Circuit | 340 m³/h |
| Max. Air Volume External Circuit | 590 m³/h |
| Refrigerant agent | R134a |
| Amount of refrigerant | 310gr |

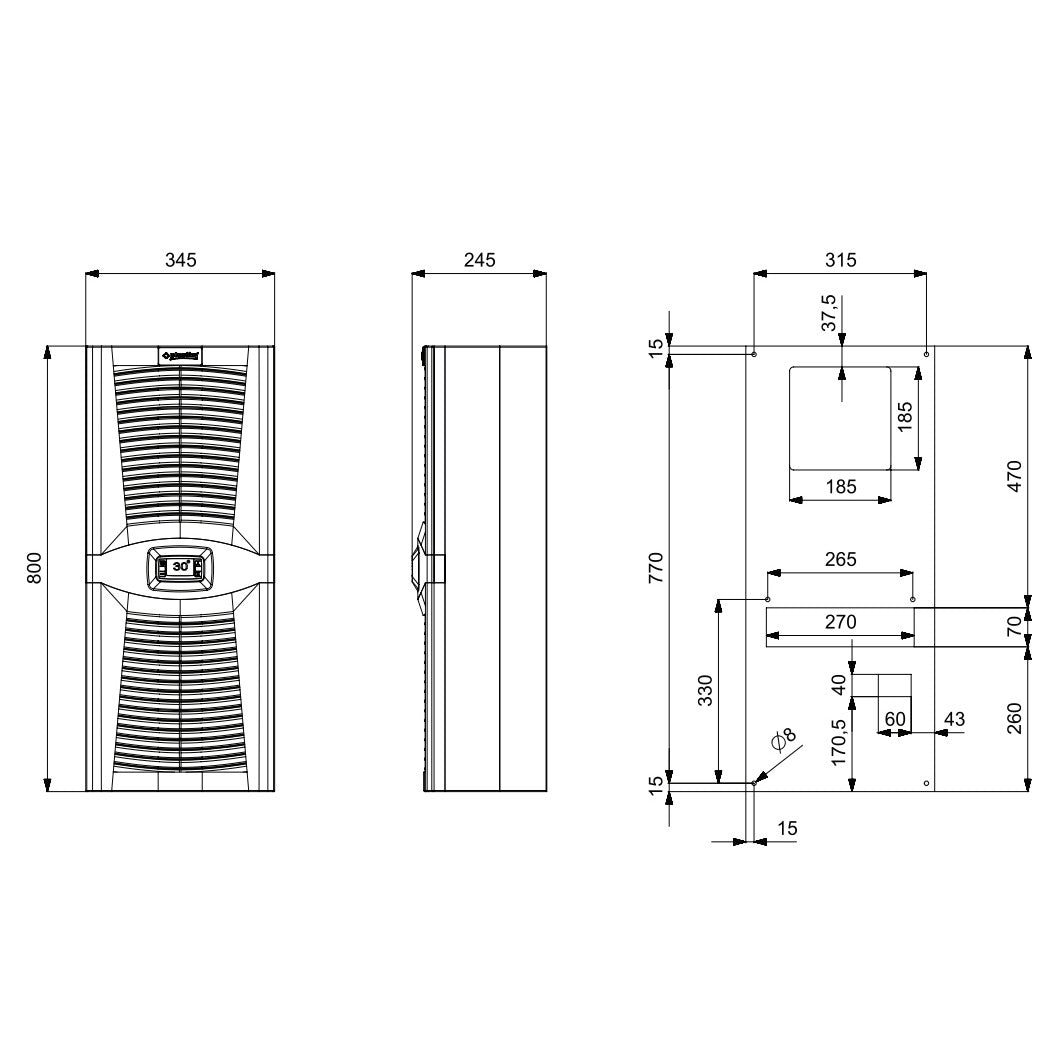

| Dimensions | 800x345x223mm |
| Weight | 32kg |
| Sound level | 76dB |
| Protection degree (internal circuit) | IP 54 |
| Protection degree (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
Online Payment by Card - after completing the order, you will be redirected to the payment gateway, and payment confirmation will be sent to you by email.
Refund - payment according to payment instructions will be made to the transport company driver.
By Bank Transfer - you will receive by email, no later than the next business day, a proforma invoice that will contain the account number to be used for payment.
On Invoice - this payment method is available to partners who have concluded a framework agreement with our company. If you want to use the last two payment methods, please contact our manager, who will provide you with instructions on how to obtain an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty and complies with all EU requirements.
We also offer free delivery for orders over 508 RON, and a flexible system of discounts and promotions. The technical knowledge and experience of our employees allow us to provide high-quality consulting and, if necessary, to offer alternatives for electrotechnical products.
The electrical equipment we provide meets high quality standards, has a 24-month warranty, and complies with all European Union requirements.
In the case of a complaint, the return of products is not charged.
