Air conditioner for distribution boards / Cooler 1600W, PAD1600.01, Plastim
- Regular price
- 9.921,60 lei
- Regular price
-
- Sale price
- 9.921,60 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

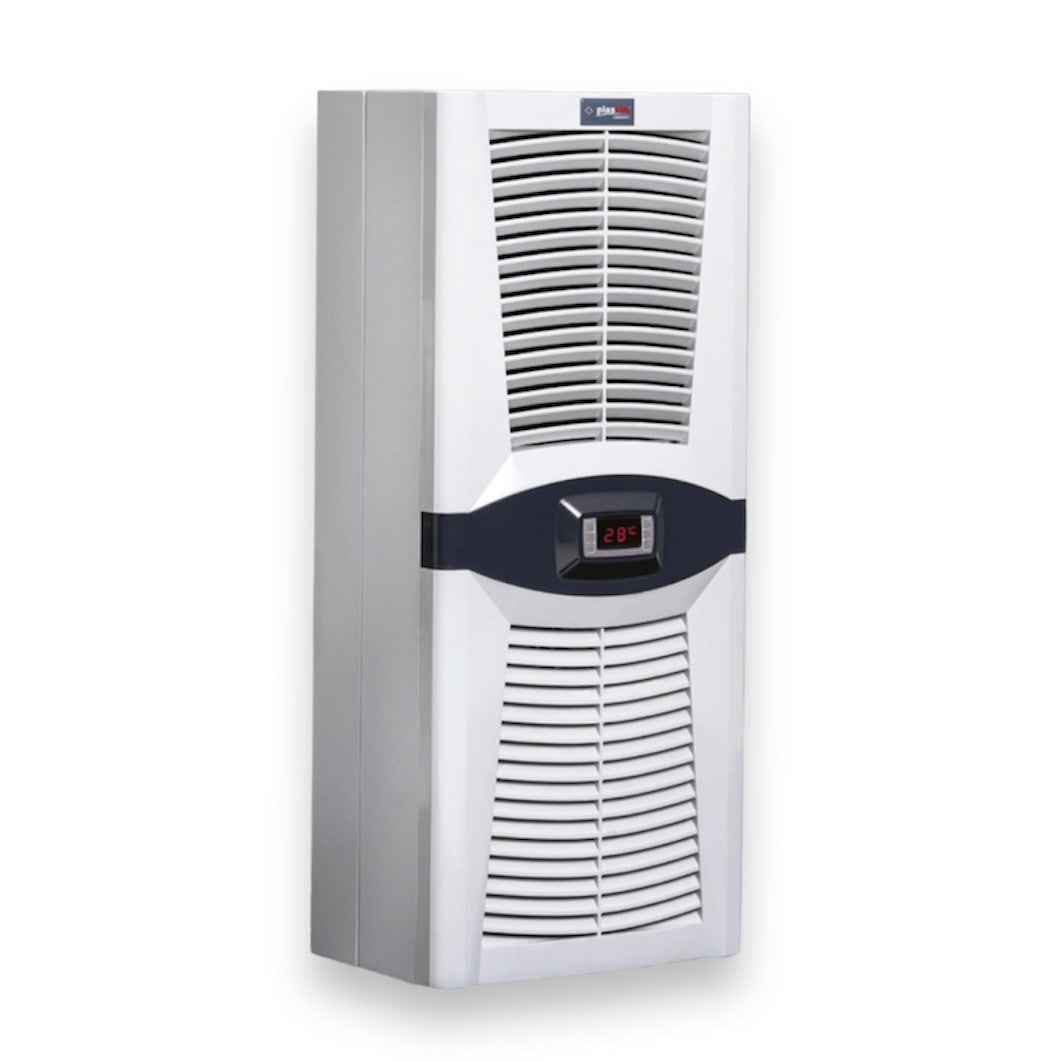

Air conditioning unit for the distribution panel / cooler 1600 watts (Design Series) for side or wall-mounted distribution and automation panels.
The air conditioning unit for the electrical panel PAD1600.01 (PLASTIM) features a state-of-the-art open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the electrical panel door.
It includes everything necessary for the installation of air conditioning for the cabinet - seals, exhaust pipe, mounting screws, power connector.
|
TECHNICAL DETAILS |
PAD1600.01 |
|
Cooling capacity L35 / L35 |
1600W / 5500BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting current |
8A |
|
Operating current |
3.2A |
|
Safety |
10A |
|
Energy consumption |
725W |
|
Operational range |
0-55 °C |
|
Factory setting of the thermostat |
35 °C |
|
Differential |
4 °C |
|
Max. Air Volume Internal Circuit |
510 m³/h |
|
Max. Air Volume External Circuit |
510 m³/h |
|
Refrigerant agent |
R134a |
|
Amount of refrigerant |
600gr |
|

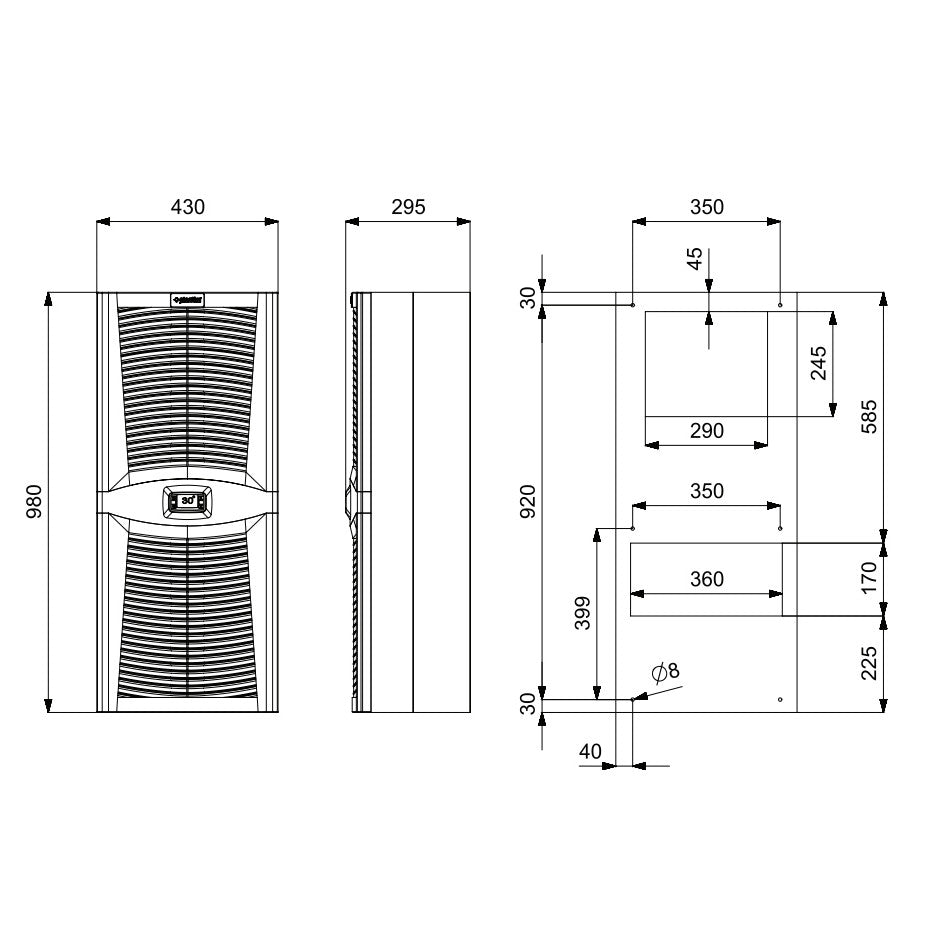

Dimensions |
980x430x270mm |
|
Weight |
45kg |
|
Sound level |
79dB |
|
Protection degree (internal circuit) |
IP 54 |
|
Protection degree (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting method |
Wall mounting |
