Air conditioner for distribution boards / Cooler 2100W, PAD2100.01, Plastim
- Regular price
- 11.424,80 lei
- Regular price
-
- Sale price
- 11.424,80 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

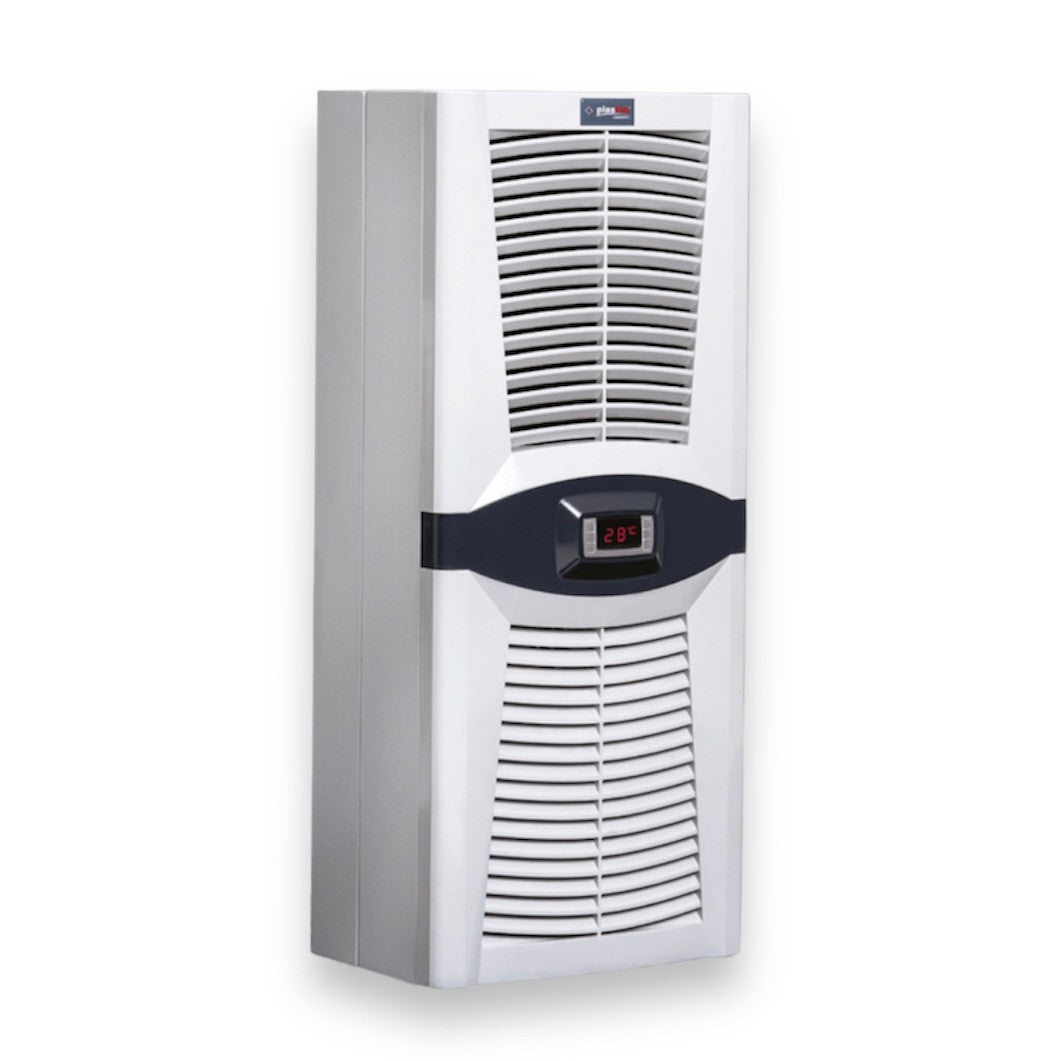

Air conditioning unit 'Design Series' for the distribution board / chiller 2500 Watt / 8550BTU for side or wall mounting of distribution boards and automation.
The air conditioning unit PAD2550.01 (PLASTIM) for distribution boards features a state-of-the-art open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the distribution board door.
It includes everything necessary for the installation of air conditioning for the cabinet - seals, exhaust pipe, mounting screws, power connector.
|
TECHNICAL DETAILS |
PAD2100.01 |
|
Cooling capacity L35 / L35 |
2100W / 7200BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting current |
10A |
|
Operating current |
3.8A |
|
Safety |
16A |
|
Energy consumption |
800W |
|
Operational range |
0-55 °C |
|
Factory setting of the thermostat |
35 °C |
|
Differential |
4 °C |
|
Max. Air Volume Internal Circuit |
510 m³/h |
|
Max. Air Volume External Circuit |
625 m³/h |
|
Refrigerant agent |
R134a |
|
Amount of refrigerant |
700gr |
|

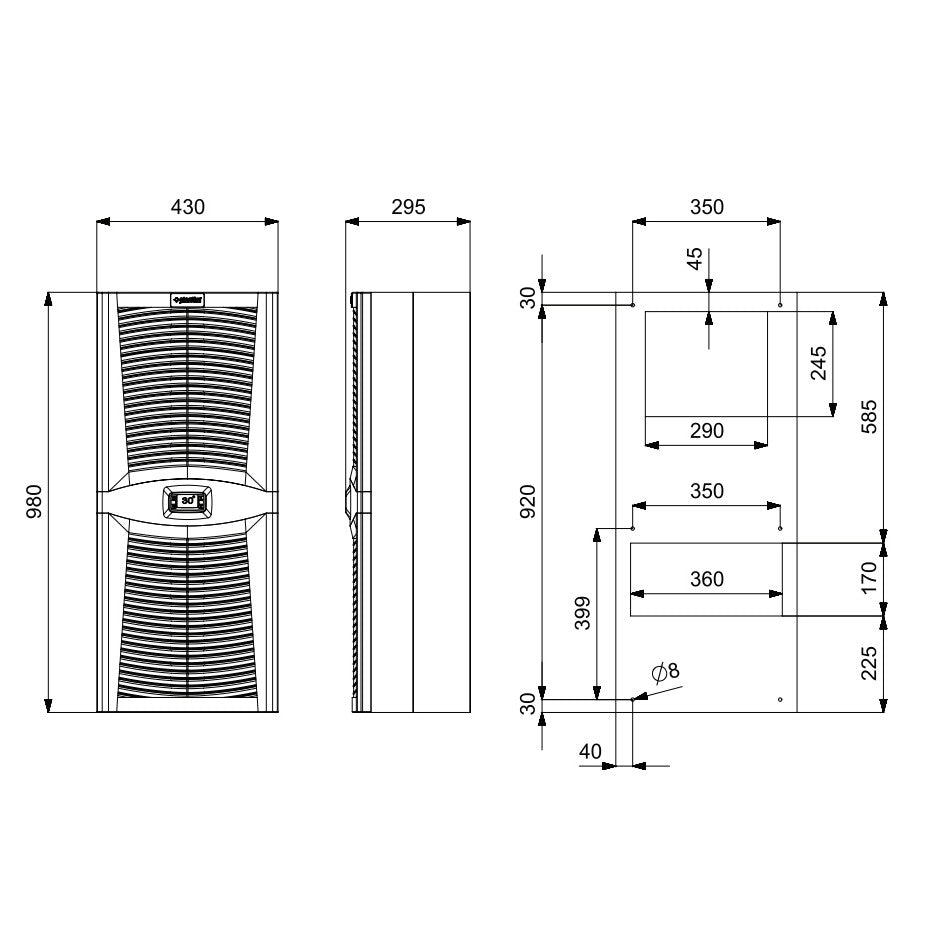

Dimensions |
980x430x270mm |
|
Weight |
46kg |
|
Sound level |
80dB |
|
Protection degree (internal circuit) |
IP 54 |
|
Protection degree (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting method |
Wall mounting |
