Air conditioner for distribution boards / Cooler 380W, PAD0380.01, Plastim
- Regular price
- 5.993,00 lei
- Regular price
-
- Sale price
- 5.993,00 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

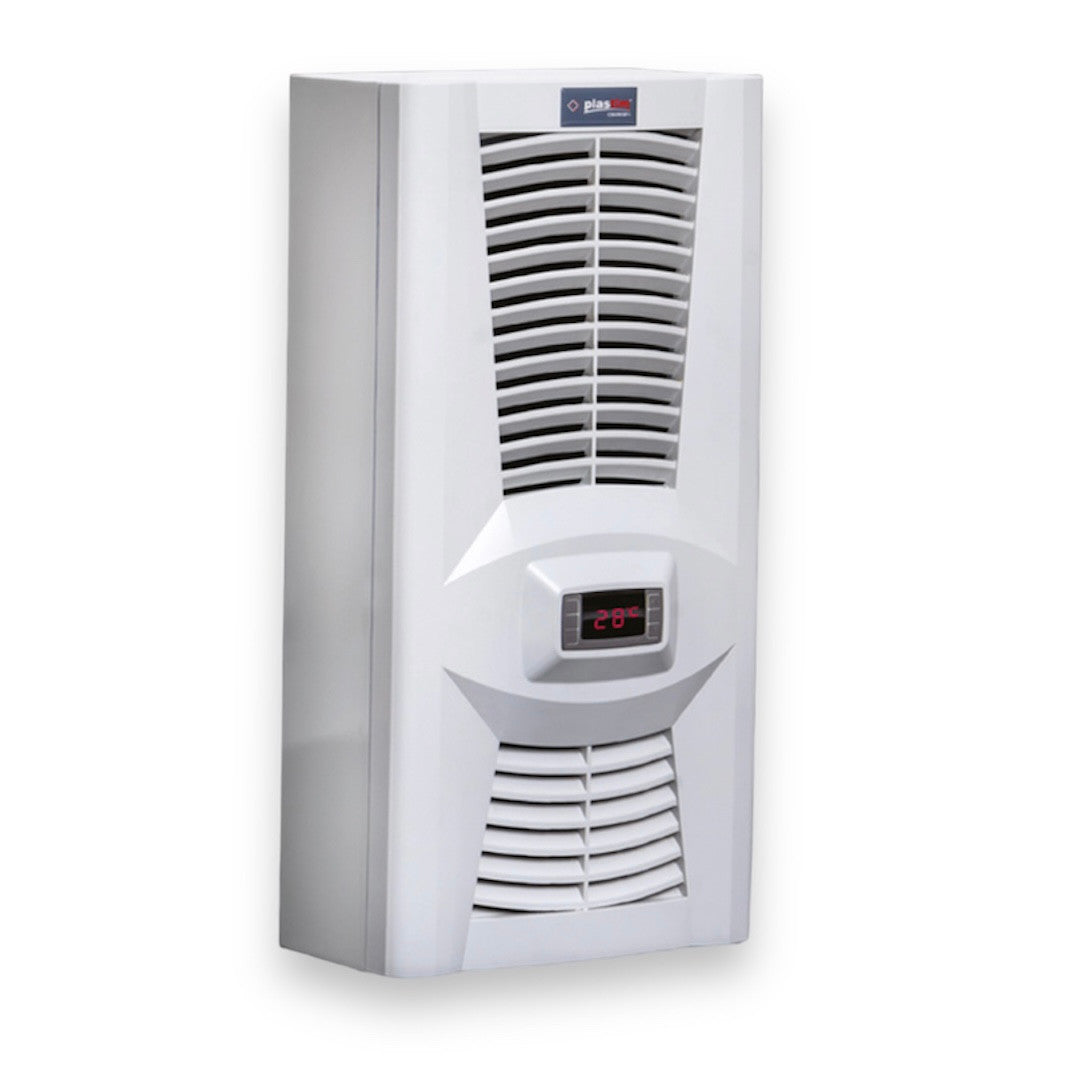

Air conditioning unit "Design Series" for distribution boards / chiller 380 Watt / 1300 BTU for distribution boards and side or wall-mounted automation.
The air conditioning unit PAD0380.01 (PLASTIM) for distribution boards has a state-of-the-art open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the distribution board door.
It includes everything necessary for the installation of air conditioning for the cabinet - seals, exhaust pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0380.01 |
| Cooling capacity L35 / L35 | 380W / 1300BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 3.7A |
| Operating current | 1.1A |
| Safety | 5A |
| Energy consumption | 325W |
| Operational range | 0-55 °C |
| Factory setting of the thermostat | 35 °C |
| Differential | 4 °C |
| Max. Air Volume Internal Circuit | 340 m³/h |
| Max. External Circuit Air Volume | 340 m³/h |
| Refrigerant agent | R134a |
| Amount of refrigerant | 120gr |
| Dimensions | 560x285x150mm |
| Weight | 15 kg |
| Sound level | 75dB |
| Protection degree (internal circuit) | IP 54 |
| Protection degree (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
