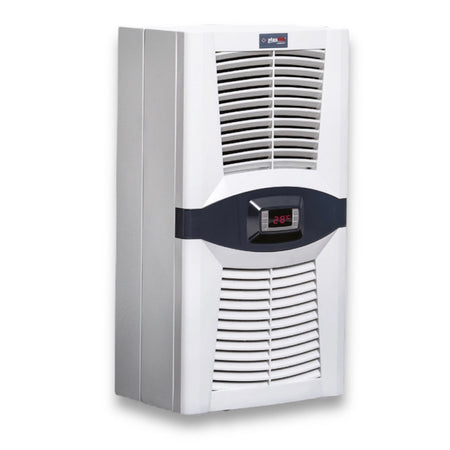

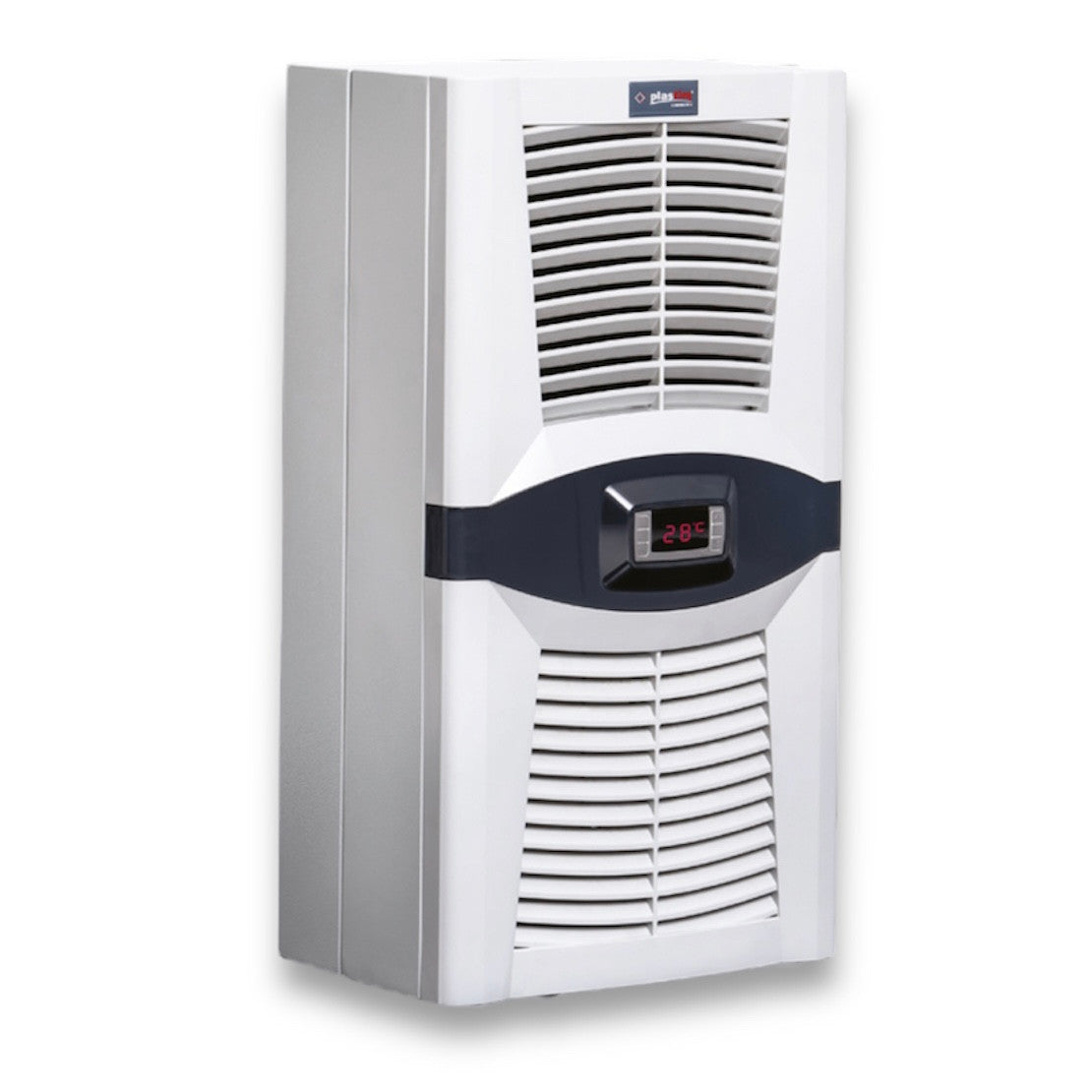

"Design Series" air conditioner for electrical enclosures / 550 Watt / 1900BTU cooler for the electrical enclosure and automation cabinet, side- or wall-mounted.
The PAD0550.01 (PLASTIM) electrical enclosure air conditioner features a state-of-the-art open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the electrical enclosure door.
Everything necessary for installing the electrical enclosure air conditioner is included—seals, drain hose, mounting screws, and power connector.
| TECHNICAL DATA | PAD0550.01 |
| Operating capacity L35 / L35 | 550W / 1900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 1.2A |
| Operating current | 1.1A |
| Fuse | 6A |
| Power consumption | 330W |
| Operating range | 0-55 ° |
| Factory thermostat settings | 35 ° |
| Differential | 4 ° |
| Max. air volume of the internal circuit | 340 m³/h |
| Max. air volume of the external circuit | 505 m³/h |
| Refrigerant type | R134a |
| Refrigerant quantity | 245gr |

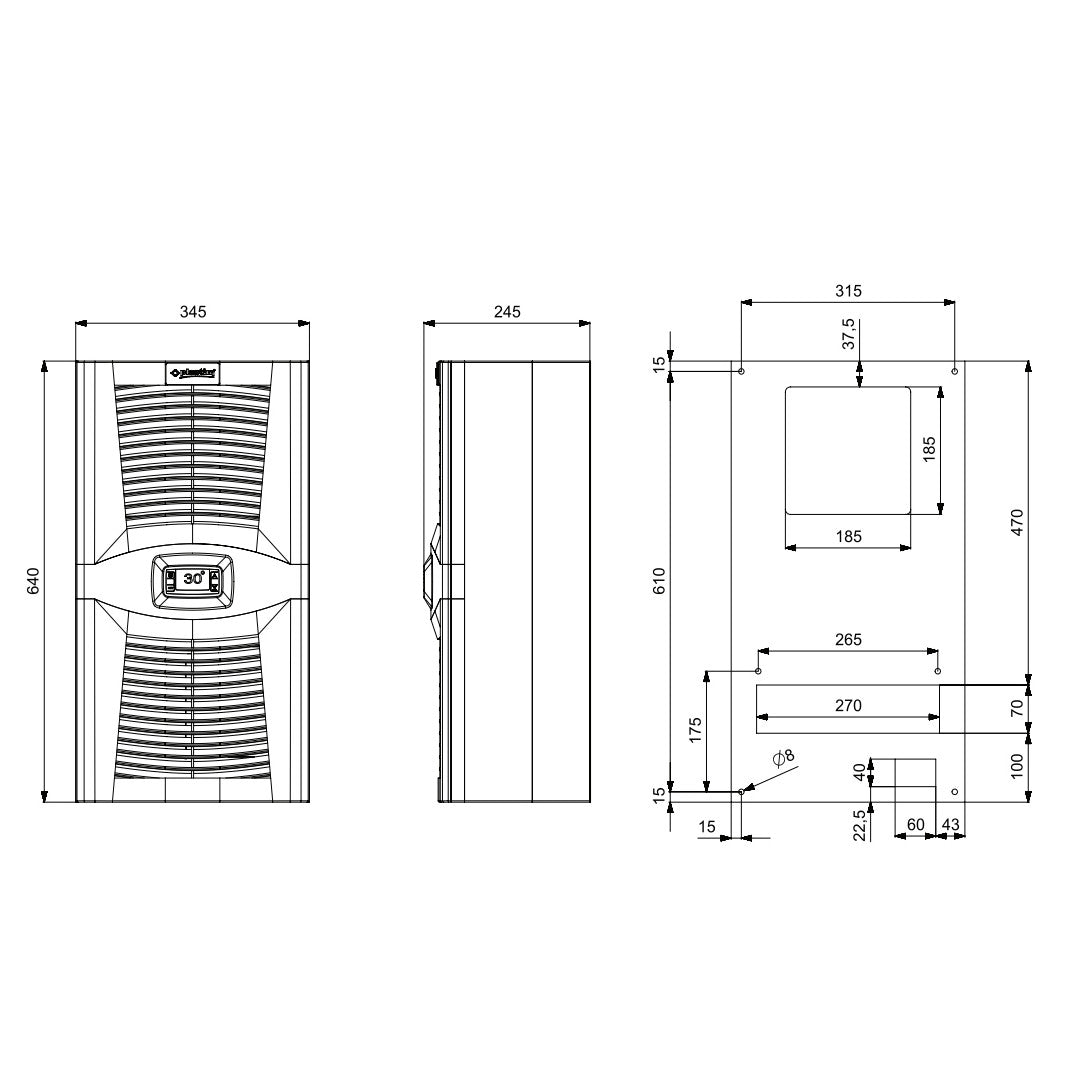

| Dimensions | 640x345x223mm |
| Weight | 27kg |
| Noise level | 76dB |
| Protection rating (internal circuit) | IP 54 |
| Protection rating (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
