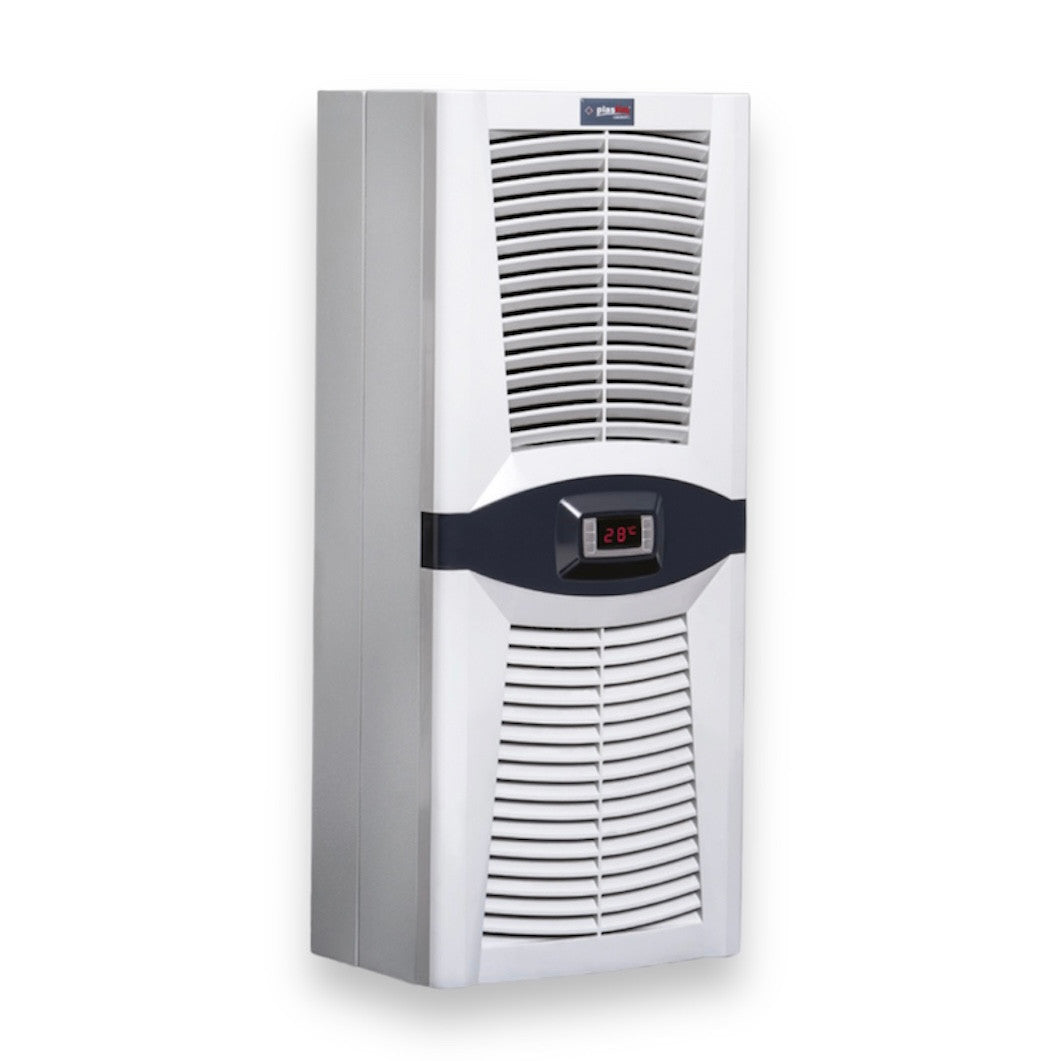

"Design Series" air conditioner for distribution boards / 850 Watt / 2990 BTU chiller for distribution and automation boards, side- or wall-mounted.
The PAD08500.01 (PLASTIM) electrical cabinet air conditioner is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the electrical cabinet door.
Everything required to install the cabinet air conditioner is included—seals, drain pipe, mounting screws, and power connector.
| TECHNICAL DATA | PAD0850.01 |
| Cooling capacity L35 / L35 | 850W / 2900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 6A |
| Operating current | 1.7A |
| Fuse | 10A |
| Power consumption | 394W |
| Operating range | 0-55 °C |
| Factory thermostat settings | 35 °C |
| Differential | 4 °C |
| Max. air volume of the internal circuit | 340 m³/h |
| Max. air volume of the external circuit | 505 m³/h |
| Refrigerant type | R134a |
| Refrigerant charge | 290gr |
| Dimensions | 800x345x223mm |
| Weight | 30kg |
| Noise level | 76dB |
| Degree of protection (internal circuit) | IP 54 |
| Degree of protection (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
