Vendor: TENSE

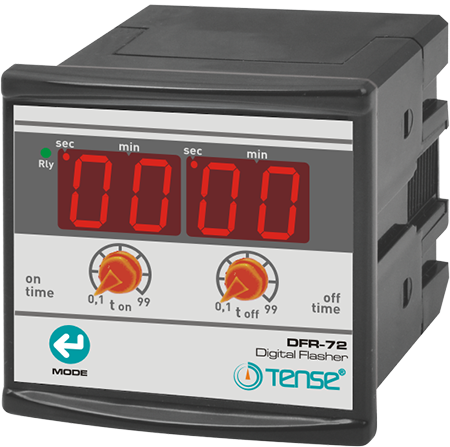

Asymmetric 2×2 LED Display for Panel/Door Mounting 230VAC

Barcode: DFR-72
222,79 lei 184,12 lei excl. VAT
222,79 lei 184,12 lei excl. VAT
Low stock: 2 left
  • Description
  • Instructions
  • Payment methods
  • Warranty

Asymmetrical cycler / 2×2 LED time cycling relay - 230VAC panel

Product description

The asymmetrical time cycling relay is designed for the periodic starting and stopping of electrical loads, such as light fixtures, fans, pumps, or signaling devices.

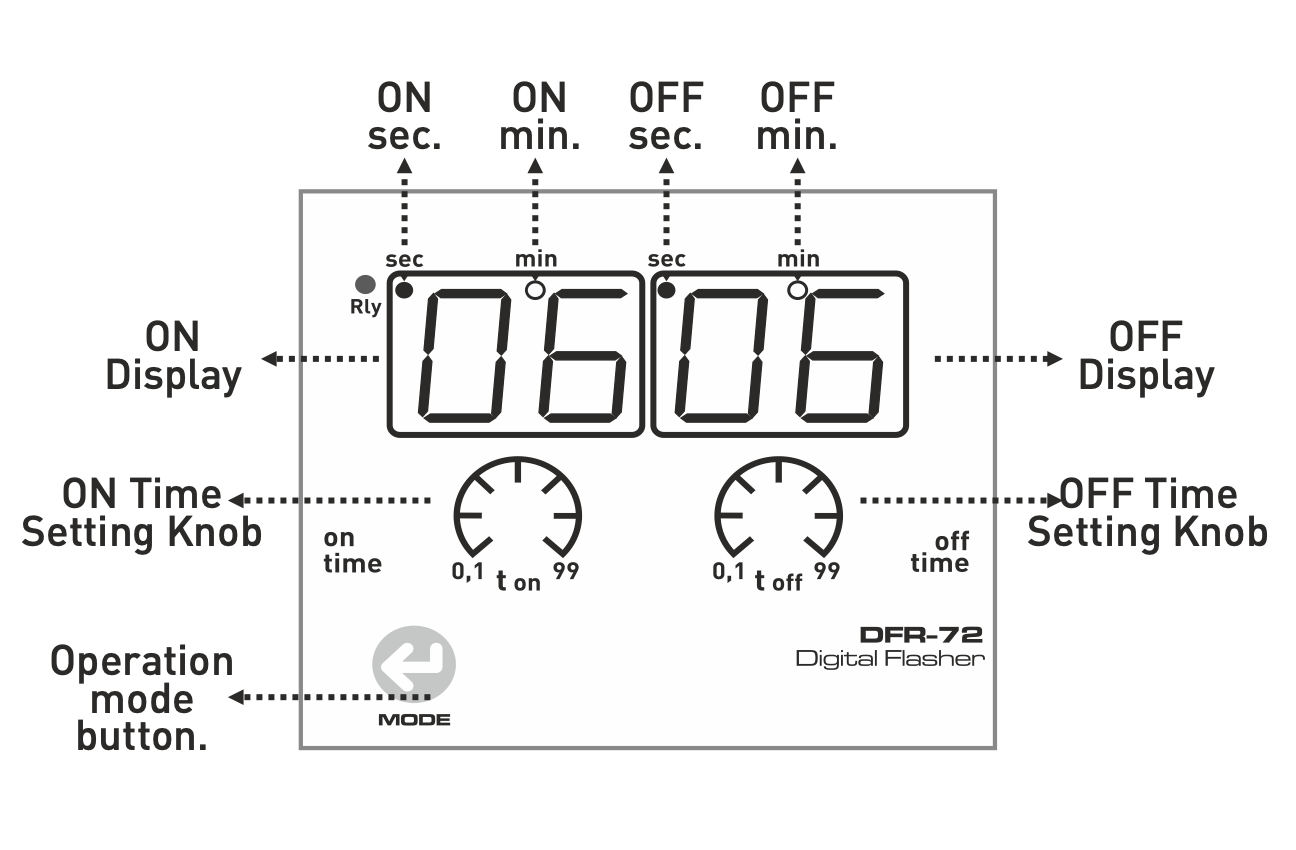

The relay has a dual LED display that shows the pulse and pause times and supports Blinkr mode at the beginning of a pulse and Blinkr mode at the beginning of a pause.
Both the symmetrical and asymmetrical cycle can be set, allowing flexible use in industrial and household applications.

Key features

  • Periodic switching of the load in cycles

  • Symmetrical or asymmetrical cycle

  • Flashing modes: at the beginning of the pulse / at the beginning of the pause

  • Dual LED display for easy configuration and monitoring of times

  • Switchable output contact - option to start the cycle with a pulse or a pause

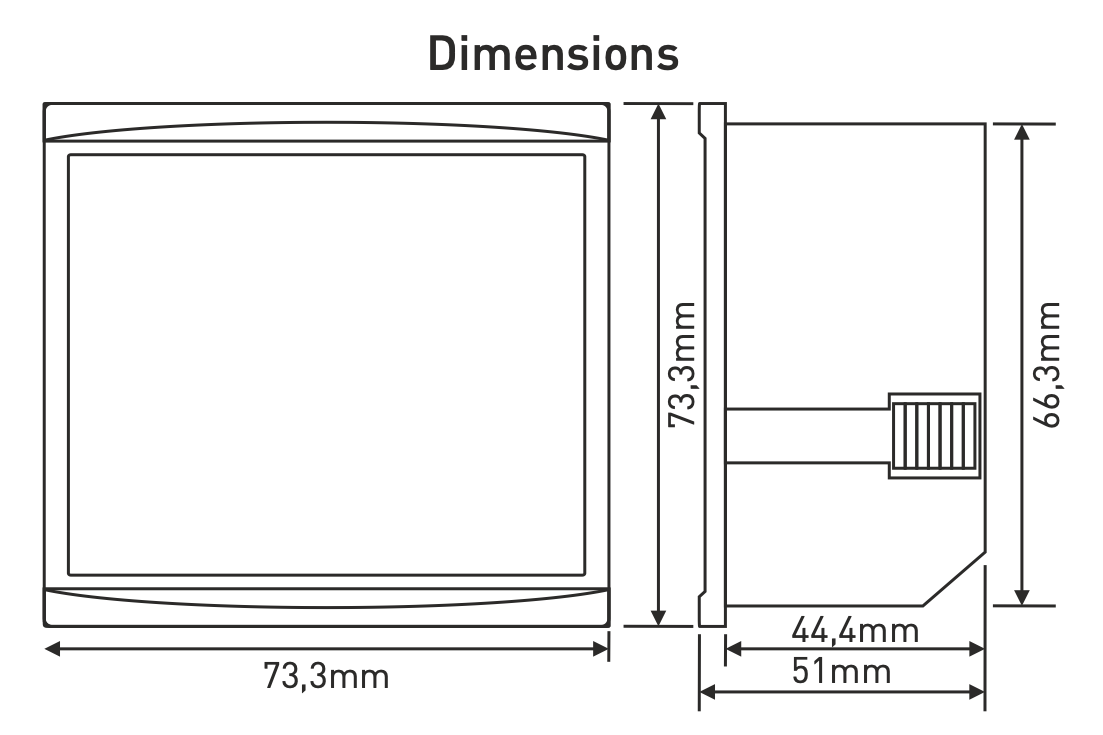

  • Suitable for mounting on a 48×48 mm panel

  • Power supply: 230 VAC

Application

  • Cyclic lighting and ventilation

  • Emergency flashing light and audible alarms

  • Automatic opening and closing of windows

  • Gradual start-up of electrical equipment when current/power is limited

  • Rotation of advertising panels

  • Industrial monitoring and control systems

Advantages

  • Clear configuration thanks to the dual LED display

  • Flexible adjustment of pulse and pause times

  • Versatile use for household and industrial applications

  • Simple and quick installation

Installation

  • Panel or cabinet door installation

  • Standard opening 48×48 mm
