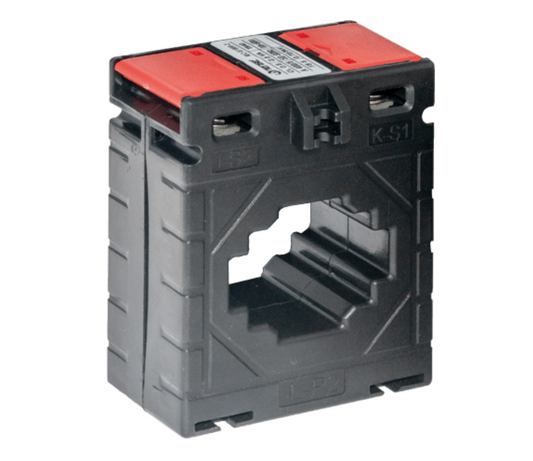

– ONKA Current transformer – CURRENT TRANSFORMER 1200/5A, 100MM, CLASS 0.5S, 10VA (TK10012005307 / 80011773)
- Regular price
- 199,99 lei 165,28 lei excl. VAT
- Regular price
-
- Sale price
- 199,99 lei 165,28 lei excl. VAT
- Unit price
- per

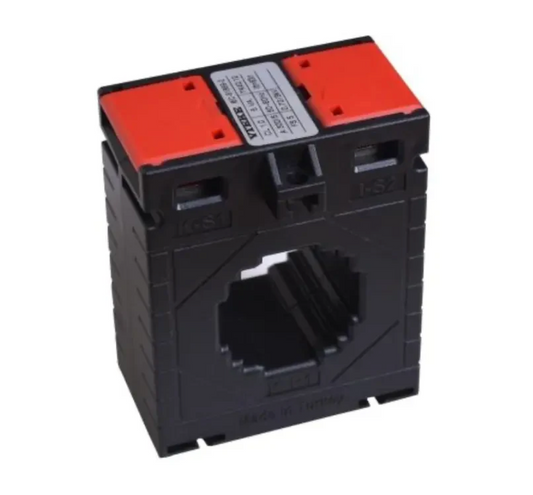

– ONKA Current transformer – CURRENT TRANSFORMER 600/5A, 60MM, CLASS 0.5S, 5VA (TK606005304 / 80011767)
- Regular price
- 135,99 lei 112,39 lei excl. VAT
- Regular price
-
- Sale price
- 135,99 lei 112,39 lei excl. VAT
- Unit price
- per
– ONKA Current transformer – ONKA Current transformer – CURRENT TRANSFORMER 150/5A, 44/20 (31), CLASS 1, 2.5VA (CK201505103 / 80010994)
- Regular price
- 61,60 lei 50,91 lei excl. VAT
- Regular price
-
- Sale price
- 61,60 lei 50,91 lei excl. VAT
- Unit price
- per
TK30 – Current transformer 150/5 200/5 250/5 300/5 400/5 500/5 600/5 – 150/5
- Regular price
- 84,00 lei 69,42 lei excl. VAT
- Regular price
-
- Sale price
- 84,00 lei 69,42 lei excl. VAT
- Unit price
- per
TK30 – Current transformer 150/5 200/5 250/5 300/5 400/5 500/5 600/5 – 600/5
- Regular price
- 84,00 lei 69,42 lei excl. VAT
- Regular price
-
- Sale price
- 84,00 lei 69,42 lei excl. VAT
- Unit price
- per
TK30 – Current transformer 150/5 200/5 250/5 300/5 400/5 500/5 600/5 – 400/5
- Regular price
- 84,00 lei 69,42 lei excl. VAT
- Regular price
-
- Sale price
- 84,00 lei 69,42 lei excl. VAT
- Unit price
- per
TK30 – Current transformer 150/5 200/5 250/5 300/5 400/5 500/5 600/5 – 250/5
- Regular price
- 84,00 lei 69,42 lei excl. VAT
- Regular price
-
- Sale price
- 84,00 lei 69,42 lei excl. VAT
- Unit price
- per
– ONKA Current transformer – CURRENT TRANSFORMER 800/5A, 80MM, CLASS 0.5S, 10VA (TK808005307 / 80011768)
- Regular price
- 198,39 lei 163,96 lei excl. VAT
- Regular price
-
- Sale price
- 198,39 lei 163,96 lei excl. VAT
- Unit price
- per
TK40 – Current transformer 300/5 400/5 500/5 600/5 800/5 – 800/5
- Regular price
- 124,59 lei 102,97 lei excl. VAT
- Regular price
-
- Sale price
- 124,59 lei 102,97 lei excl. VAT
- Unit price
- per
TK40 – Current transformer 300/5 400/5 500/5 600/5 800/5 – 600/5
- Regular price
- 113,99 lei 94,21 lei excl. VAT
- Regular price
-
114,00 lei - Sale price
- 113,99 lei 94,21 lei excl. VAT
- Unit price
- per
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

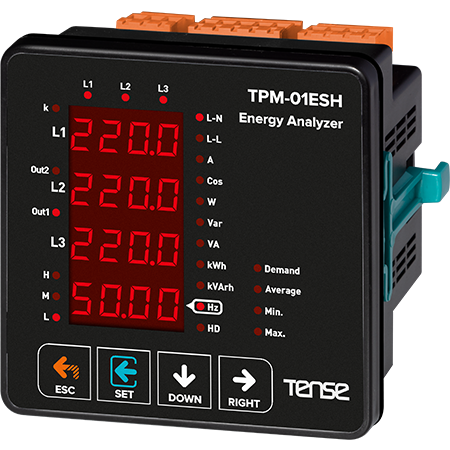

TPM-01ESH three-phase network analyzer - TENSE (Turkey)
Description:
Multifunctional digital panel meter for three-phase network parameters, designed for accurate measurement and monitoring of electrical values. It enables monitoring of current, voltage, frequency, power, and energy, with RS485 ModBus RTU communication capability.
Main functions
-
Three-phase voltage and current measurement
-
Indication of active, reactive, and apparent energy (P, Q, S)
-
Display of the Cosφ values and power factor of each phase
-
Measurement of the phase-to-neutral and phase-to-phase voltage and current of each phase
-
Frequency measurement
-
Voltage and current harmonics up to the 31st harmonic
-
Total imported and exported active energy values (ΣkWh)
-
Total inductive and capacitive reactive energy (ΣkVArh)
-
Display of minimum and maximum values and maximum demand
-
2 relay outputs and 1 digital input
-
Event logs (high/low voltage/current, unbalance, THD-I)
-
Password-protected menu
Technical features
-
Communication: RS485 ModBus RTU (1200-38400 bps)
-
Connection: three-phase voltage transformer and three-phase current transformer
-
Compatible current transformers: 60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5
-

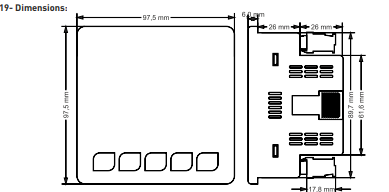

Panel size: standard digital panel mounting
Application
-
Monitoring three-phase electrical networks in industrial and commercial applications
-
Monitoring energy consumption and power quality
-
Integration into automation systems via ModBus RTU
