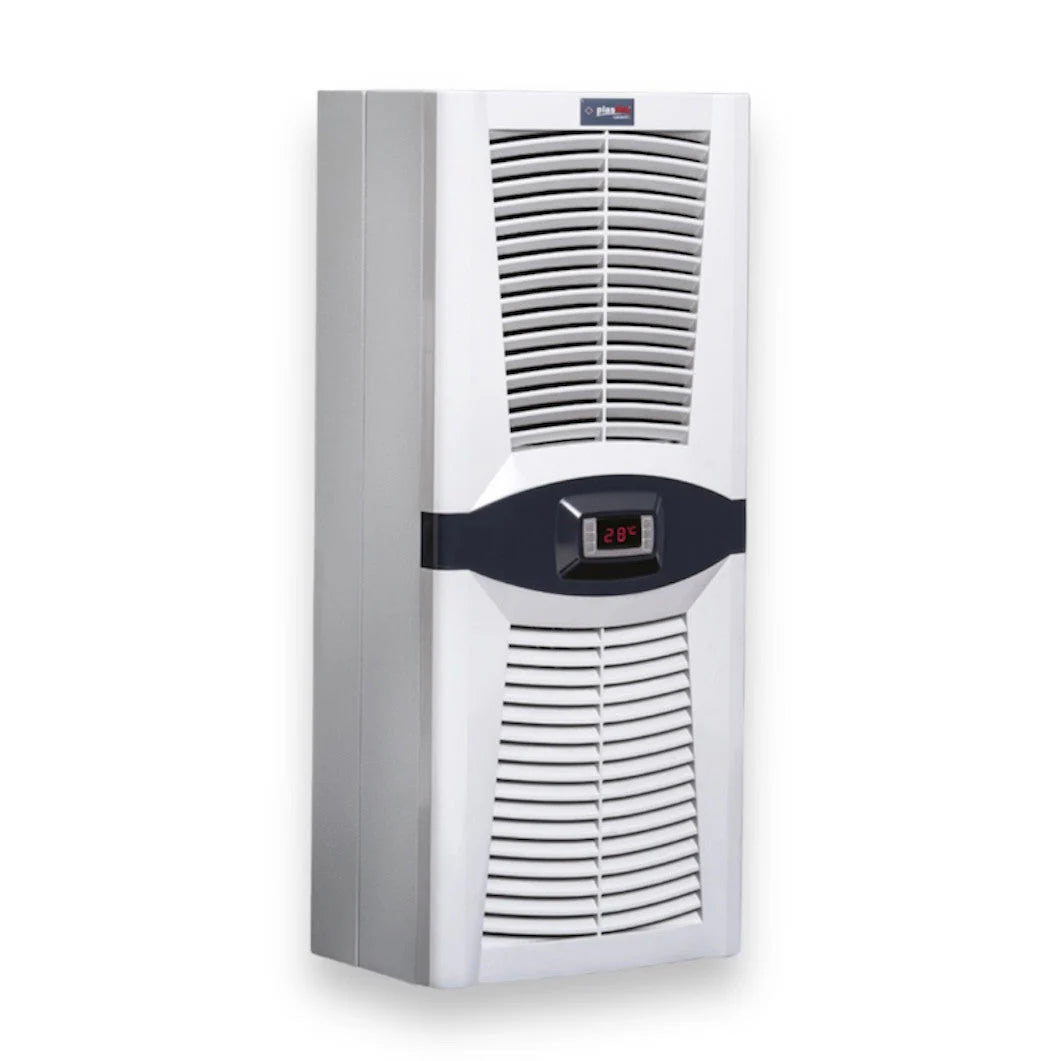

"Design Series" 3500-watt air conditioner / chiller for electrical distribution and automation cabinets, side- or wall-mounted.
The PAD3550.01 (PLASTIM) air conditioner for electrical distribution cabinets features a latest-generation open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the electrical distribution cabinet door.
Everything required to install the cabinet air conditioner is included—seals, drain pipe, mounting screws, and power connector.
TECHNICAL DETAILS |
PAD3550.01 |
Cooling capacity L35 / L35 |
3500W / 11970BTU |
Operating voltage |
230VAC |
Frequency |
50/60 Hz |
Starting current |
11A |
Operating current |
3.8A |
Fuse |
16A |
Power consumption |
800W |
Operating range |
0-55 °C |
Factory thermostat setting |
35 °C |
Differential |
4 °C |
Max. air volume, internal circuit |
510 m³/h |
Max. air volume, external circuit |
625 m³/h |
Refrigerant type |
R134a |
Refrigerant charge |
750gr |
Dimensions |
1200x430x270mm |
Weight |
47kg |
Sound level |
82dB |
Protection rating (internal circuit) |
IP 54 |
Protection rating (external circuit) |
IP 34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor type |
Rotary |
Fans |
EBMPAPST |
Mounting method |
Wall-mounted |
