Vendor: TENSE

Asymmetric Cycler - Blink at the start of a pulse, Blink at the start of a pause

Barcode: ERV-09
171,59 lei 141,81 lei excl. VAT
171,59 lei 141,81 lei excl. VAT
13 in stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

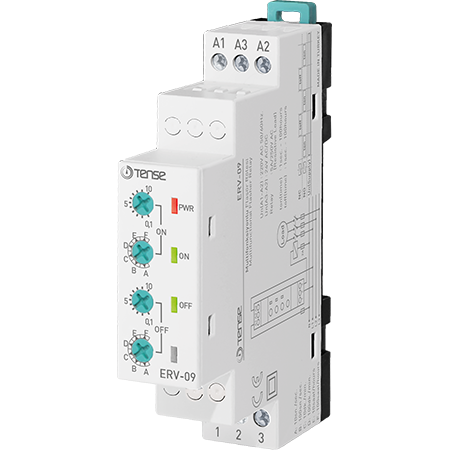

Time relay - Cyclic relay / Blinkr (symmetrical / asymmetrical cycle)

Product description

The cyclic time relay is designed for periodically switching electrical loads on and off, such as lights, fans, pumps, or signaling devices. It allows independent adjustment of the pulse and pause durations and operation in symmetrical or asymmetrical mode. It is suitable for control automation, ventilation, timed lighting, or advertising applications.

Main features

  • Cyclic operation with adjustable startup and pause times

  • Intermittent mode: at the beginning of a pulse or at the beginning of a pause

  • Symmetrical / asymmetrical operating cycle

  • Switchable output contact

  • Option to start the cycle with a pulse or a pause

  • Stable operation for automatic system control

  • Mounting on a 35 mm DIN rail

Application

  • Regular ventilation of rooms

  • Cyclic moisture drying

  • Control of advertising lighting and flashing signs

  • Control of circulation pumps

  • Periodic switching of ventilation or heating

  • Emergency light or sound signal

  • Gradual startup of electrical equipment when power is reduced

Advantages

  • Simple time setting

  • High versatility of use

  • Safe and reliable control of electrical circuits

  • Suitable for household and industrial control cabinets

Installation

  • Installation on a standard DIN rail measuring 35 mm
