Vendor: TENSE

Level switch / Level monitoring, discharge level indicator for the VSR-05 TENSE probe

Barcode: VSR-05
152,99 lei 126,44 lei excl. VAT
152,99 lei 126,44 lei excl. VAT
Low stock: 9 left

Frequently bought together

de06e037dbc494e38b025e8b975bdb5e

Float Level Switch for Clean Water (Filling, Draining), NO+NC, PVC  – 1.6 m

54,60 lei 45,12 lei excl. VAT
54,60 lei 45,12 lei excl. VAT
50e56a1777788c33f4848d8b1b776e3f

 – Stainless steel level probe in PVC housing for SSE-10 TENSE water level controller

24,60 lei 20,33 lei excl. VAT
24,60 lei 20,33 lei excl. VAT
  • Description
  • Instructions
  • Payment methods
  • Warranty

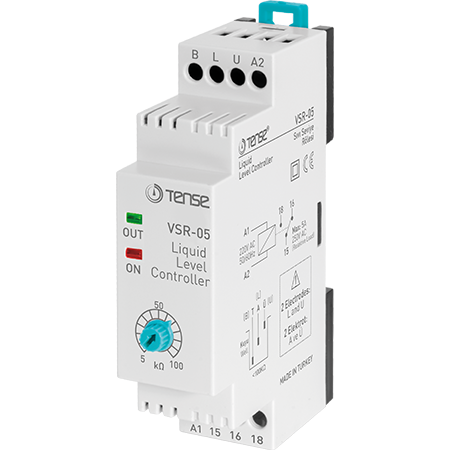

VSR-05 water level control relay - TENSE

Product description

The VSR-05 relay is designed for automatic control of water pumping or overpumping in tanks, wells, boreholes, or expansion tanks.

It supports the use of two or three level sensors and allows sensor sensitivity adjustment for precise pump control.

Main functions

  • Water level control in tanks, wells, boreholes, and expansion tanks

  • Supports two or three level sensors

  • Sensor sensitivity adjustment for precise control

  • Pump protection with a recommended 2A circuit breaker (2 pieces)

  • Terminal connection for easy installation

Technical specifications

  • Rated voltage: 220 V AC

  • Operating voltage range: 170-260 V AC

  • Operating frequency: 50/60 Hz

  • Operating power: < 3 VA

  • Operating temperature: -10 °C ... +50 °C

  • Dimensions: 22.5 × 75 × 85 mm

  • Weight: 250 g

Recommended accessories

  • Level sensors (2 or 3 pieces, depending on the wiring)

  • 2A circuit breakers for protecting the input and output channels (2 pieces)

Application

  • Automatic starting and stopping of pumps

  • Controlling water pumping between tanks

  • Maintaining the optimal water level in expansion tanks

  • Ideal for household and industrial applications
