Vendor: OPAS

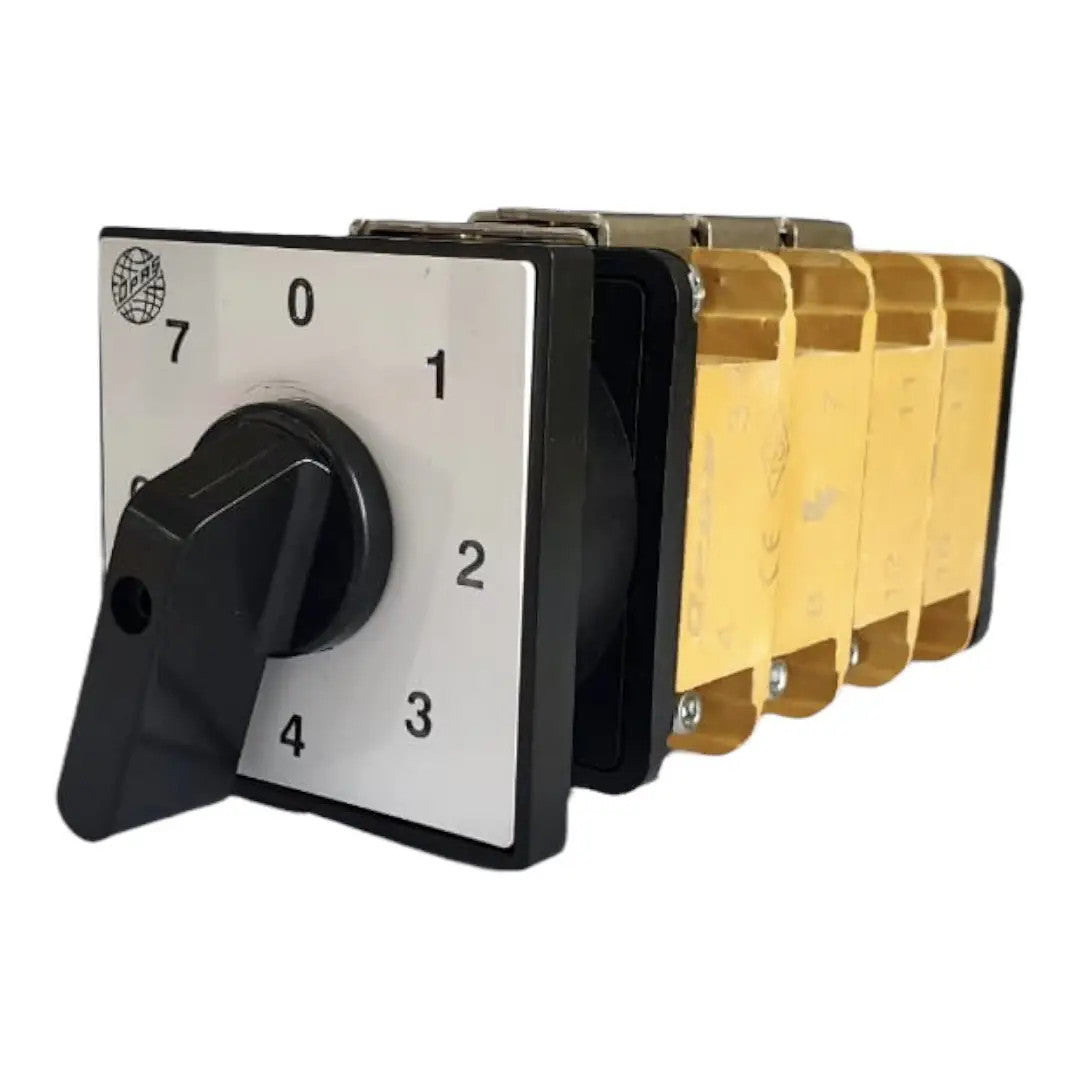

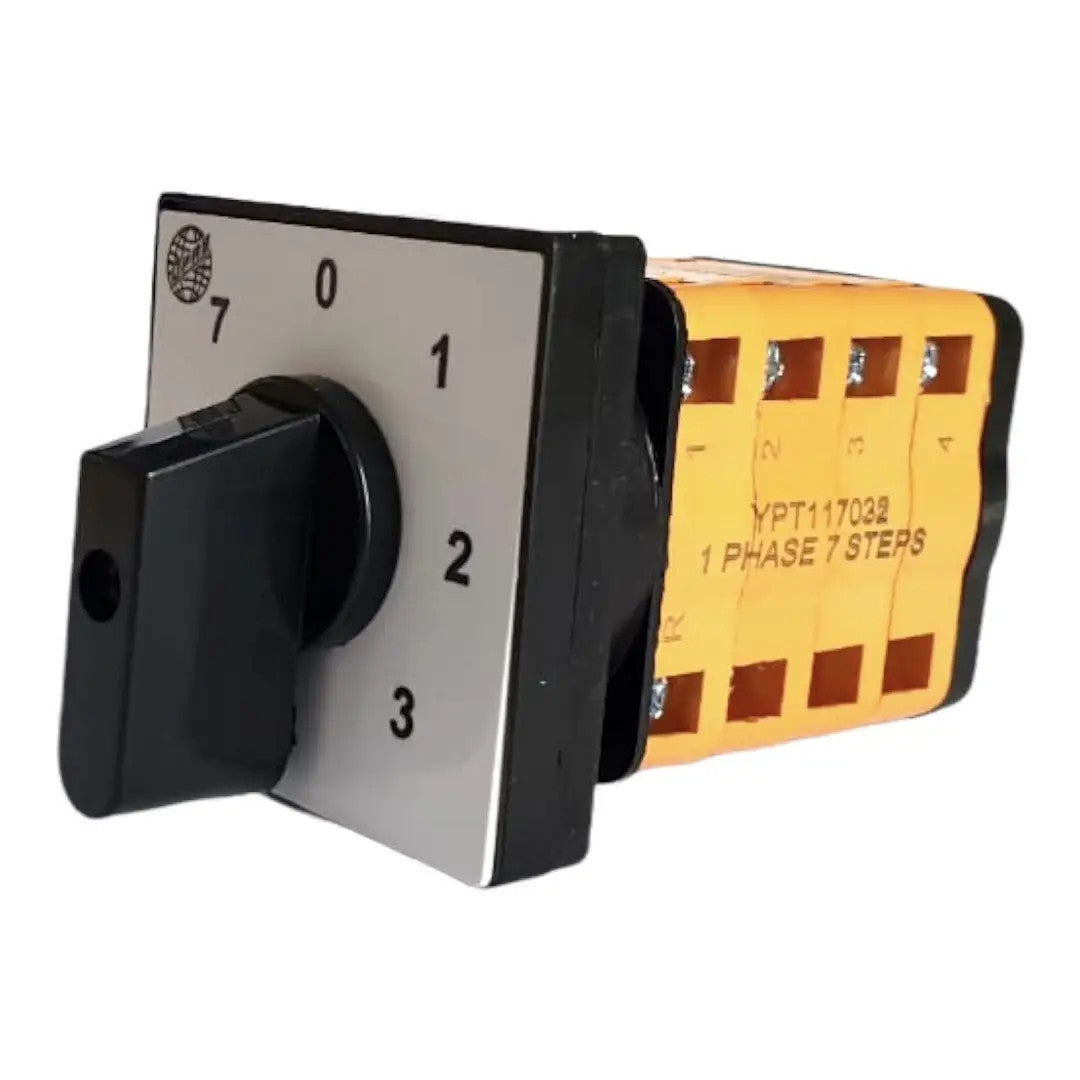

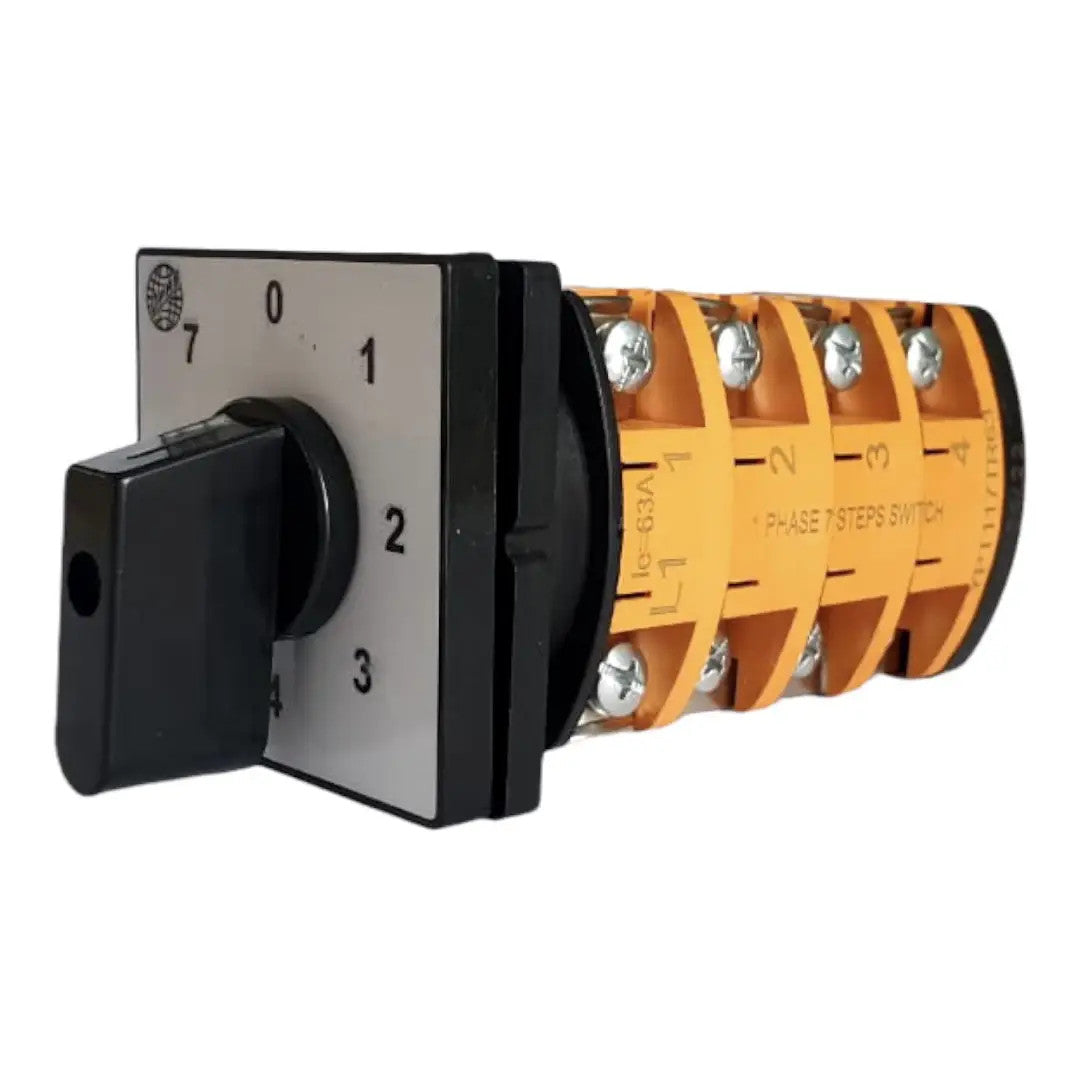

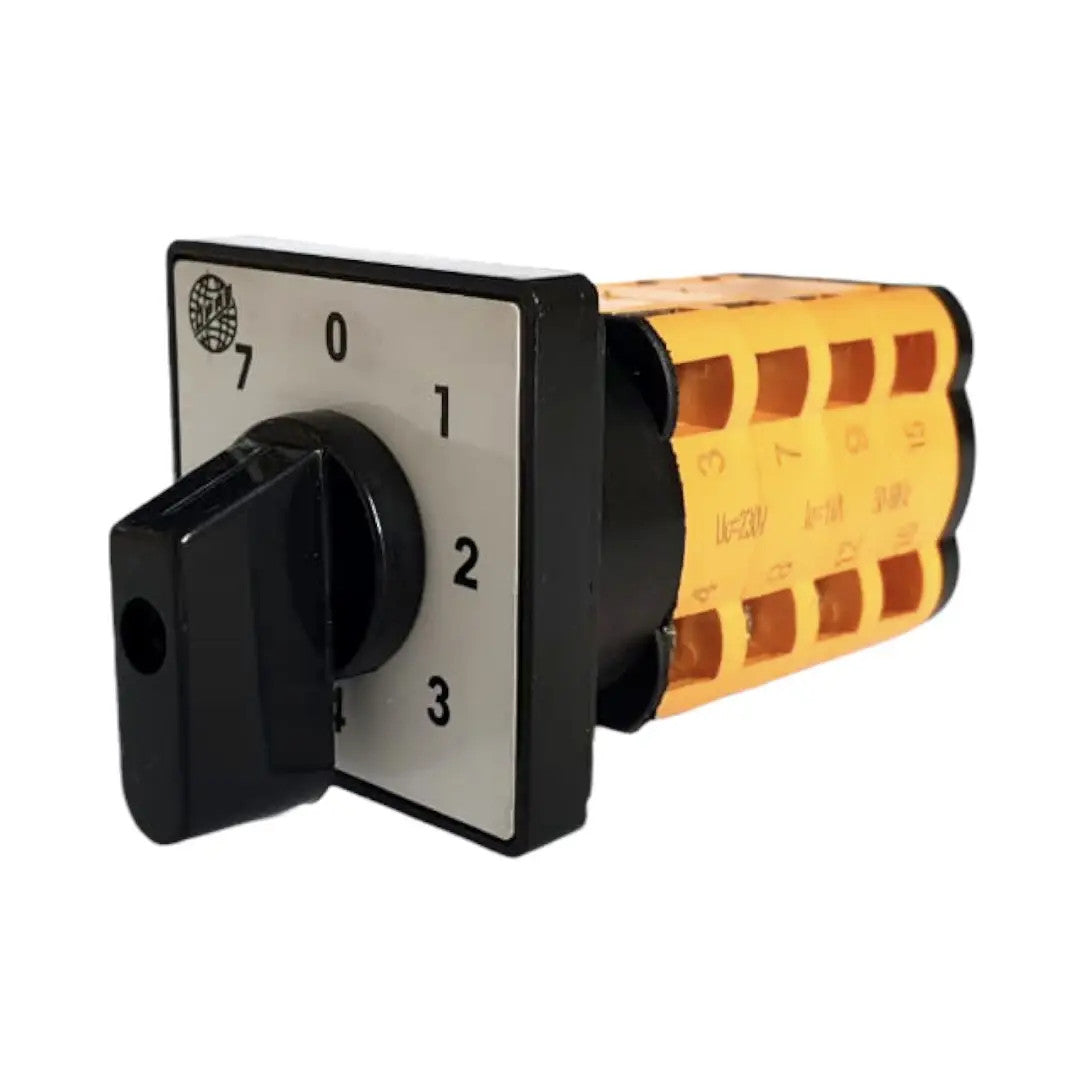

Step switch 0-1-2-3-4-5-6-7 rotary switch, 1 pole, 10-160A

Barcode: YPT117010
134,80 lei
134,80 lei
Low stock: 5 left
Number of poles: 1 pole
Brand: 10A
  • Description
  • Instructions
  • Payment methods
  • Warranty

Comutator pas cu pas 0-1-2-3-4-5-6-7, comutator rotativ, 1 pol, 10-160A, producător YPT117 OPAȘ (Turcia)

  • 10A, 16A, 25A, 32A, 40A, 63A, 100A

Comutatorul în trepte 0-1-2-3-4-5-6-7 poate fi utilizat, de exemplu, pentru a porni unul dintre mai multe aparate / moduri / etape ale programului de procesare etc.

Comutatoarele de pachete sunt concepute pentru comutarea manuală a circuitelor de joasă tensiune. Acestea sunt utilizate pentru realizarea circuitelor principale și de control, pornirea și oprirea motoarelor electrice și a altor dispozitive de putere redusă. Avantajele acestei serii de comutatoare sunt dimensiunea compactă, rezistența electrică și mecanică.

Schema multipoziție 0-1-2-3-4-5-6-7 este utilizată pentru comutarea între diferite moduri de funcționare a echipamentului (viteza de mișcare, temperatura de încălzire).

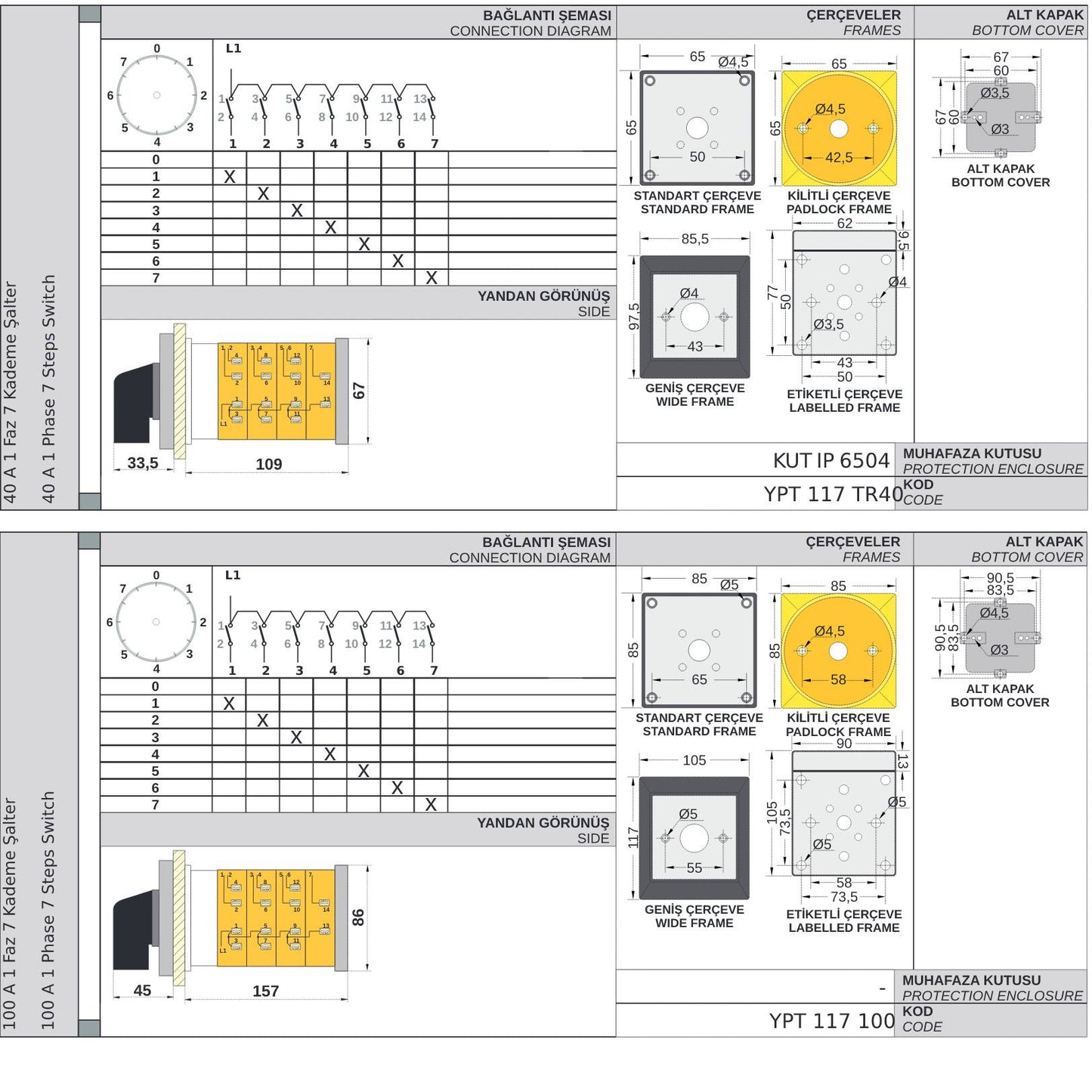

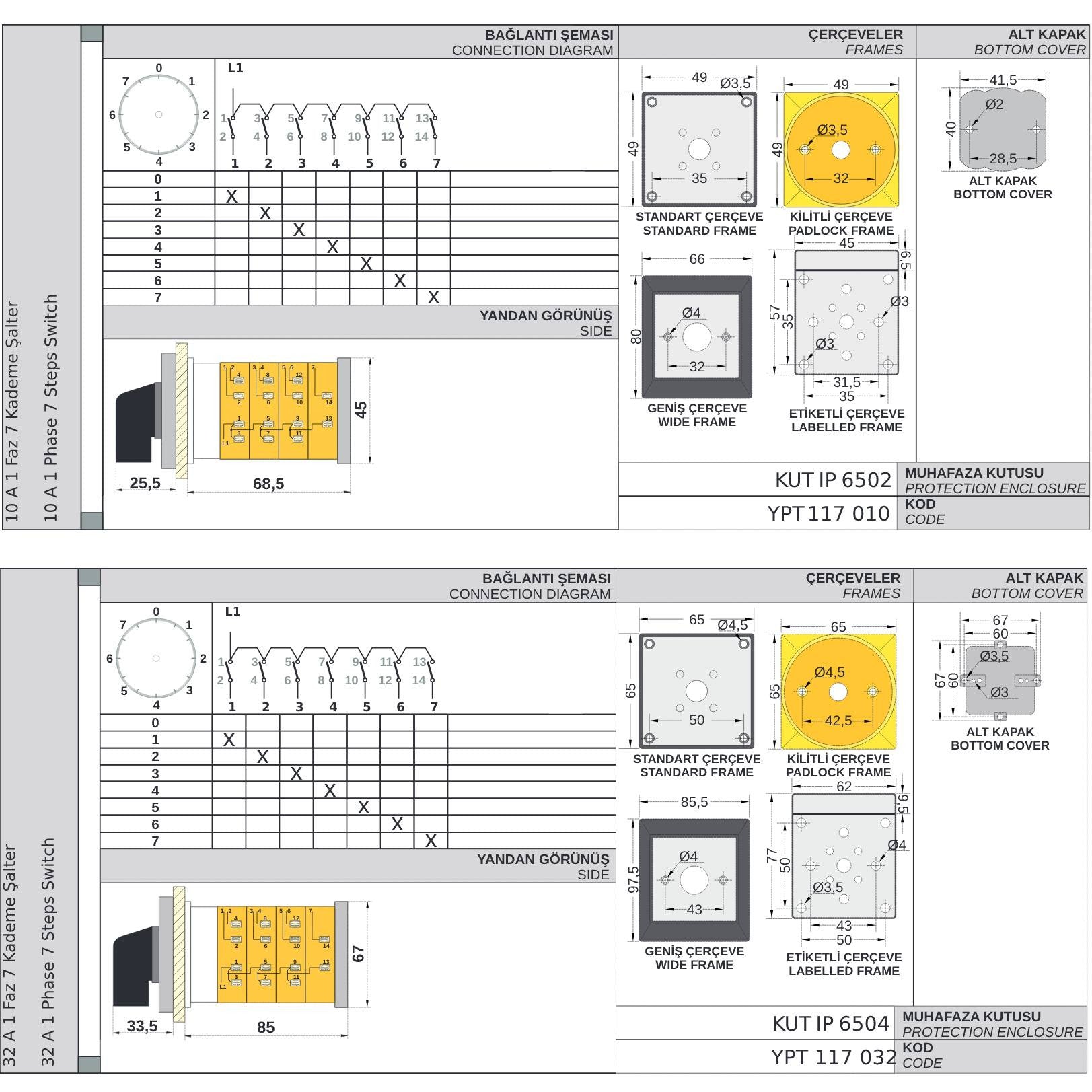

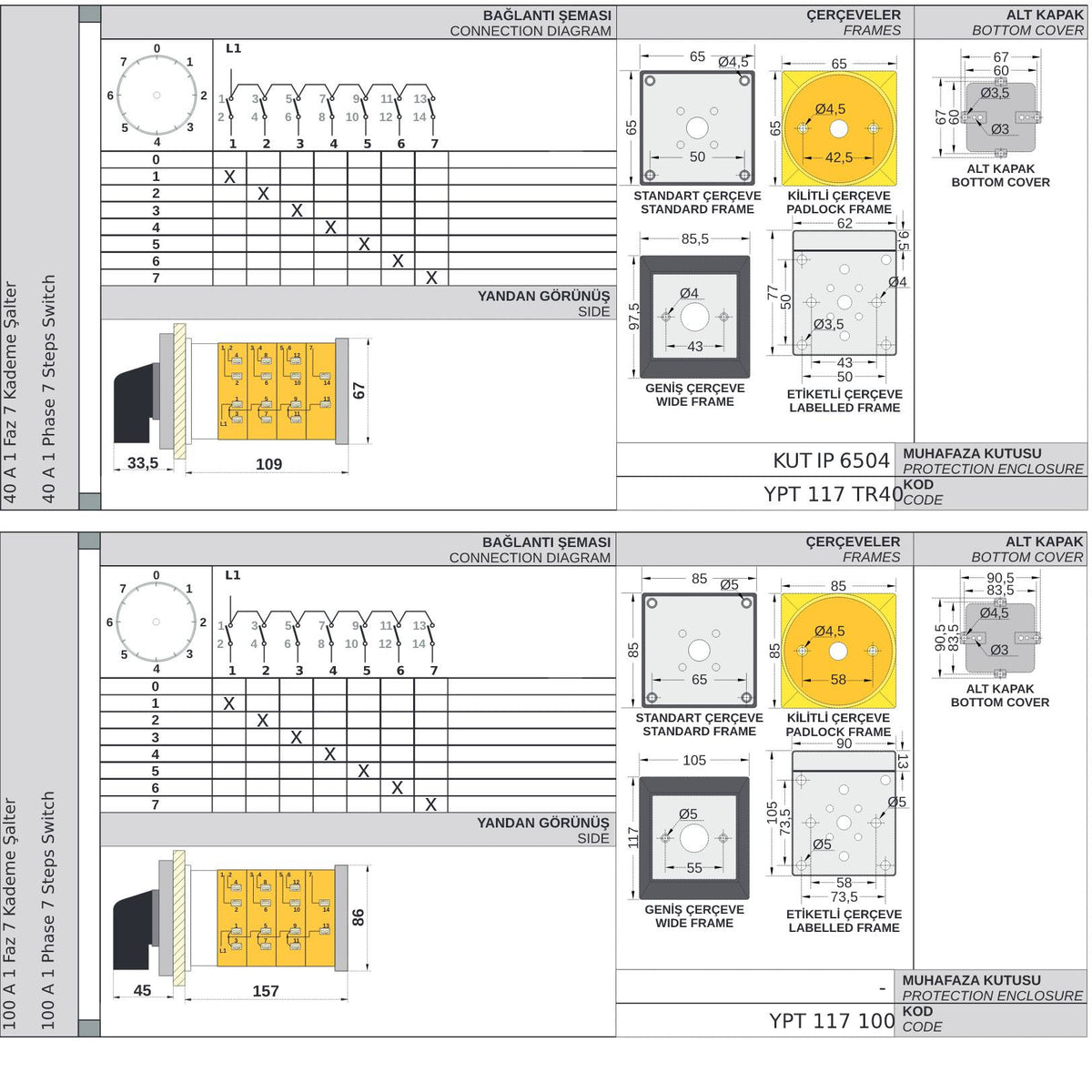

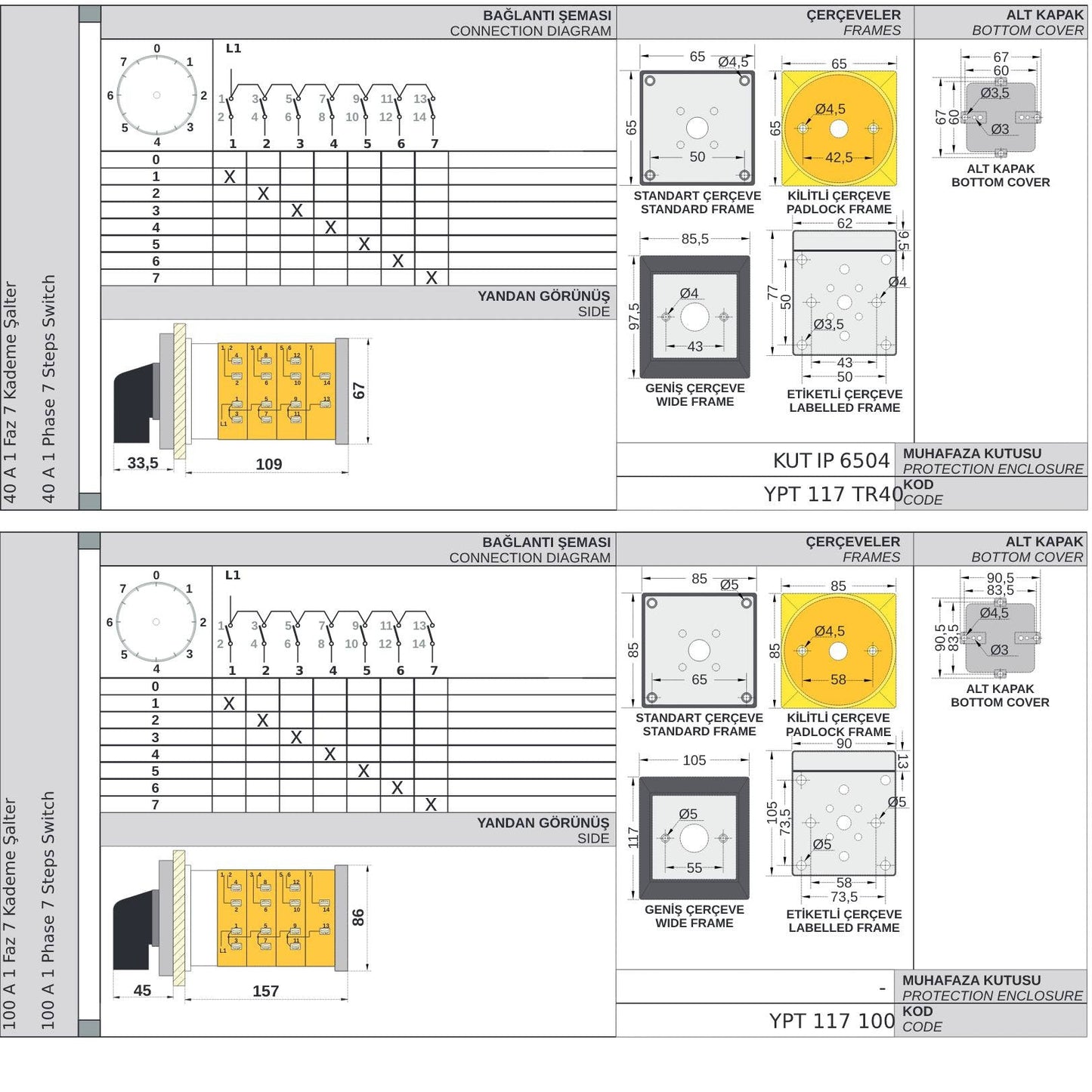

Specificații tehnice:

  • Design articulat.
  • Tip de dispozitiv: Comutator rotativ

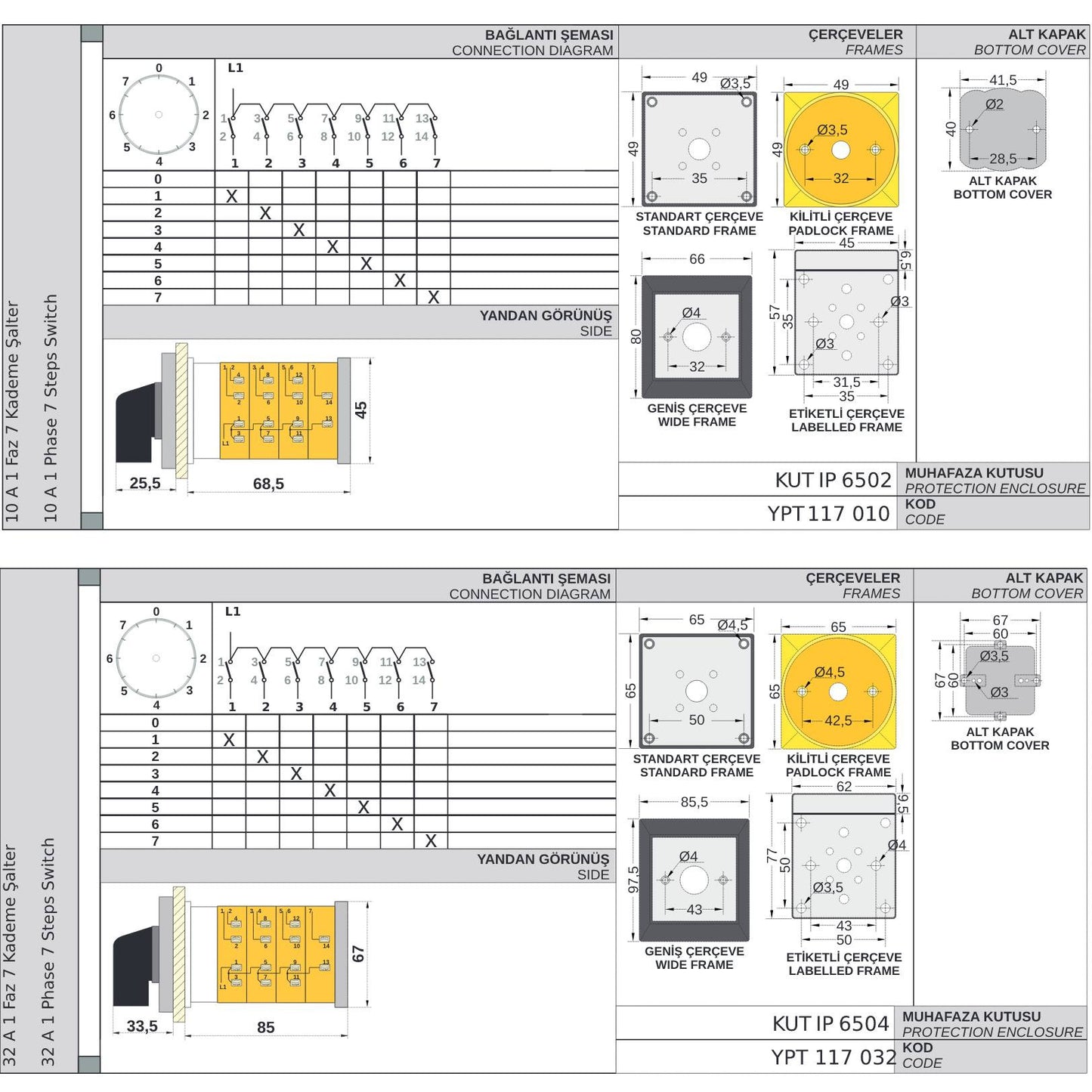

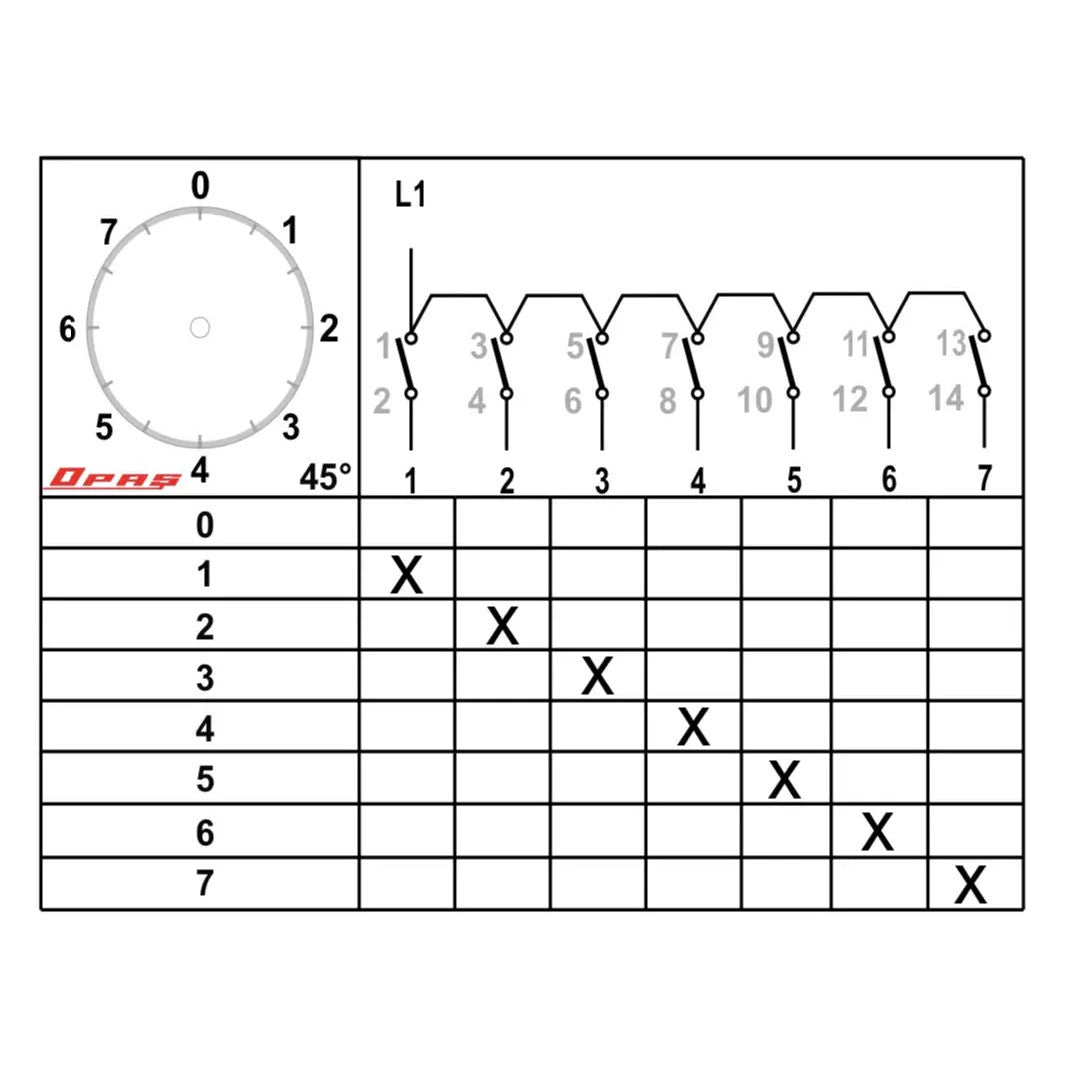

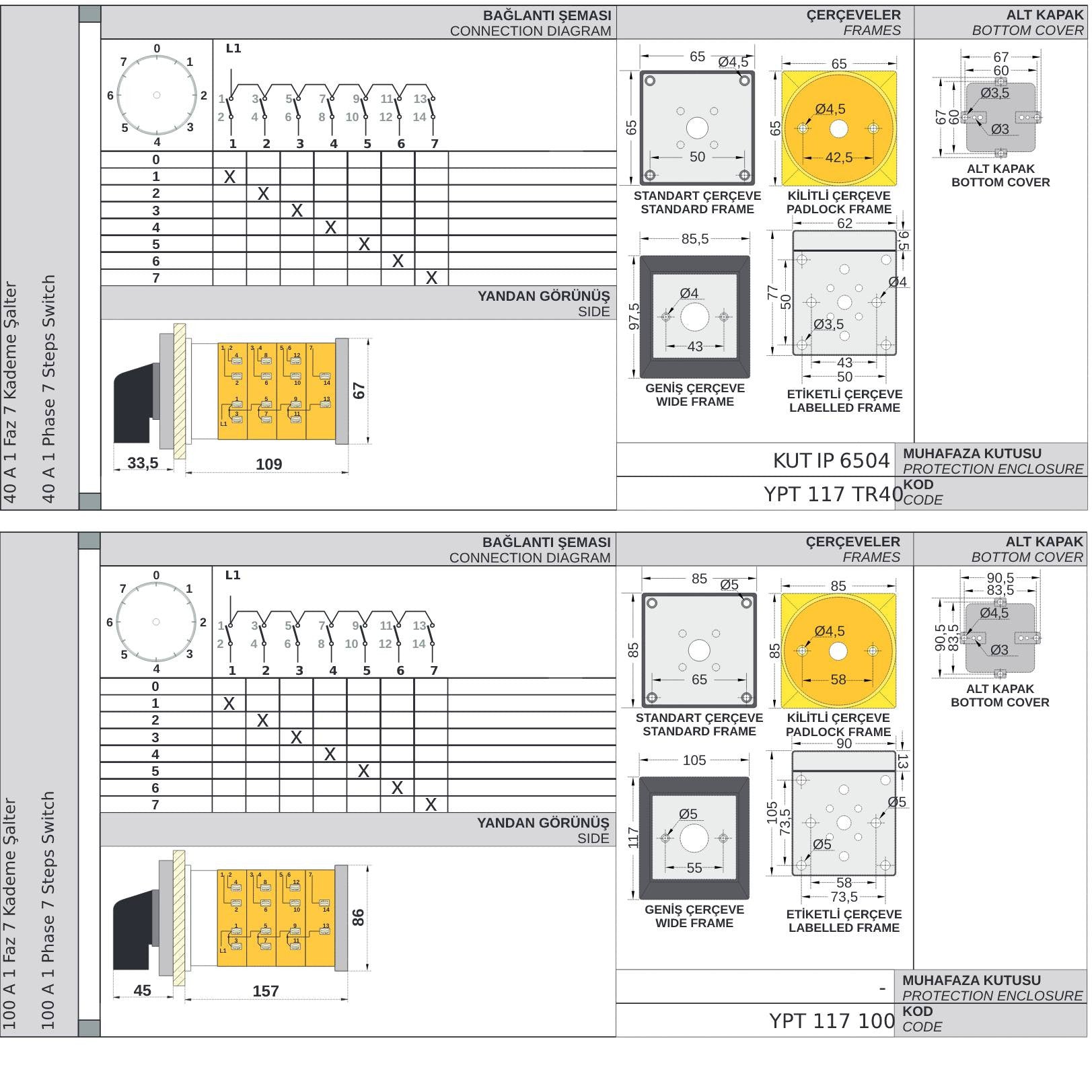

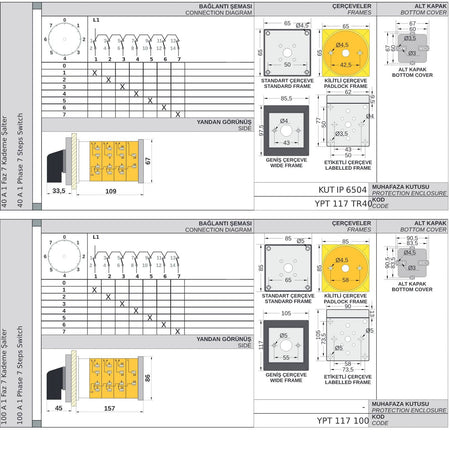

  • Schema de comutare: 0 - 1 - 2 - 3 - 4 - 5 - 6 - 7
  • Număr de poli: 1
  • Tip: încorporat
  • Număr de faze: monofazat
  • Protecție: Nu
  • Grad de protecție împotriva prafului și a apei: IP20
  • Intervalul de temperatură de funcționare: -30 până la +55°C
  • Producător: Turcia
  • Țara producătorului: Turcia
  • Număr de poziții de lucru: 8
