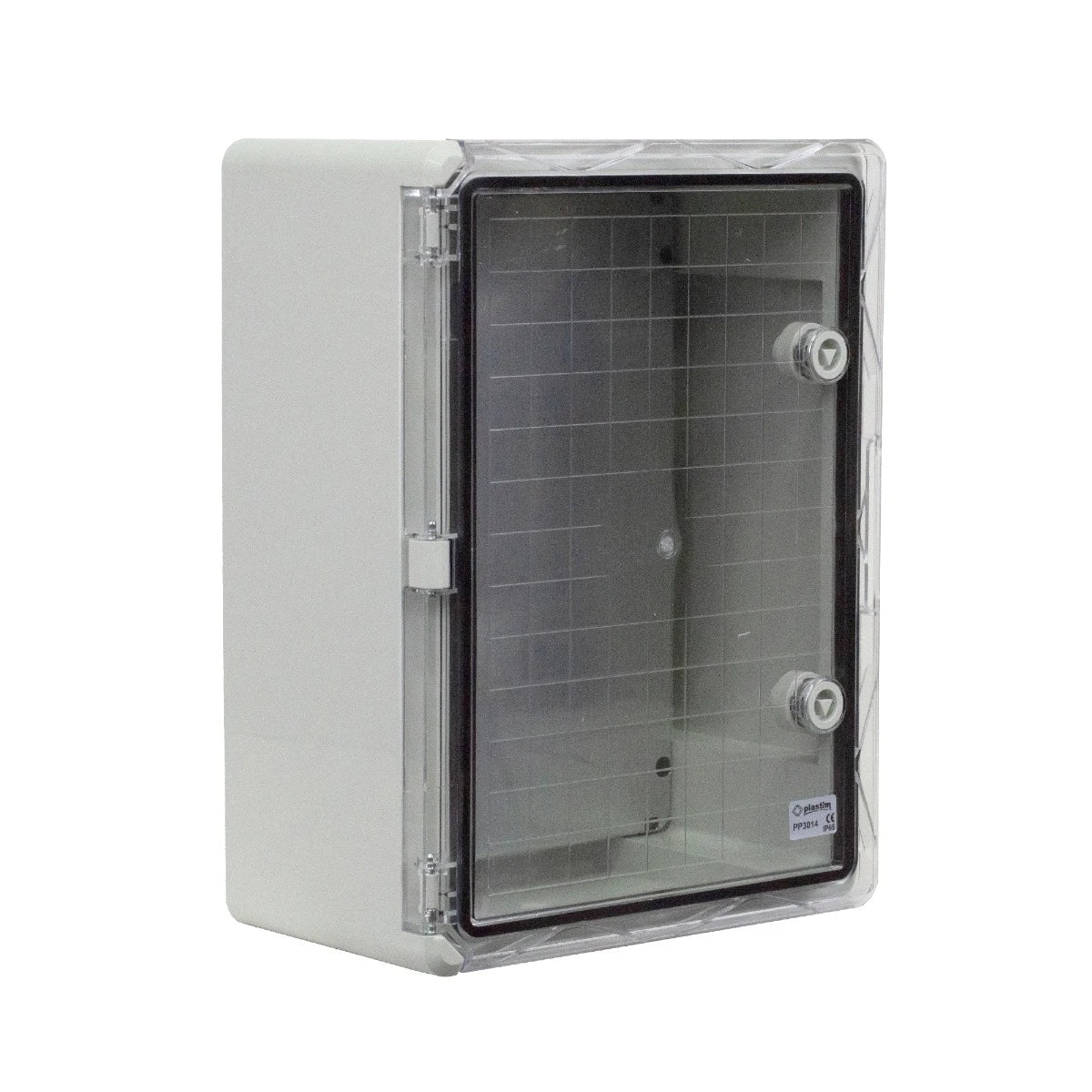

Transparent plastic door switch 300x400x170mm IP65 PP3014
- Regular price
- 218,59 lei 180,65 lei excl. VAT
- Regular price
-
- Sale price
- 218,59 lei 180,65 lei excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
Plastic distribution board, transparent door, 300x400x170mm enclosure, IP65, PP3014 Plastim
The new waterproof plastic enclosures manufactured by the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and electrical power distribution applications.
-
Enclosures reinforced with metal posts
-
A new enclosure design with reinforced corners and increased thickness of the door and the entire product.
-
Extended temperature range in which the enclosure retains all its improved properties: -25/+60°C
- Solid, lightweight galvanized metal mounting panel, fully resistant to corrosion
- Can be equipped with transparent doors and DIN rails reinforced with metal inserts;
MAIN TECHNICAL FEATURES
- Mounting panel: made of 1 mm thick galvanized steel
- Material: halogen-free HB ABS + polycarbonate (door).
- Width: 300 mm
- Height: 400 mm
- Depth: 170 mm
- Color: light gray
- Enclosure: IP65, IK08
- Rated voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
- Weight: 3.00 kg
