Transparent plastic door switch 250x350x150mm IP65 PP3012
- Regular price
- 180,39 lei 149,08 lei excl. VAT
- Regular price
-
- Sale price
- 180,39 lei 149,08 lei excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

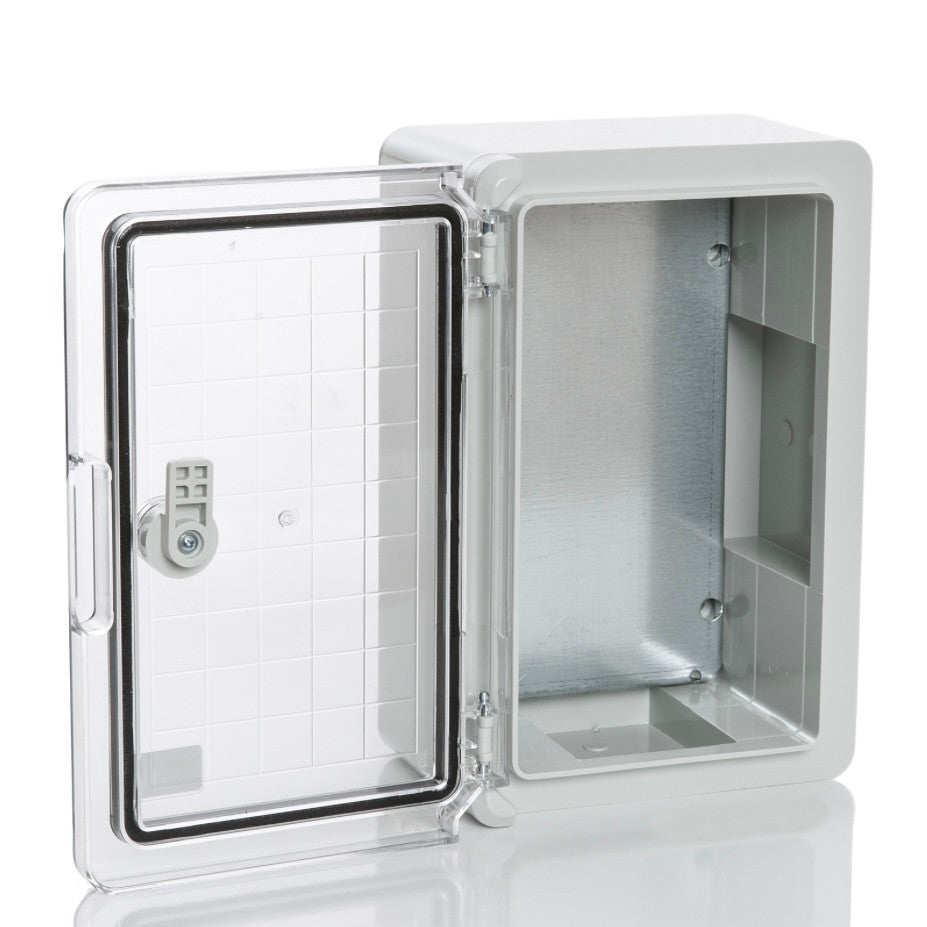

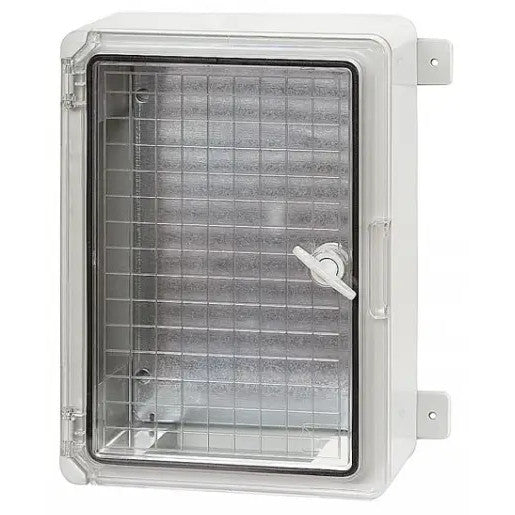

Plastic distribution enclosure, transparent door, 250x350x150mm junction box, IP65, PP3012 Plastim
The new waterproof plastic enclosures manufactured by the Turkish company Plastim open a new chapter in the use of plastic protection enclosures for automation and electrical power distribution applications.
-
Reinforced hinges with metal pins
-
New enclosure design with reinforced corners and increased thickness of the door and the entire product.
-
Extended temperature range in which the enclosure retains all its improved properties: -35/+60°C
- Solid, lightweight, fully corrosion-resistant galvanized metal mounting panel
- Can be equipped with transparent doors and DIN rails reinforced with metal brackets;
MAIN TECHNICAL SPECIFICATIONS
- Mounting panel: made of 1 mm thick galvanized steel
- Material: halogen-free HB ABS + polycarbonate (door).
- Width: 250 mm
- Height: 350 mm
- Depth: 150 mm
- Color: light gray
- Enclosure: IP65, IK08
- Rated voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
- Weight: 2.20 kg
