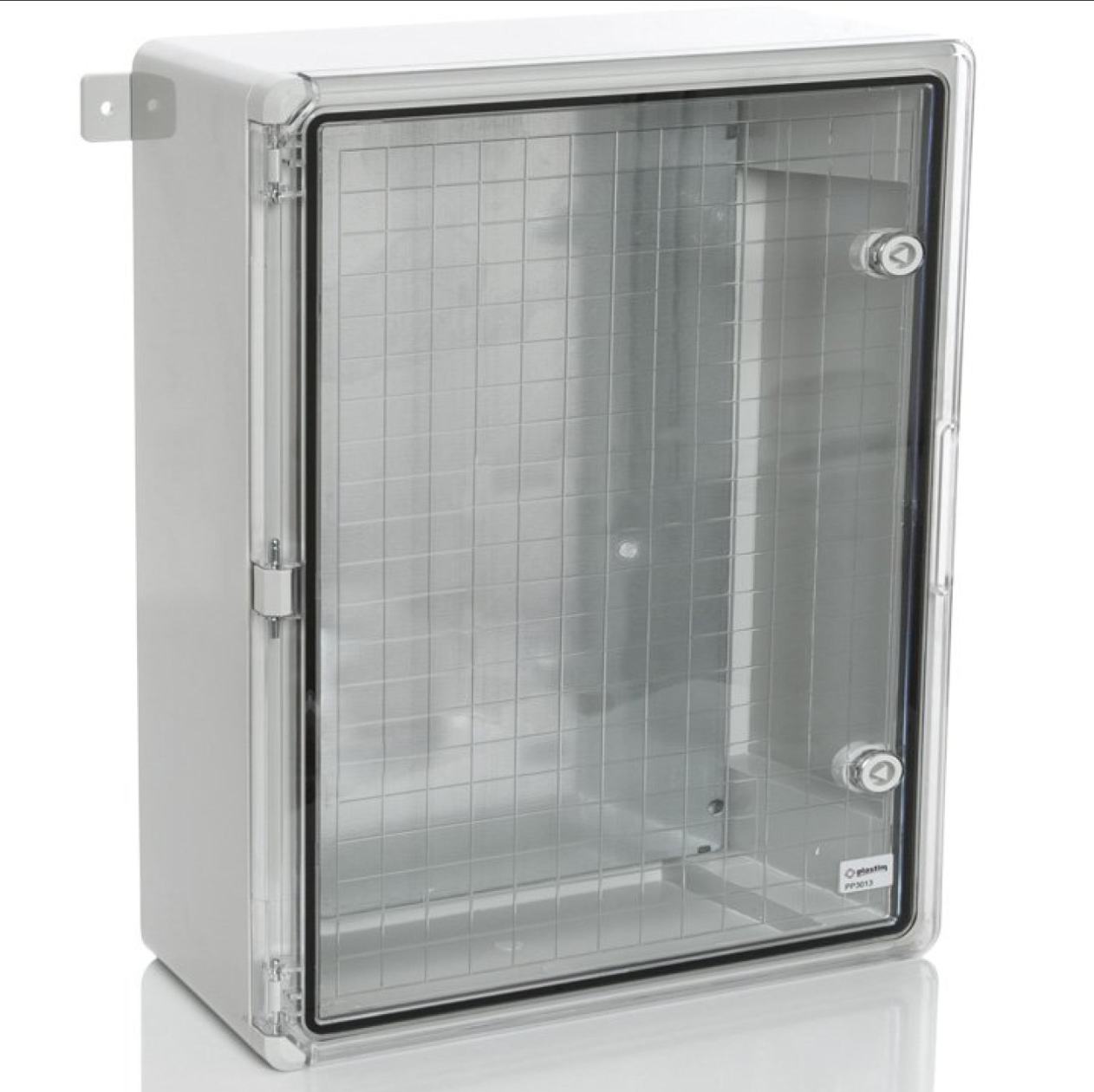

Transparent plastic door switch 400x500x175mm IP65 PP3013
- Regular price
- 451,00 lei
- Regular price
-
- Sale price
- 451,00 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
Plastic distribution board, transparent door, joint 400x500x175mm, IP65, PP3013 Plastim
The new waterproof plastic cabinets manufactured by the Turkish company Plastim open a new chapter in the use of plastic protective cabinets for automation and electrical distribution tasks.
-
Reinforced boxes with metal pin
-
New design of the casing with reinforcements in the corners and increased thickness of the door and the entire product.
-
Extended temperature range in which the protection retains all improved properties from -35/+60C.
- Solid galvanized metal mounting panel, lightweight and fully corrosion-resistant
- Can be mounted with transparent doors and reinforced DIN metal angle rails;
MAIN TECHNICAL CHARACTERISTICS
- Mounting panel: made of galvanized steel with a thickness of 1 mm
- Material: ABS HB halogen-free ABS + polycarbonate (door).
- Width: 400 mm
- Height: 500 mm
- Depth: 175 mm
- Color: RAL7035 light gray
- Enclosure: IP65, IK08
- Nominal voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
- Weight: 4.3 kg
