Vendor: TENSE

Frequency meter / frequency counter / built-in digital frequency measurement panel 1-400Hz

Barcode: DJ-F72
191,00 lei
191,00 lei
Low stock: 5 left
Height x Width: 73 mm x 73 mm
  • Description
  • Instructions
  • Payment methods
  • Warranty

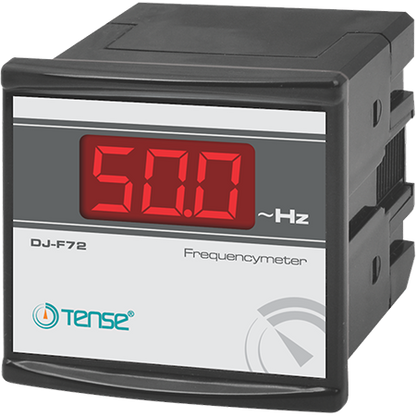

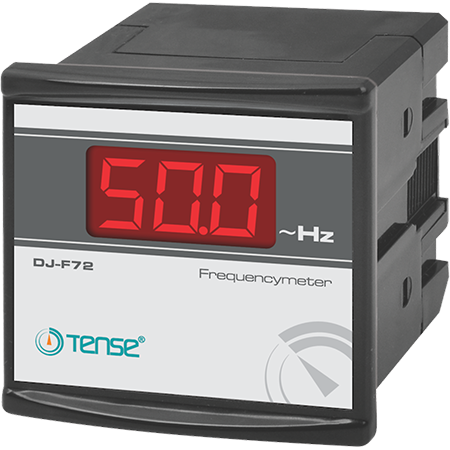

Frecvențmetru digital TENSE DJ-F72

Descriere

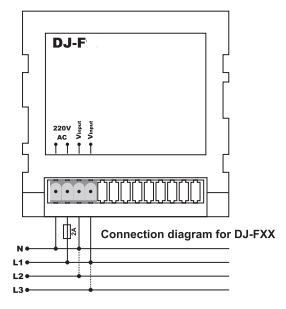

Frecvențometrele digitale TENSE DJ-F72 sunt concepute pentru monitorizarea continuă a frecvenței curentului alternativ (AC). Atunci când alimentarea este conectată, dispozitivul afișează pe afișajul digital frecvența fazei sau a tensiunii de linie aplicate la intrările Vin. Tensiunea măsurată trebuie să fie în intervalul 15-500 V c.a.

Avantaje

  • Monitorizare continuă a frecvenței

  • Măsurare digitală precisă cu o precizie de ±1%

  • Instalare ușoară pe panoul frontal

  • Consum redus de energie (<6 VA)

  • Funcționare compactă și fiabilă chiar și la altitudini de până la 2000 m

Specificații tehnice

ParametruValoare
Tensiune de funcționare (Un)140 - 260 V AC
Frecvență de funcționare50/60 Hz
Consum de energie<6 VA
Interval de măsurare a frecvenței1 - 400 Hz (tensiune 15-500 V AC)
Precizie de măsurare±1 %
Temperatură de funcționare0 °C - 55 °C
Clasă de protecțieIP20
Tip de conexiune Conexiuneterminal
Max.
Diametrul cablului1,5 mm²
Greutate<220 g
Altitudine de funcționare<2000 m

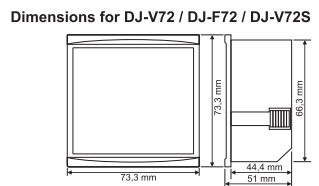

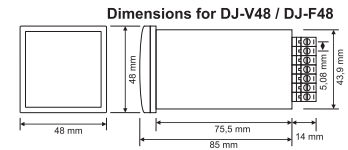

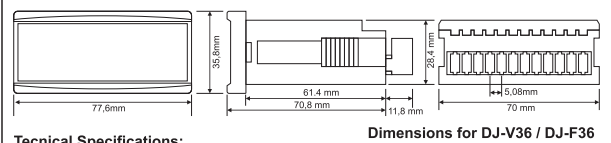

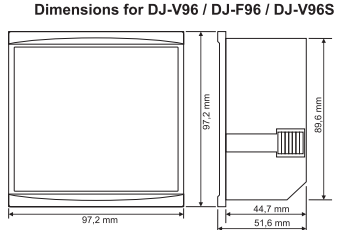

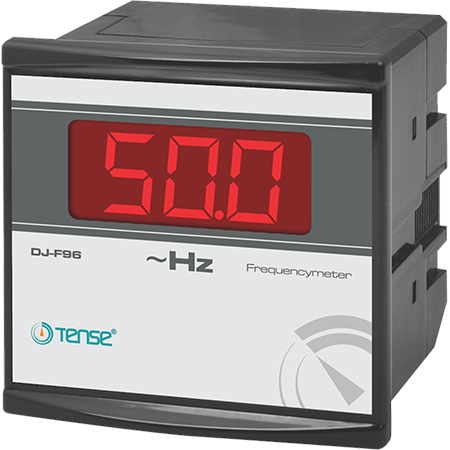

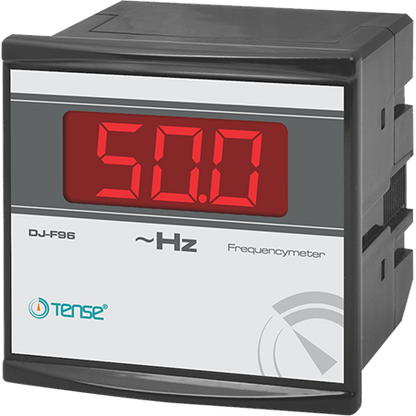

ModelDimensiunea
afișajuluiDimensiunea
orificiului
de montareDJ-F9620
mm, 3-digit91x 91
mmDJ-F7214
mm, 3-digit68x 68
mmDJ-F489
mm, 3-digit45x 45 mm


Instalare

  • Montare pe panoul frontal

  • Potrivit pentru sisteme de alimentare industriale și casnice

Descărcare pe

Manual de utilizare
