Vendor: TENSE

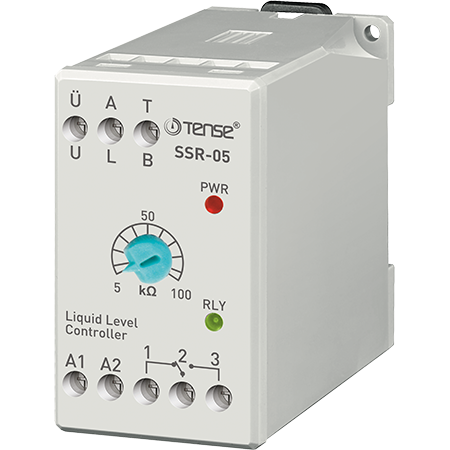

Level filling controller, management discharge switch Level indicator SSR-05

Barcode: SSR-05
152,79 lei 126,27 lei excl. VAT
152,79 lei 126,27 lei excl. VAT
22 in stock

Frequently bought together

de06e037dbc494e38b025e8b975bdb5e

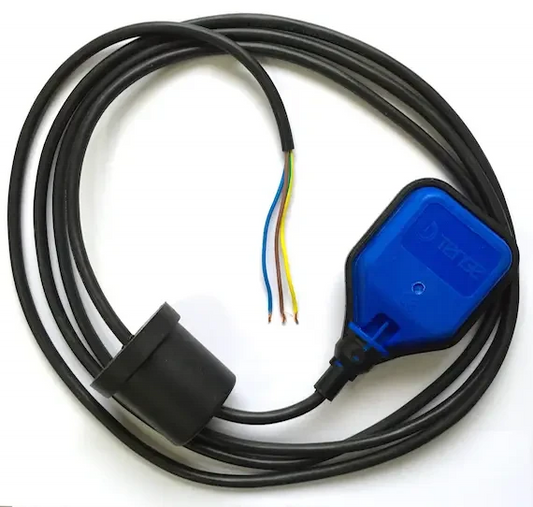

Float Level Switch for Clean Water (Filling, Draining), NO+NC, PVC  – 1.6 m

54,60 lei 45,12 lei excl. VAT
54,60 lei 45,12 lei excl. VAT
  • Description
  • Instructions
  • Payment methods
  • Warranty

SSR-05 liquid level control relay - TENSE

Product description

The SSR-05 relay is designed for monitoring liquid levels in wells, cisterns, tanks, or pits.
It provides protection for centrifugal pumps against dry running or lack of water, which could damage hydraulic components and cause the pump to overheat.

The device is suitable for:

  • Domestic and industrial water pumps (surface and submersible).

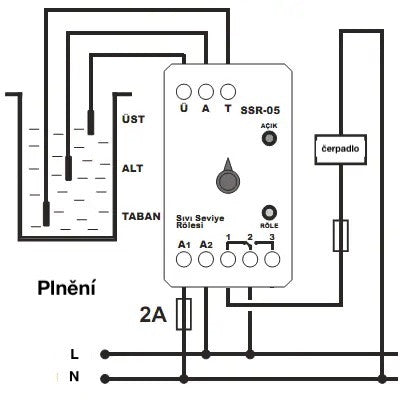

  • Pump control for filling the tank

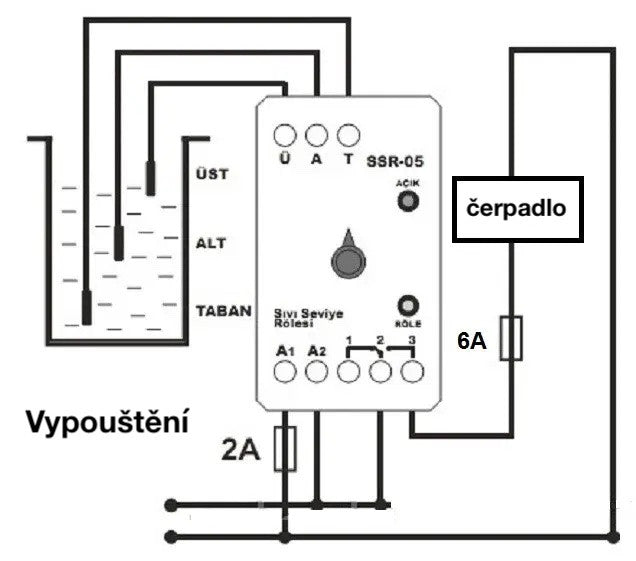

  • Water leak detection and pump shutoff

The relay uses 2 or 3 level sensors, allows adjustment of sensor sensitivity, and provides an LED indication of the water level.

Main functions

  • Pump protection against dry running

  • Monitoring the water level in tanks, cisterns, or wells

  • Adjustable level sensor sensitivity

  • Water level LED indicator

  • Terminal connection for easy installation

Technical parameters

  • Rated voltage: 220 V AC

  • Operating range: 170-260 V AC

  • Operating frequency: 50/60 Hz

  • Operating power: < 3 VA

  • Operating temperature: -10 °C ... +50 °C

  • Connection: terminal

  • Dimensions: 44 × 75 × 85 mm

  • Weight: 250 g

Recommended accessories

  • Level sensors (2 or 3 depending on the configuration)

  • 2A circuit breakers to protect the input and output channels (2 pieces)

Application

  • Automatic pump start and stop

  • Control of tank and reservoir filling

  • Low-water indication and pump protection

  • Ideal for domestic and industrial applications

Download on

User manual
