Vendor: TENSE

Level controller, level indicator for the borehole with SSR-05D TENSE level switch

Barcode: SSR-05D
169,99 lei 140,49 lei excl. VAT
169,99 lei 140,49 lei excl. VAT
Low stock: 6 left

Frequently bought together

de06e037dbc494e38b025e8b975bdb5e

Float Level Switch for Clean Water (Filling, Draining), NO+NC, PVC  – 1.6 m

54,60 lei 45,12 lei excl. VAT
54,60 lei 45,12 lei excl. VAT
  • Description
  • Instructions
  • Payment methods
  • Warranty

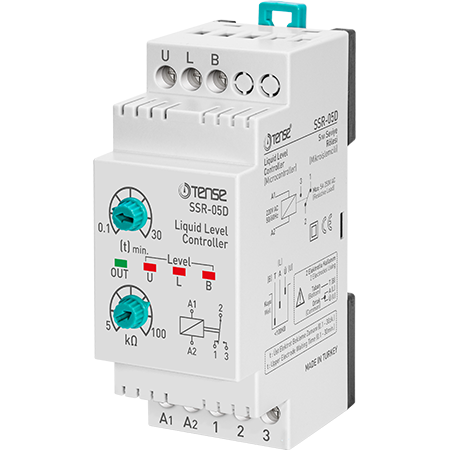

SSR-05D digital level relay - TENSE

Product description

The SSR-05D relay is designed for water level control in wells, tanks, expansion vessels, or pits.
It enables automatic pumping or draining of water and is compatible with two or three level sensors.

Microprocessor-based digital control ensures:

  • Long sensor service life – current does not flow continuously between the sensors, but in pulses.

  • Pump delay time adjustment – suitable for wells or tanks with fluctuating water levels.

  • LED indication of the water level – upper, middle, and lower levels for easy visual monitoring.

The electrodes (water level sensors) are not included.

Main features

  • Water level control in a well, tank, or expansion vessel

  • Option to use 2 or 3 level sensors

  • Sensor sensitivity adjustment

  • Adjustment of the pump response delay time

  • LED indication of the water level (upper, middle, lower level)

  • Pump protection against dry running

Technical parameters

  • Rated voltage: 220 V AC

  • Operating range: 150-260 V AC

  • Operating frequency: 50/60 Hz

  • Operating power: < 3 VA

  • Operating temperature: -10 °C ... +50 °C

  • Connection: terminal block

  • Mounting type: DIN rail + screws

  • Dimensions: 44 × 75 × 85 mm

  • Weight: 250 g

Recommended accessories

  • Level sensors (2 or 3 pieces)

  • 2 A circuit breakers for protecting the input and output circuits (2 pieces)

Application

  • Automatic pump starting and stopping according to the water level

  • Pump protection against dry running

  • Tank fill indication

  • Suitable for applicationsdomestic and industrial
