Vendor: TENSE

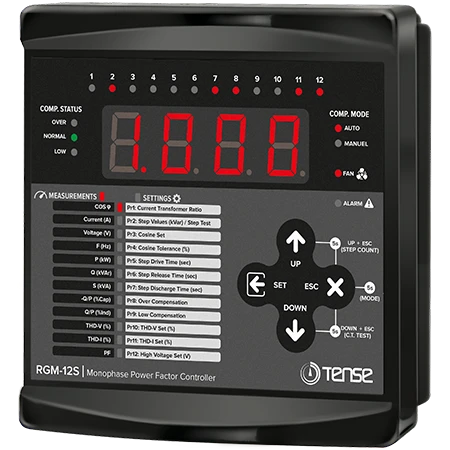

Reactive power controller with 12 levels with LED screen

Barcode: RGM-12S
844,20 lei
844,20 lei
Low stock: 8 left
  • Description
  • Instructions
  • Payment methods
  • Warranty

12 steps Single-phase connection Power factor regulator for controlling the power factor in networks with balanced loads (TENSE)

The reactive power control relay RGM-12S is designed to reduce inductive powers that do not utilize loads but are drawn from the grid. When inductive reactive power is drawn from the grid, it intervenes by activating the corresponding value capacitors. In this way, it tries to bring the Cos fi value to the desired level.

  • 7 Different power factor compensation programs

  • Manual power factor compensation programs

  • Only inductive systems can be compensated

  • Automatic step measurement

  • Activation, release, and discharge times of the steps are adjustable

  • Harmonic alarm values for voltage and current are adjustable

  • Over and under compensation alarm values can be set

  • Voltage alarm output, harmonic voltage/current, over and under compensation

  • Voltage, current, and frequency values can be monitored

  • Active power, reactive power, and apparent power values can be monitored

  • THD-I can be monitored up to the 15th harmonic

  • THD-V can be monitored up to the 15th harmonic

  • The cosine value can be monitored

  • The power factor value can be monitored

  • Automatic fan shutdown

  • Stepwise aging (in some compensation programs)
