Modbus RS485 to RS232 Converter Interface to PC via USB
- Regular price
- 222,59 lei 183,96 lei excl. VAT
- Regular price
-
- Sale price
- 222,59 lei 183,96 lei excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

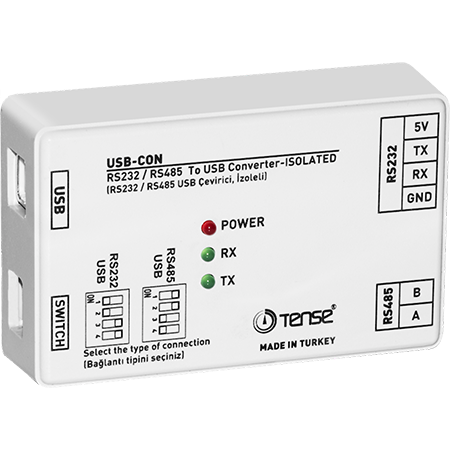

RS485/RS232 to USB protocol converter - USB-CON (TENSE, Turkey)
USB-CON is a compact converter/gateway designed to connect RS485/RS232 (MODBUS) devices to a computer via a USB port. It enables the quick connection of power meters, multimeters, network analyzers, and other automation equipment in industrial and residential applications.
Features and benefits
-
Direct PC ↔ RS485/RS232 (MODBUS) connection
-
No separate power supply is required - the converter is powered via USB
-
Compact dimensions: 9 × 6 × 3 cm
-
Quick connection via the terminal block
-

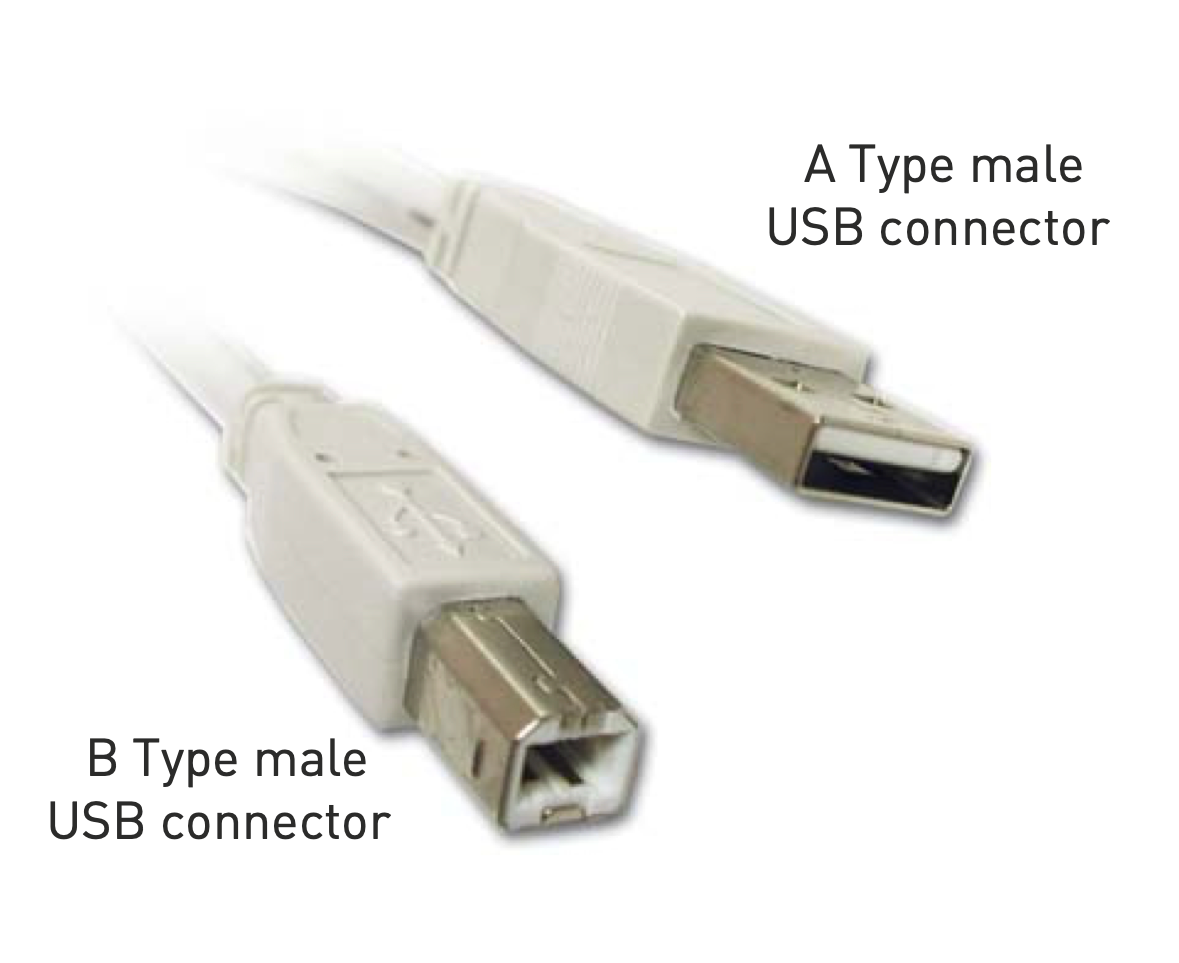

USB cable 1,2 m included
-

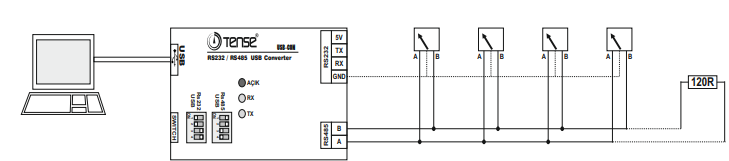

Support for up to 256 devices on the RS485 bus
-
Power and communication indicator LED
-
High throughput of up to 203,400 bps
-
Galvanically isolated inputs and outputs
-
Wide temperature range: -20...+55 °C
-
Free software for configuration and diagnostics
Technical specifications
-
Interface: USB ↔ RS485 / RS232
-
Protocol: ModBus (RTU/ASCII)
-
Power supply: via the USB port
-
Maximum communication speed: 203 400 bit/s
-
Maximum number of devices on the RS485 bus: 256
-
Indication: LED - power / data
-

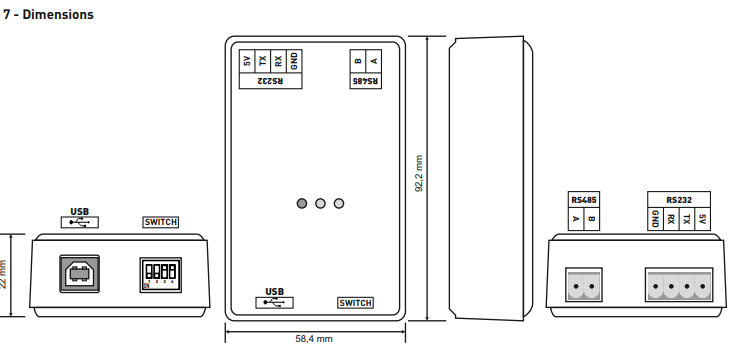

Dimensions: 90 × 60 × 30 mm
-
Operating temperature: -20...+55 °C
