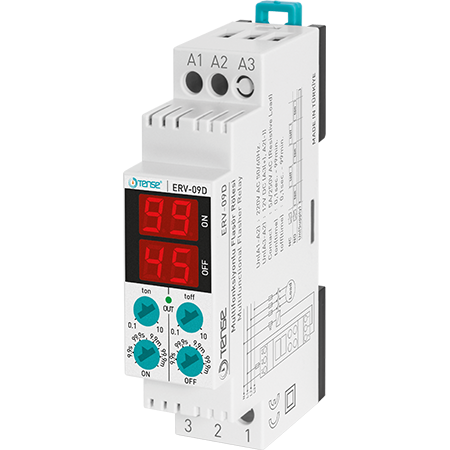

ERV-09D cyclic relay - TENSE (Turkey)
The ERV-09D signaling and cyclic relay is designed for applications requiring alternating control (On-Off) of equipment. It is suitable for industrial installations, production lines, residential and office buildings, or any situation requiring periodic load switching.
Main features
-
Universal power supply: 230 V AC or 12 V DC
-
Adjustable operating time (ON): 1 s - 99 min
-
Adjustable waiting time (OFF): 1 s - 99 min
-
The display shows the current settings and countdown time
-
Indication ON = operating time, OFF = waiting time
-
Mounting on a DIN rail
-
Low power consumption: < 6 VA
-
Compact and lightweight: weight < 80 g
Functions and controls
-
Dual mode: ON/OFF
-
The countdown of the set time is shown on the LED display
-
If the time is set in minutes, the dot on the right flashes for easy orientation
-
Ideal for cycling lights, fans, motors, and other devices
Technical specifications
| Parameter | Value |
|---|---|
| Operating voltage | 100-240 V AC (A1-A2), 12 V DC (A2(-)/A3(+)) |
| Operating frequency | 50/60 Hz |
| Operating power | <6 VA |
| Operating temperature | -20 °C to +55 °C |
| Time range | 0.1 s - 99 min |
| Display | 2×2 LEDs + 1 indicator LED |
| Contact | 5 A / 250 V AC, resistive load |
| Installation | DIN rail |
| Weight | <80 g |
| Operating altitude | <2000 m |
| Cable diameter | up to 2.5 mm² |
ERV-09D relay provides reliable and precise cyclic switching, with easy configuration and direct display of the timing, making it suitable for industrial and residential applications.
