Vendor: TENSE

DAV-72D digital ammeter and voltmeter for panel mounting for AC 100 amps, 150V

Barcode: DAV-72D
103,19 lei 85,28 lei excl. VAT
103,19 lei 85,28 lei excl. VAT
Low stock: 7 left

Frequently bought together

cfb196d4991ae2d34b9445e98335d518

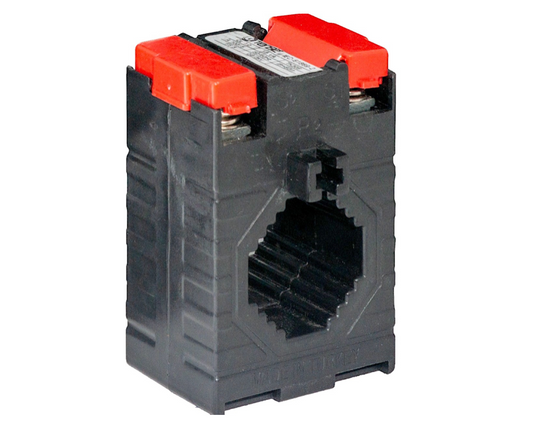

TK30S – Current transformer 100/5 150/5 200/5 250/5 300/5 400/5 500/5  – 150/5

50,00 lei 41,32 lei excl. VAT
50,00 lei 41,32 lei excl. VAT
f961ae4822ebd88d1236653015504c6d

TK30S – Current transformer 100/5 150/5 200/5 250/5 300/5 400/5 500/5  – 200/5

66,20 lei 54,71 lei excl. VAT
66,20 lei 54,71 lei excl. VAT
55c4a787b84cee4f6564bb7a8fa0612f

TK30S – Current transformer 100/5 150/5 200/5 250/5 300/5 400/5 500/5  – 250/5

66,20 lei 54,71 lei excl. VAT
66,20 lei 54,71 lei excl. VAT
  • Description
  • Instructions
  • Payment methods
  • Warranty

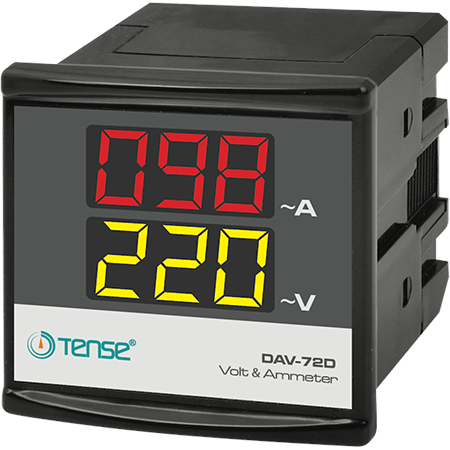

72x72 mm digital panel multimeter - TENSE (DAV-72D)

Product description:
DAV-72D is a combined single-phase digital voltmeter-ammeter designed for continuous monitoring of the AC voltage between the phase and neutral conductors and the absorbed load current, measured by an external current transformer (CT-120, included). The instrument is suitable for electrical panels, production plants, and electrical power distribution or monitoring systems.

Operating principle and use:

  • Connection to the phase and neutral conductors to be measured via the voltage measurement terminals.

  • The current measured via an external CT-120 current transformer, whose secondary conductors are connected to terminals K and L on the back of the instrument.

  • When power is applied, the following are displayed:

    • actual phase voltage (V)

    • load current (A)

Installation and configuration:

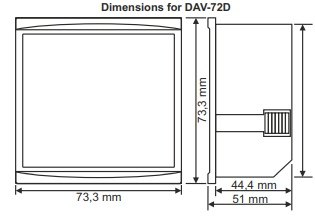

  • Front panel mounting (cutout 68 × 68 mm)

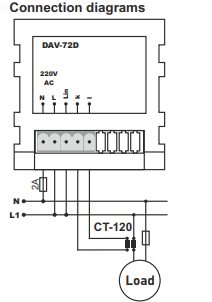

  • Wire the CT-120 as shown in the diagram, with the load wire routed through the transformer

  • Do not use other current transformers—the instrument is specially calibrated for CT-120

Technical specifications:

  • Operating voltage: 140-270 VAC.

  • Mains frequency: 50/60 Hz

  • Displayed voltage range: 5-300 V AC

  • Measured current range: 1-100 A (via CT-120)

  • Accuracy:

    • Voltage: ±1%

    • Current: ±3 %

  • Display: 2 lines, 3 digits, character height 14 mm

  • Instrument power: <6 VA

  • Operating temperature: -20 °C to +55 °C

  • Altitude: up to 2000 m

  • Connection: plug-in terminals, cable cross-section up to 1.5 mm²

  • Mounting: panel, on the front side

  • Weight: up to 220 g
