Vendor: TENSE

DJ-V96T Digital Three-Phase Voltmeter Panel-Mounted for AC

Barcode: DJ-V96T
244,99 lei 202,47 lei excl. VAT
244,99 lei 202,47 lei excl. VAT
13 in stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

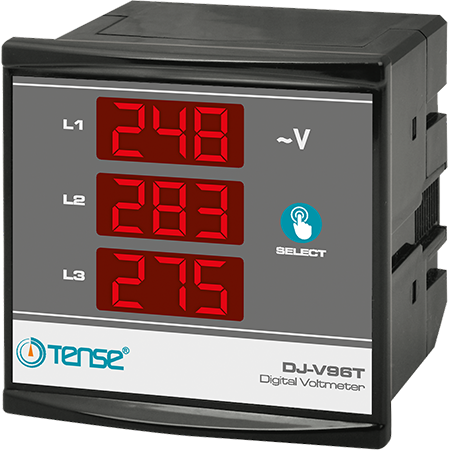

TENSE DJ-V96T three-phase digital panel voltmeter

Product description:
The TENSE DJ-V96T digital panel voltmeter is designed for simultaneous measurement of the voltage on three AC phases. It can monitor both phase-to-neutral (L-N) and phase-to-phase (L-L) voltages and also displays the phase sequence. The display mode is selected using the SELECT button on the front panel.

Operating principle:

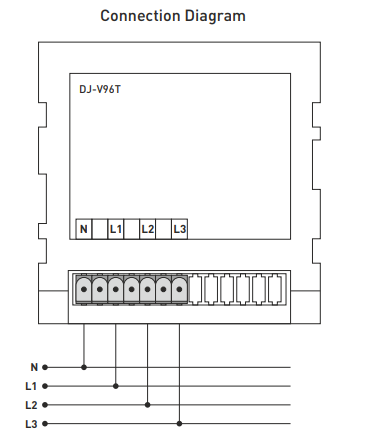

  • Displays the voltage at the L1, L2, L3 inputs when power is applied.

  • Pressing the SELECT button switches the display to L12, L23, L31 phase voltages and then to the phase sequence.

  • Displaying L1, L2, L3 from top to bottom indicates the correct phase sequence; displaying L1, L3, L2 indicates the incorrect phase sequence.

Technical specifications:

Parameter Value
Operating voltage (Un) 140-300 VAC
Operating frequency 50/60 Hz
Power consumption <4 VA
Operating temperature -20 °C ... +55 °C
Measurement accuracy ±1 %
L-N measurement range 5-300 V AC (min. 140 V at L1)
L-L measurement range 5-500 V AC
Display 3×3 digits, 14 mm height
Mounting hole dimensions 91×91 mm
Connection type Plug-in connector
Weight ≤300 g
Operating altitude <2000 m
Cable diameter 1.5 mm²
Installation On the front panel


Application:

  • Voltage monitoring in three-phase electrical distribution systems

  • Monitoring the phase sequence

  • Monitoring L-N and L-L voltage in industrial and residential installations

Benefits:

  • Clear and precise display of voltage on all phases

  • Easy switching between display modes

  • Quick installation in a standard panel (91×91 mm)
