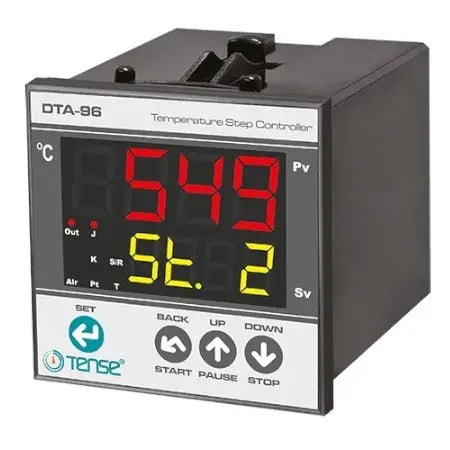

DTA-96 Digital Temperature Step Control Relay
- Regular price
- 512,40 lei
- Regular price
-
- Sale price
- 512,40 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
The DTA-96 Digital Relay for Stepped Temperature Control is designed to maintain temperature in environments that require temperature-dependent setpoint control.
Microprocessor-based stepped PID temperature controller
Automatic PID parameter tuning
Compatible Sensor Types: T/C (J,K,S), Pt100

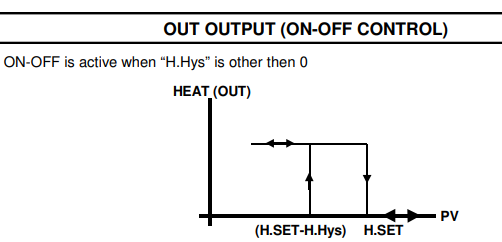

Optional Control Modes: P, PI, PD, PID, or ON-OFF
Anti-windup Function

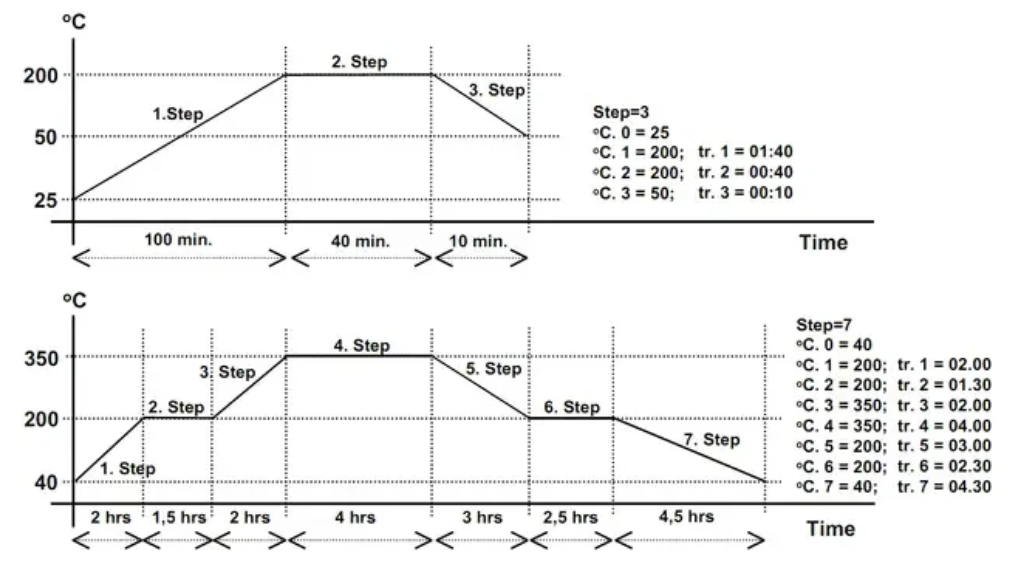

Up to 20 Steps Maximum
Step Time Setting Up to 18 Hours per Step

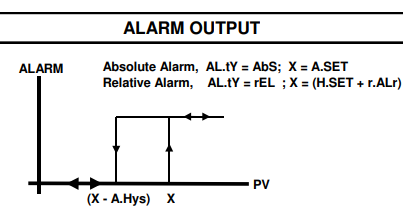

Selectable Relative or Absolute Alarm
Displays SET and Process Values, Step Number, and Remaining Time
Cold Junction Compensation for T/C
Lead Compensation for Pt100
Excellent Linearity with °C/mV and °C/Ohm Lookup Tables
Input Offset Function
Password Protection
High Precision
EEPROM Memory for Setting Storage
Optional SSR Output
Easy Connection via Connectors
