Vendor: TENSE

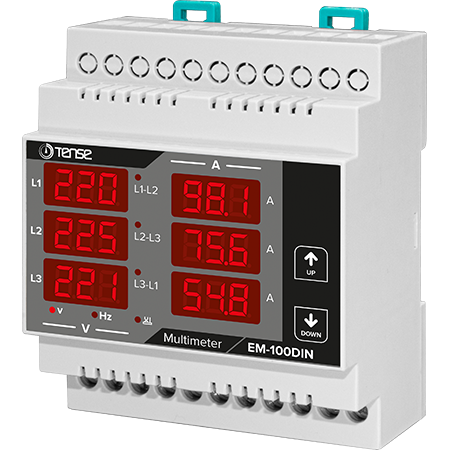

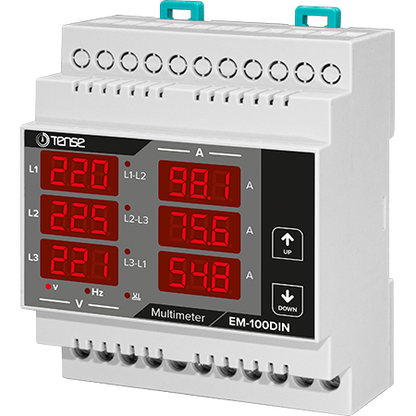

3-Phase DIN Digital Panel Multimeter Current, Voltage and Frequency Indicator

Barcode: EM-100DIN
307,60 lei
307,60 lei
Low stock: 3 left
Brand: 100A
  • Description
  • Instructions
  • Payment methods
  • Warranty

Multimetru de panou multifuncțional trifazat TENSE

Descriere

Multimetrul digital trifazat TENSE este un panou de măsură multifuncțional conceput pentru monitorizarea parametrilor electrici în sistemele trifazate. Instrumentul afișează tensiunea, curentul și frecvența și permite monitorizarea fazelor individuale.

Multimetrul este proiectat pentru montarea pe o șină DIN standard de 35 mm.

Principalele avantaje

  • Măsurarea multifuncțională a 4 cantități:

    • Curent (I)

    • Tensiune (U) - L-L și L-N

    • Frecvență (Hz)

  • Monitorizare monofazată

  • Măsurare precisă cu transformator de curent

  • Transformator de măsurare inclus pe modelele EM-100DIN și EM-250DIN

  • Montare ușoară pe șină DIN standard

Specificații tehnice

ParametruValoare
Interval de măsurare a curentuluiEM-06DIN: 5/5 ... 9995/5 A (măsurare indirectă) EM-100DIN: 1 - 100 A EM-250DIN: 2 - 250 A
Domeniul de măsurare a tensiuniiL-N: 1 - 300 V AC L-L: 1 - 500 V AC
Frecvența40 - 60 Hz
InstalareȘină DIN de 35 mm
AplicațieRețele industriale și domestice trifazate


Recomandări

  • Pentru o măsurare precisă a curentului, recomandăm utilizarea transformatoarelor de curent compatibile:
    60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5

  • Transformatoarele pot fi achiziționate direct din e-shop-ul nostru.

Descărcare pe

Manual de utilizare
