Digital panel multimeter for currents, voltages, frequencies, power, RS485
- Regular price
- 462,20 lei
- Regular price
-
- Sale price
- 462,20 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

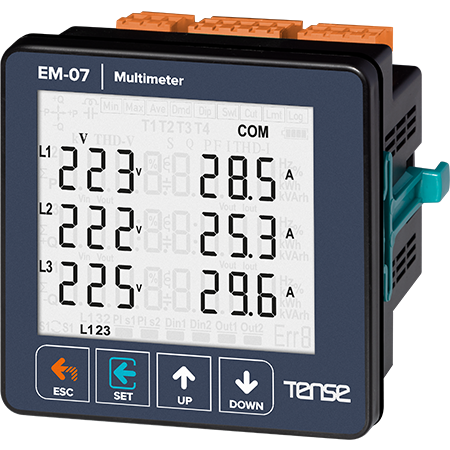

Multimeter - multifunctional digital measuring panel, current, voltage, frequency and total power indicator, with relay output and ModBus RTU manufacturer TENSE (Turkey)
Main advantages:
- RS485 Modbus RTU (1200-38400bps)
- Custom Glass LCD Design 71.5 x 61.5

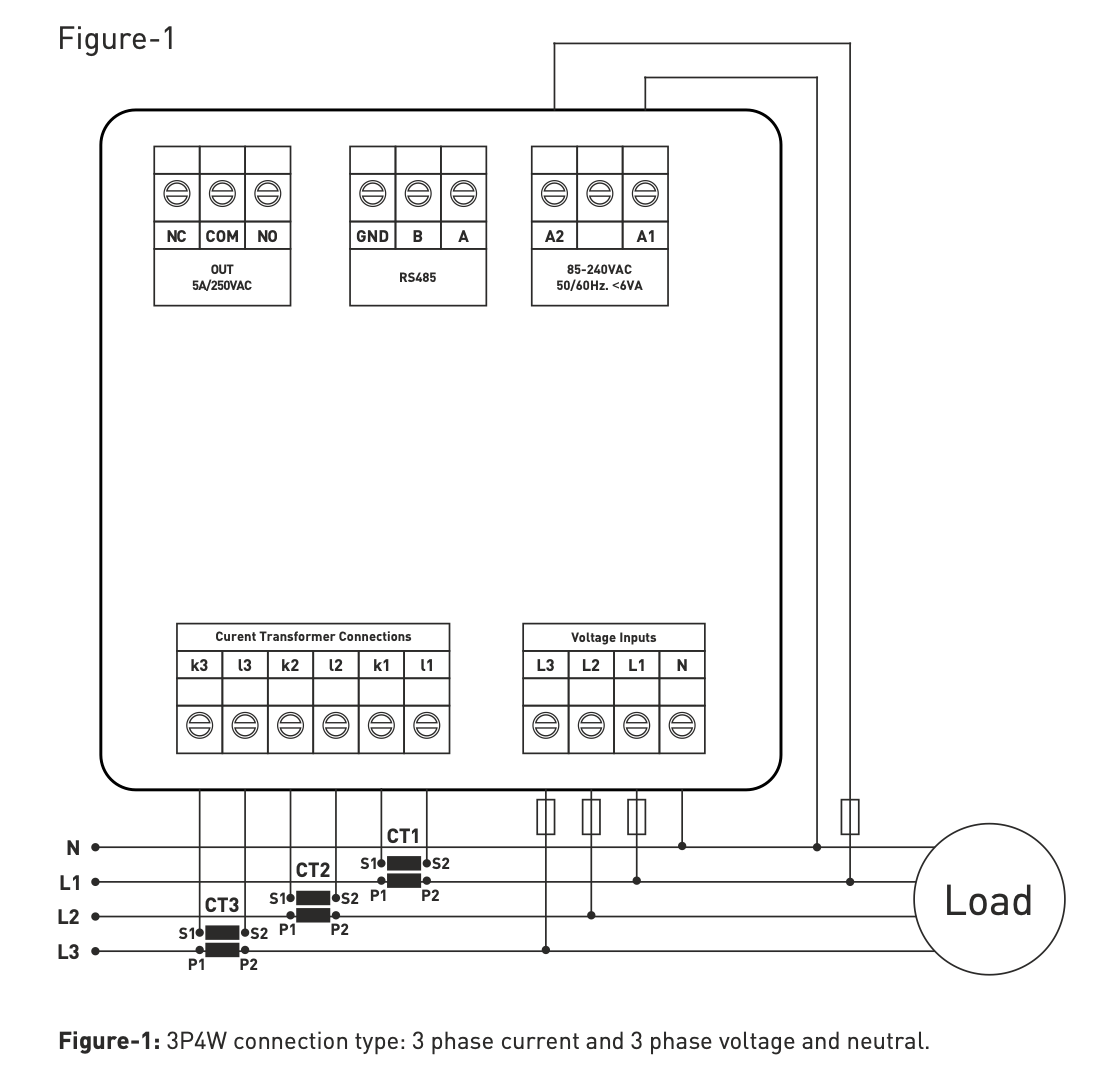

- Three-phase voltage transformer and three-phase current transformer.
- Display V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3
- Displays minimum, maximum and average values of V1,V2,V3,V12,V23,V31,F1,F2,F3
- Displays minimum, maximum, average and reference values I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
- 1 relay output
- Protects voltage, current and frequency
- Show phase sequence
- You can delete requirements
- The menu is password protected.
Typically, this multimeter is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our e-shop,
