ONKA 10-16mm2 / 3 bobine Steatit / Ceramică / Porțelan Conector - BLOC TERMINAL PORCELAIN, 1070012
- Regular price
- 21,80 lei
- Regular price
-
- Sale price
- 21,80 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

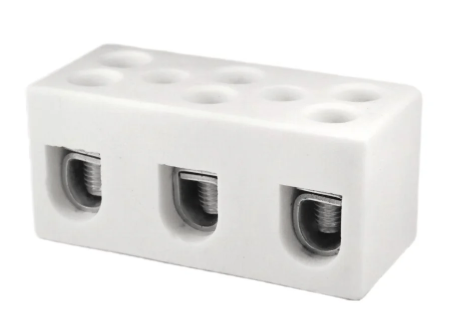

Bloc terminal ceramic din steatită, ONKA
Blocurile terminale ceramice pentru temperaturi ridicate de la ONKA sunt concepute pentru conexiuni electrice fiabile în condiții de temperaturi extreme. Corpul blocului terminal este fabricat din steatită, care oferă proprietăți excelente de izolare și rezistență la temperaturi de până la 1100 °C. Contactele realizate din oțel CK45 de înaltă calitate garantează o conexiune prin înșurubare fermă și stabilă a conductorilor. Produsul este ideal pentru utilizarea în sisteme de încălzire, cuptoare și echipamente industriale cu tensiuni termice ridicate.
Parametrii tehnici
Număr de poli: 3
Material izolant: Steatite (ceramică)
Material de contact: oțel CK45
Tip de conexiune: Racord de conectare.
Temperatura maximă de funcționare: 1100 °C
Standard: EN-60998-2-1
Dimensiuni
Lungime (A): 65,6 mm
Lățime (B): 30,0 mm
Înălțime (C): 30,0 mm
Diametrul orificiului pentru sârmă (DØ): 6,7 mm
Diametrul orificiului de montare (MØ): 5,2 mm
