ONKA 10mm2 spring rail connector terminal block DIN rail terminal 2 wires blue, 1020047
- Regular price
- 7,40 lei
- Regular price
-
- Sale price
- 7,40 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

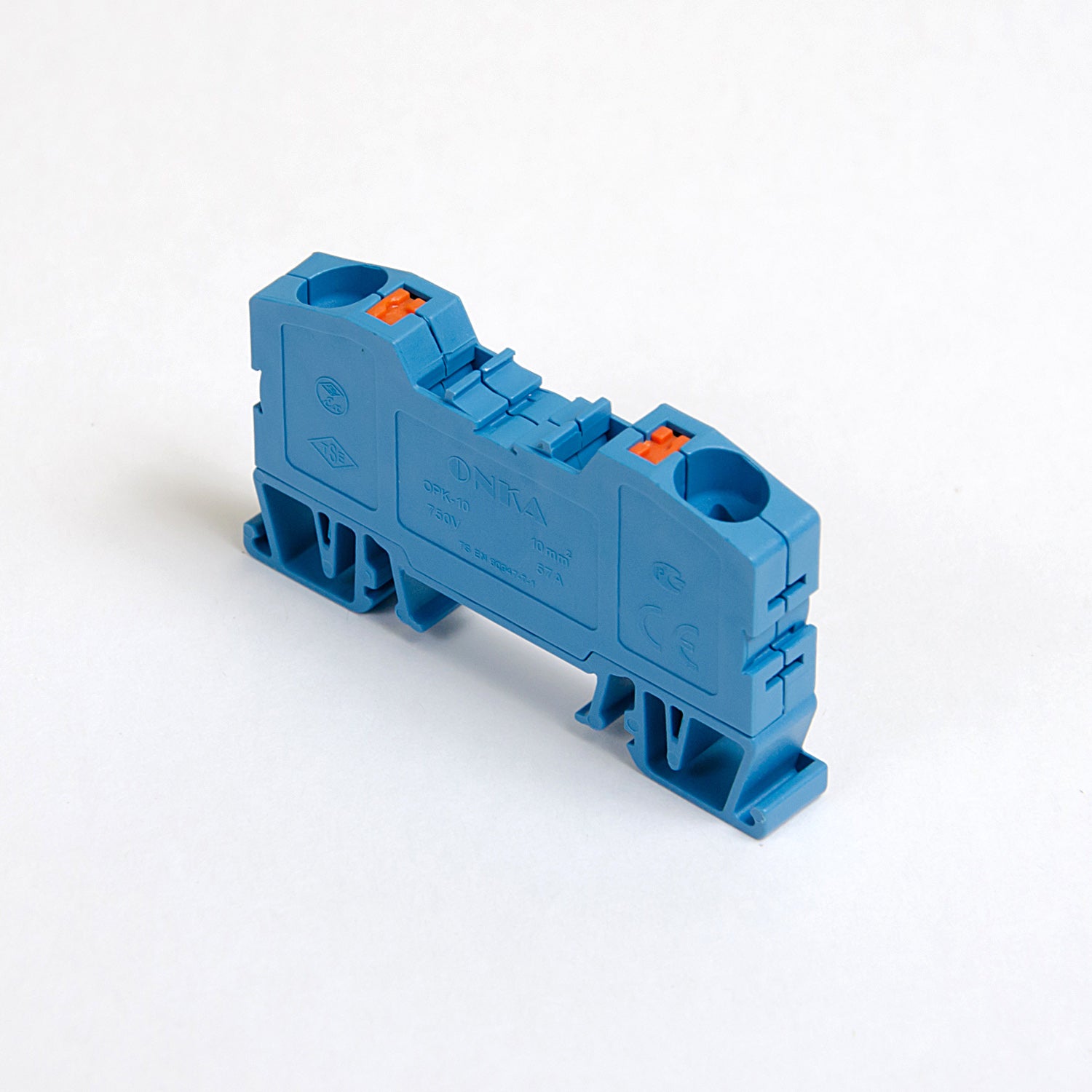

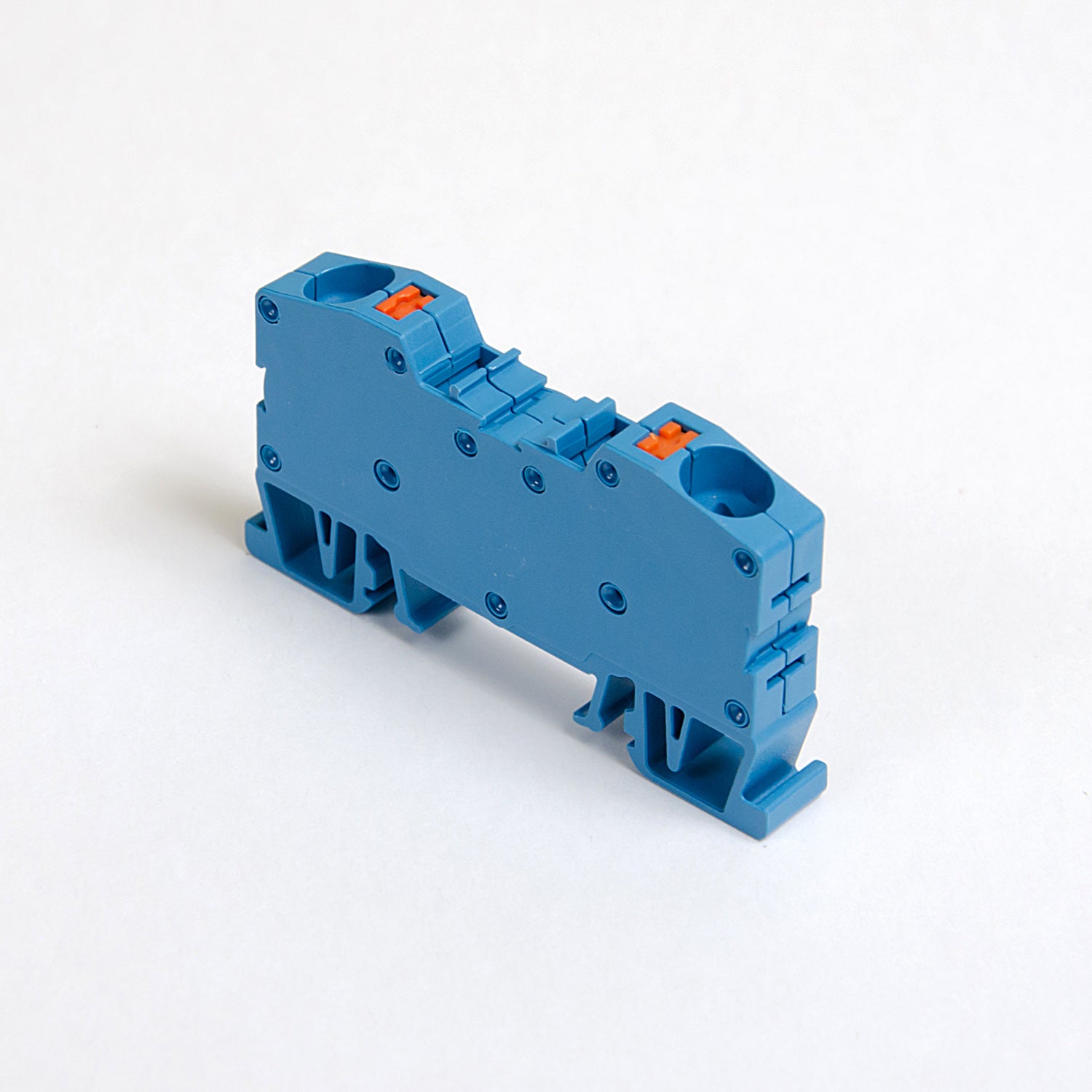

Spring-loaded connector for busbar / DIN rail terminal with 2 wires, retractable contact, blue, ONKA, made in Turkey.
The ONKA coupling/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made of high-quality materials, the coupling guarantees long-term use and resistance to mechanical damage.
Technical parameters
Cross-section of single connected wire up to: 10mm2
Color: blue
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top/top
Cable strip length: 12mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 57A
Operating temperature from: -40°C
Operating temperature range up to: 140°C
Mounting method: 35 mm DIN mounting rail
Standard: EN-60947-7-1
