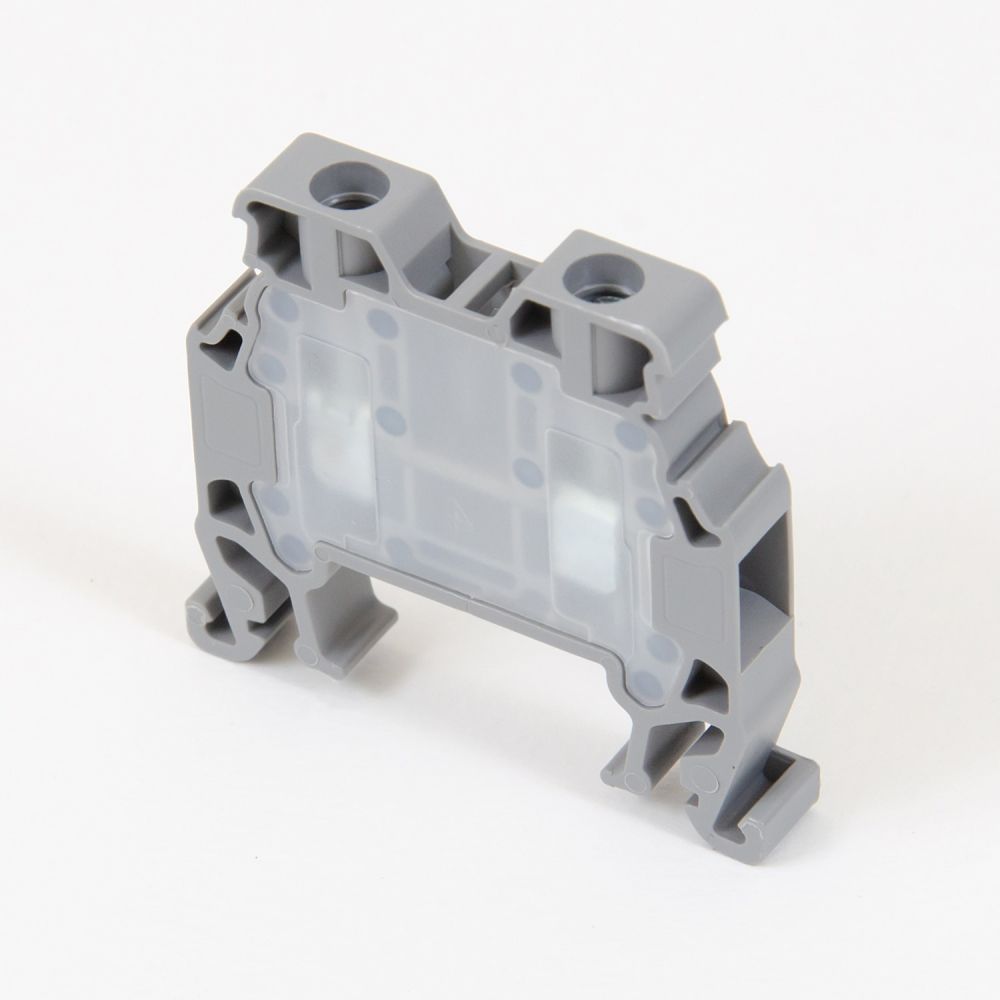

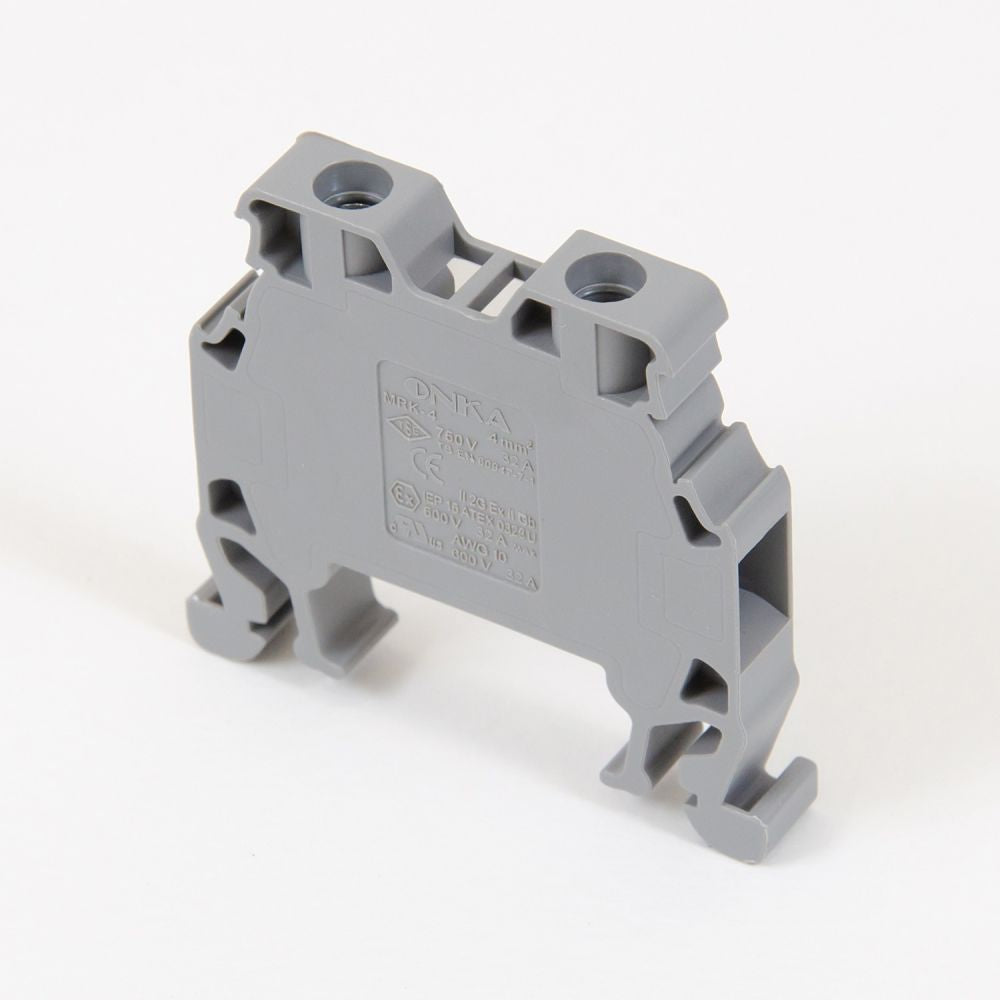

ONKA 4mm2 Screw terminal block DIN rail connector 2 wires grey, 1010022
- Regular price
- 3,40 lei
- Regular price
-
- Sale price
- 3,40 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Threaded busbar connector / DIN rail terminal with 2 wires gray, ONKA, made in Turkey
ONKA compact mounting rail connectors offer great possibilities for connecting any wire with different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. Original ONKA quick connectors are a convenience in installation and 100% connection reliability.
Technical parameters
Cross-section of single connected wire up to: 4mm2
Color: gray
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: Steel/Copper CK45
Torque: 0.5 Nm 0.5 Nm
Connection position: side / side
Cable strip length: 10mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 32A
Operating temperature from: -40°C
Operating temperature range up to: 140°C
Mounting method: 35 mm DIN mounting rail
Standard: EN-60947-7-1
