ONKA 4mm2 PE spring rail connector terminal block DIN rail terminal 2 wires gray, 1020299
- Regular price
- 10,20 lei
- Regular price
-
- Sale price
- 10,20 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

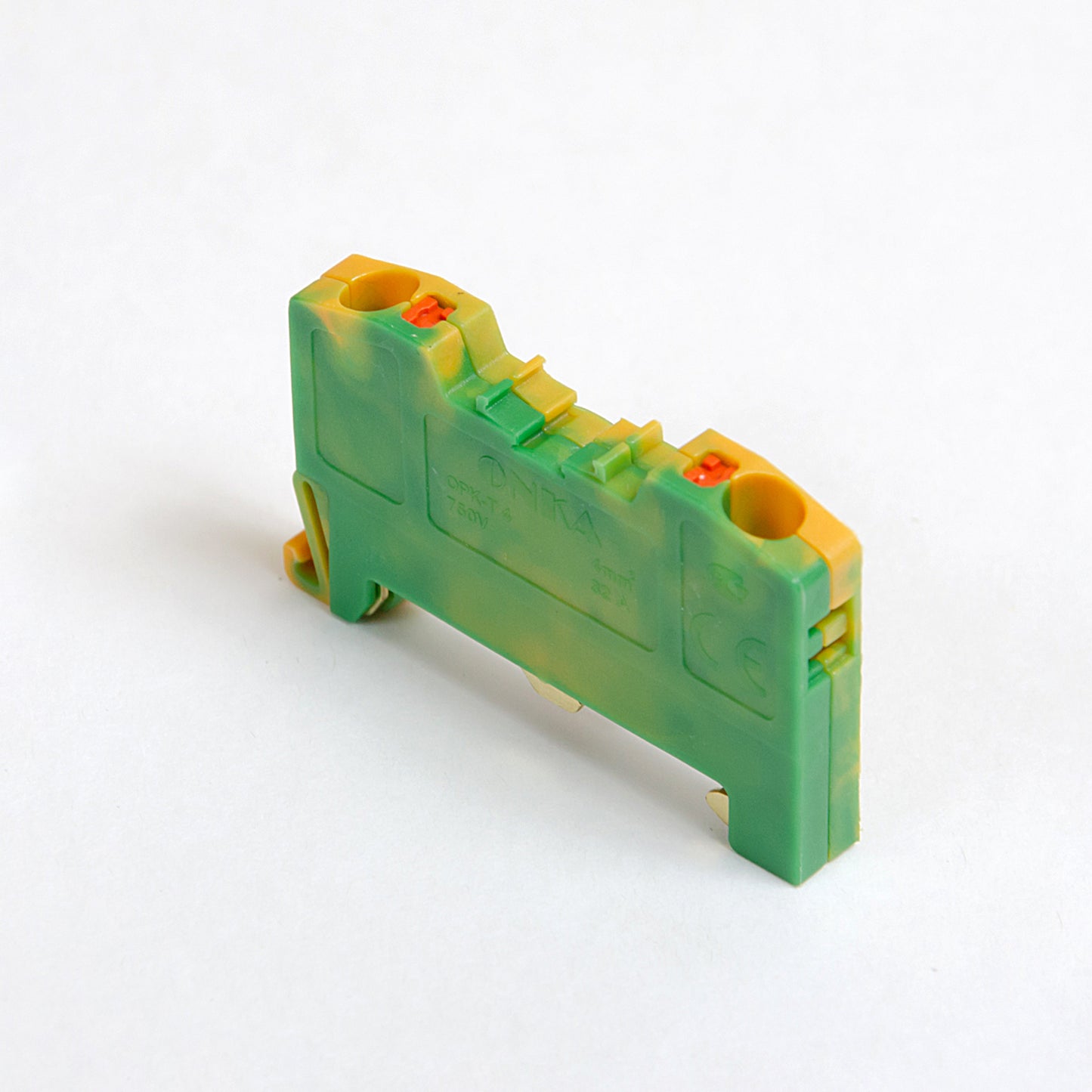

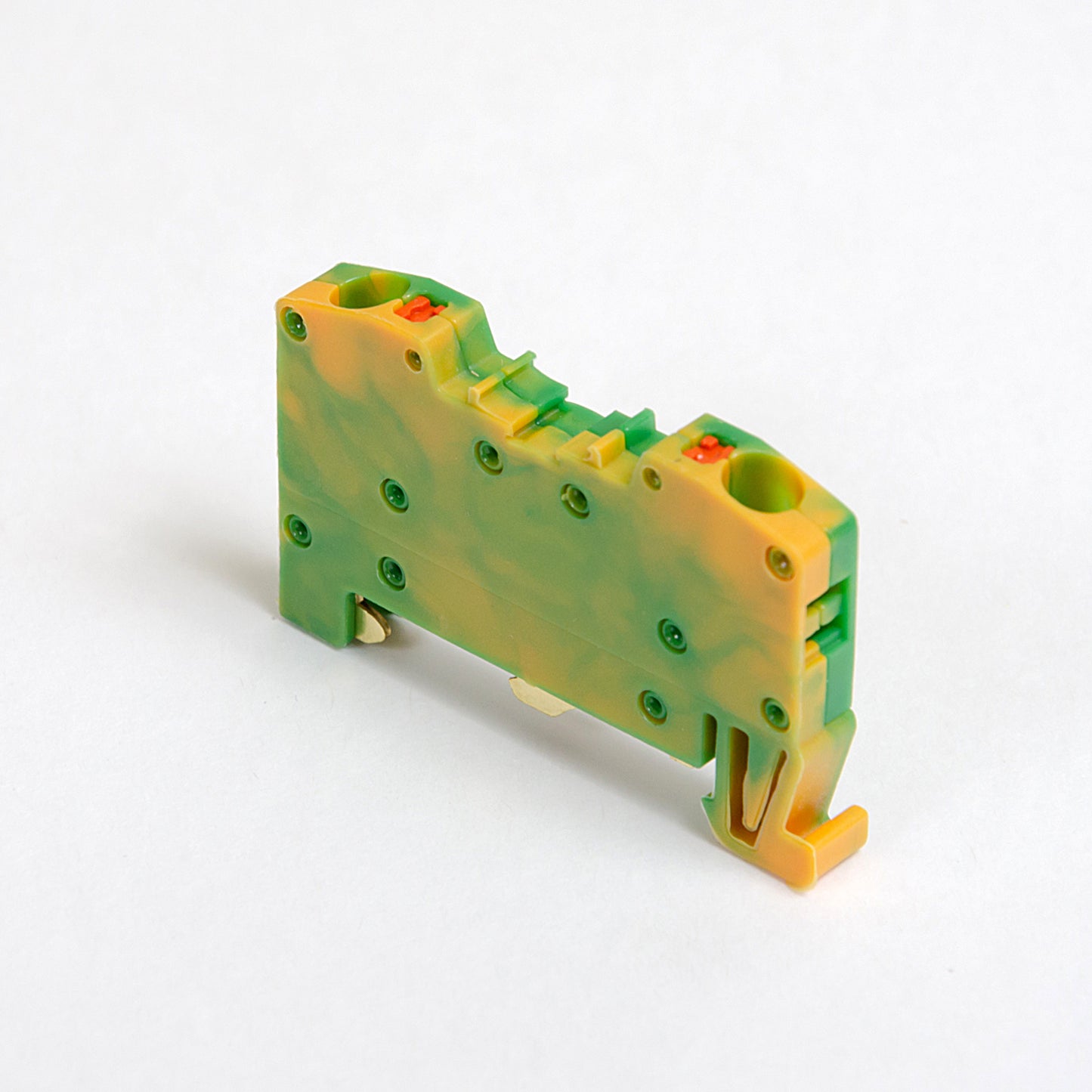

PE spring connector for busbar / DIN rail terminal with 2 green-yellow wires, ONKA, made in Turkey
ONKA compact installation rail connectors offer great possibilities for connecting any wire with different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. Original ONKA quick connectors are a convenience in installation and 100% connection reliability.
Technical parameters
Cross-section of single connected wire up to: 4mm2
Color Green-yellow (camouflage)
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: Steel/Copper CK45
Connection position: Up/up
Cable strip length: 9mm
Electrical connection type: spring clamp
Rated voltage: 750V
Operating temperature range: -40°C ... 140°C
Mounting method: 35 mm DIN mounting rail
Standard: EN-60947-7-1
