ONKA 6mm2 spring connector for DIN rail terminal strip terminal strip with 2 wires gray, 1020034
- Regular price
- 7,20 lei
- Regular price
-
- Sale price
- 7,20 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

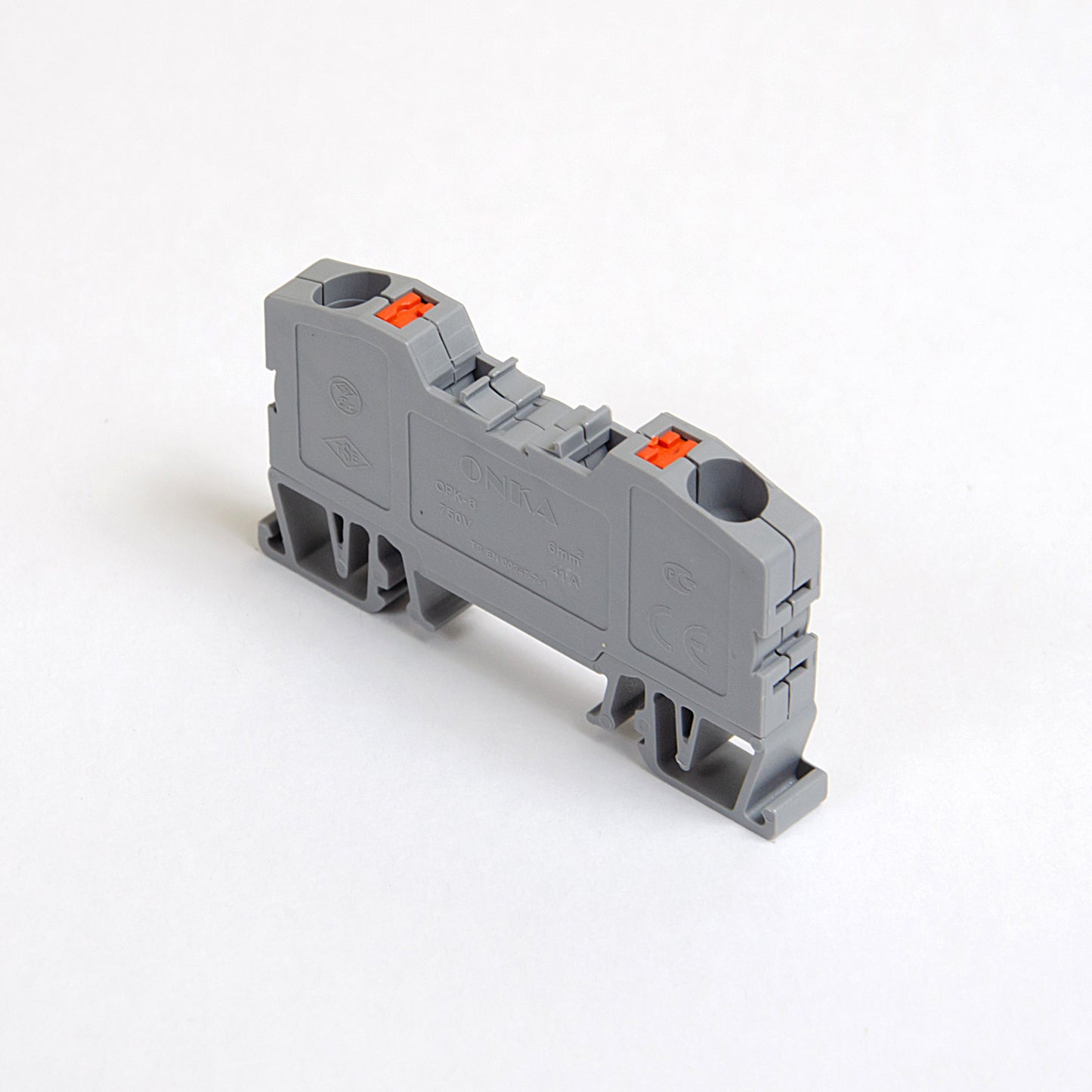

Spring-loaded connector for busbar / DIN rail terminal with 2 wires, retractable contact, gray, ONKA, made in Turkey
ONKA compact installation rail couplings offer great possibilities for connecting any wires with different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. Original ONKA quick couplings are a convenience in installation and 100% connection reliability.
Technical parameters
Cross-section of single connected wire up to: 6mm2
Color: gray
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: Up/up
Cable strip length: 12mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 41A
Operating temperature from: -40°C
Operating temperature range up to: 140°C
Mounting method: 35 mm DIN mounting rail
Standard: EN-60947-7-1
