ONKA 6mm2 screw connection terminal block fuses (fuses not included) gray, 1010241
- Regular price
- 15,00 lei
- Regular price
-
- Sale price
- 15,00 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

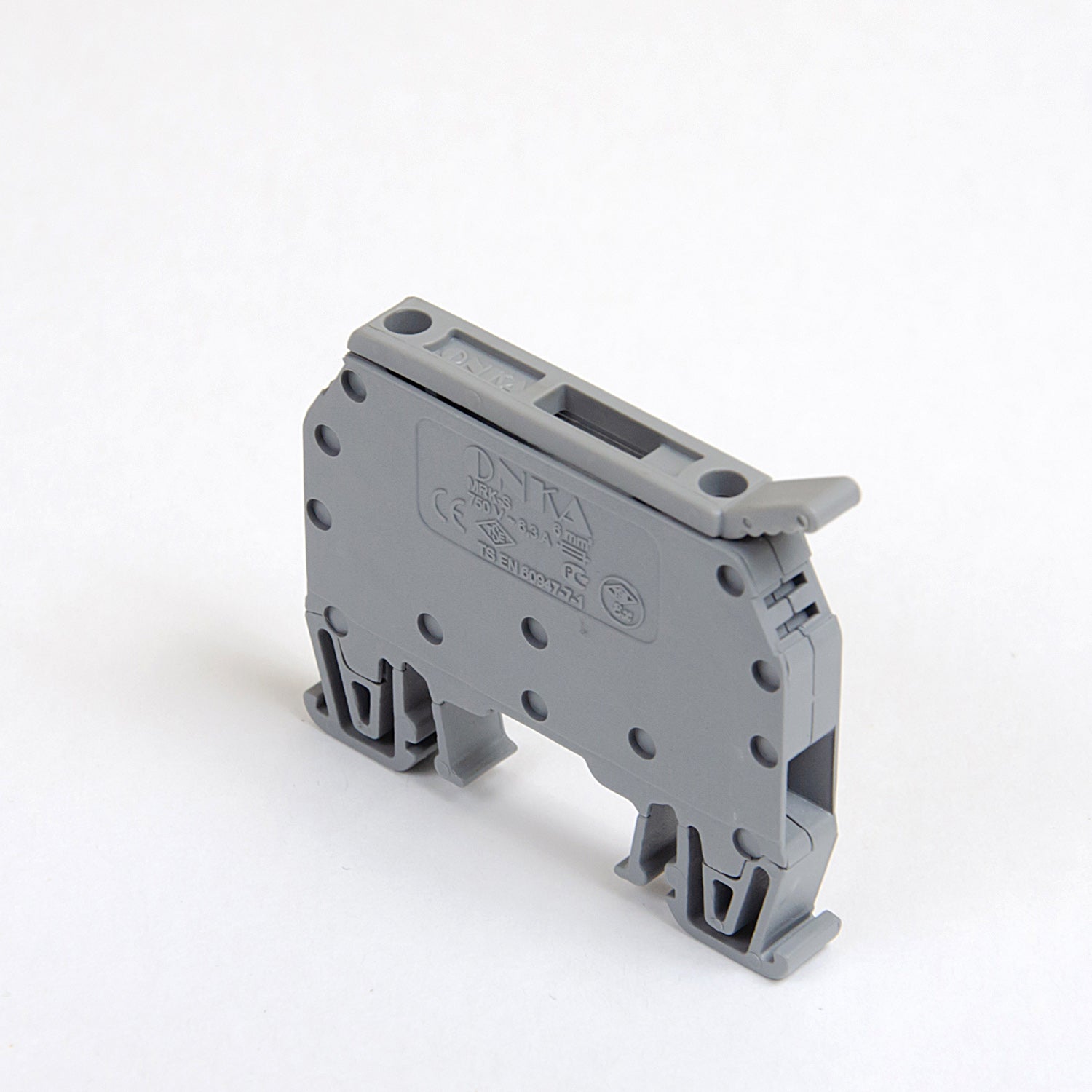

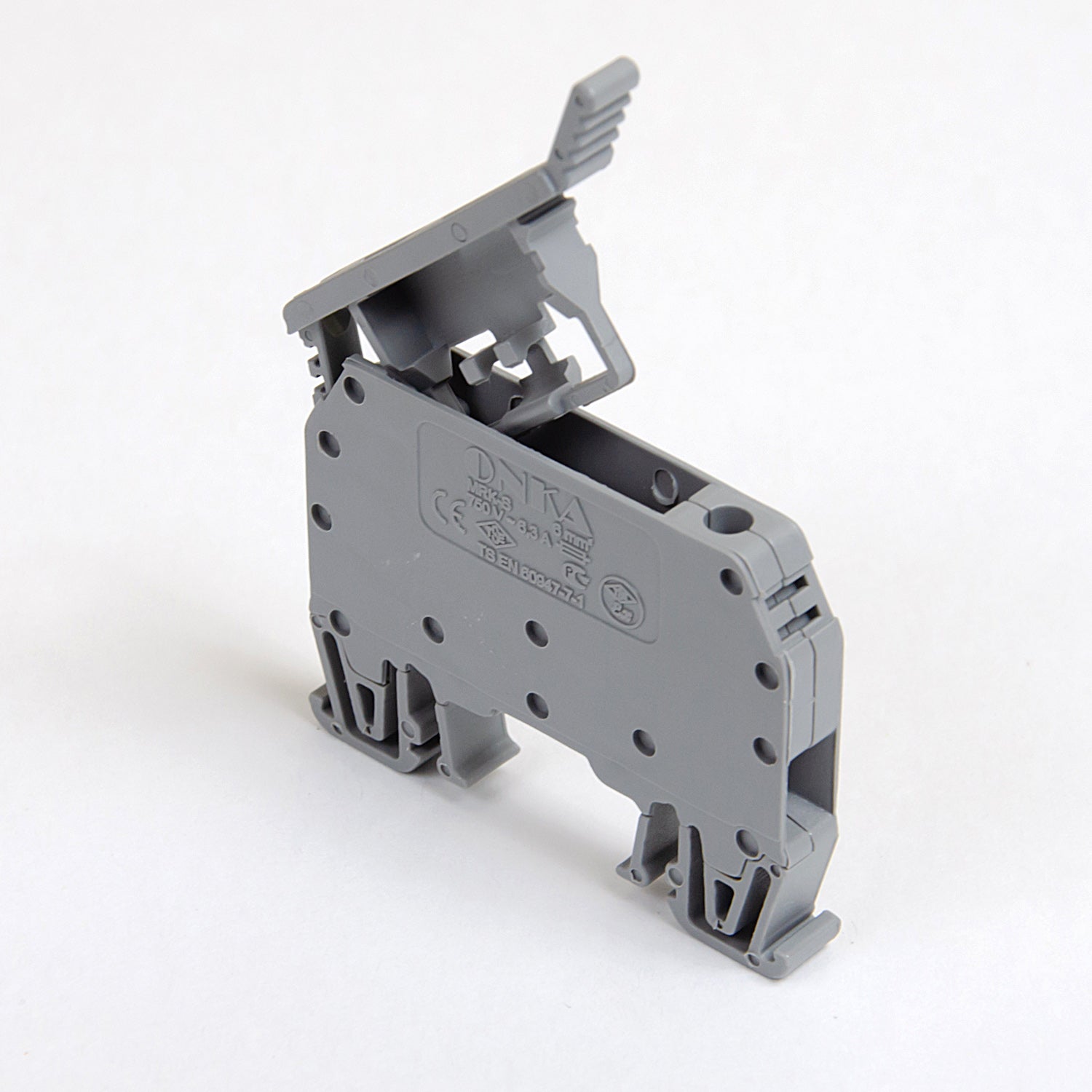

Screw connection with safety terminal block (fuse not included) 2 wires, gray, ONKA, made in Turkey
Used to protect low current AC or DC circuits. A 5x20 mm fuse is installed in the terminal with current setting up to 6.3 A. The fuse is not included and must be ordered separately.
Technical parameters
Cross-section of single connected wire up to: 6mm2
Color: gray
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: Steel/Copper CK45
Torque: 0.8 Nm 0.8 Nm
Connection position: side / side
Cable strip length: 10mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 6.3A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: 35 mm DIN mounting rail
Standard: EN-60947-7-1
