Seria OPK - Cleme de testare cu arc Push-In
- Regular price
- 11,80 lei
- Regular price
-
- Sale price
- 11,80 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

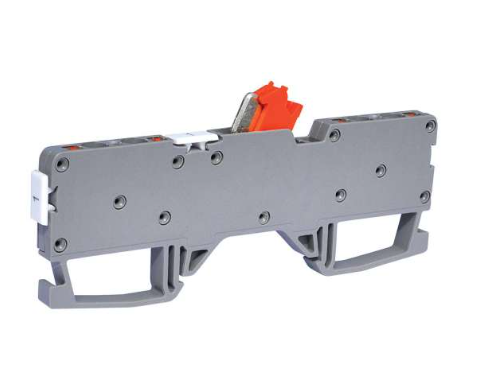

Clemă fără șurub pentru șină DIN gri, ONKA
Clemele compacte în linie ONKA asigură conexiuni electrice și mecanice fiabile în tablourile de distribuție. Acestea sunt concepute pentru montarea pe șină DIN standard de 35 mm. Clemele originale ONKA oferă un confort ridicat de montare, o fixare sigură a cablurilor și o stabilitate pe termen lung a conexiunilor, chiar și în condiții industriale dificile.
Parametrii tehnici
Culoare: gri
Secțiune nominală: 2,5 mm²
Curent nominal: 24 A
Tensiune nominală: 750 V
Material izolator al corpului: Poliamidă (PA 6.6)
Material punte: cupru
Material arc: oțel inoxidabil
Material buton de control: Poliamidă (PA 6.6), portocaliu
Interval de temperatură de funcționare: -40 °C până la +140 °C
Lungimea de dezizolare a cablurilor: 9 mm
Metoda de montare: șină de montare DIN 35 mm
Standard: EN-60947-7-1
Certificare: TSE, CE

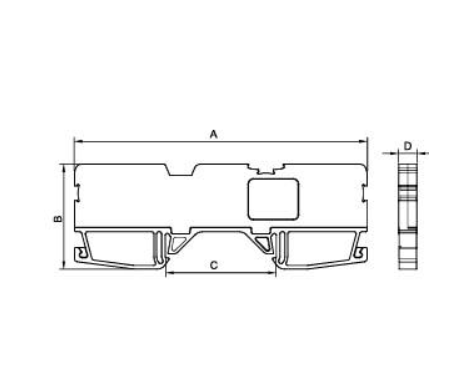

Dimensiuni
Lățime (A): 91.8 mm
Înălțime (B): 33,0 mm
Înălțime (C): 34,5 mm
Grosime (D): 5,9 mm
