Timing relay, 12V - 240V AC/DC 1 / 10 / 100 sec min hr
- Regular price
- 110,80 lei
- Regular price
-
- Sale price
- 110,80 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

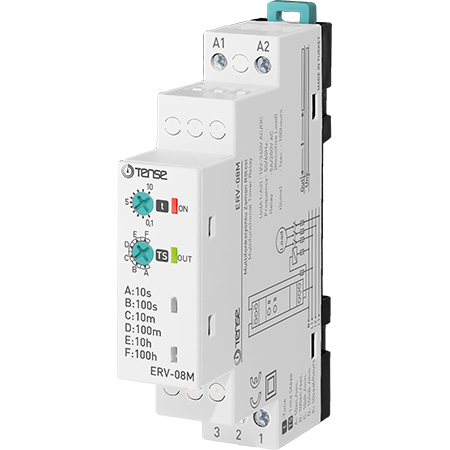

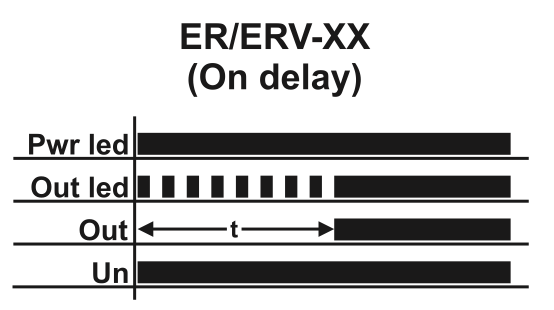

ON-DELAY monofunctional time relay 12V - 240V AC/DC with 1 switching contact.
The timing relay is used to switch loads in stages: electric boilers, ovens, heaters, etc., thus preventing current surges in the network and tripping of circuit breakers due to high surges.
It can also be used to coordinate the start-up time of multiple devices in machines, appliances, or other equipment.
Time interval:
A - 1-10 sec
B - 10-100 sec
C - 1-10 minutes
D - 10-100 minutes
E - 1-10 hrs
F - 10-100 hours

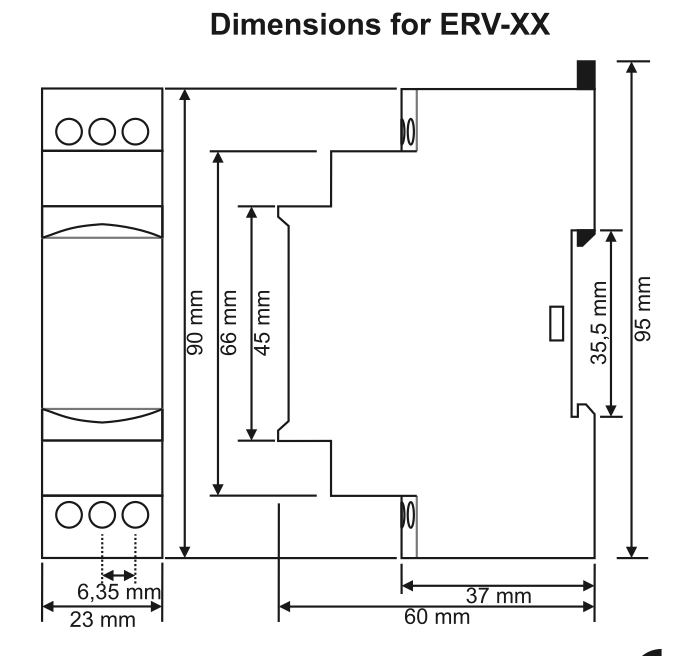

The time relay is mounted on a standard 35 mm DIN rail
