Vendor: TENSE

Multifunctional time relay time range: 0.1 s - 30 h 12V-240V AC/DC

Barcode: ERX-30
128,20 lei
128,20 lei
208 in stock
  • Description
  • Payment methods
  • Warranty

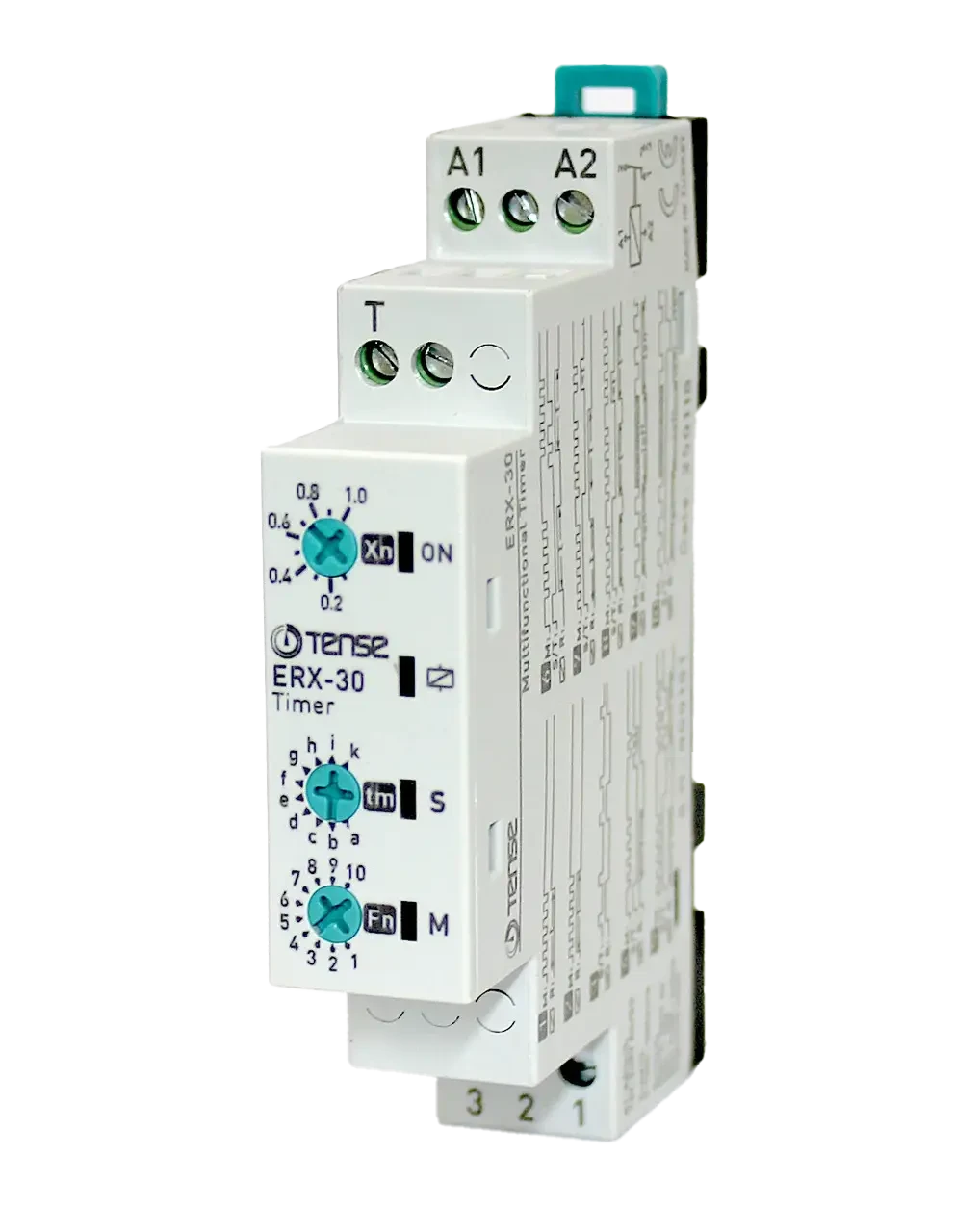

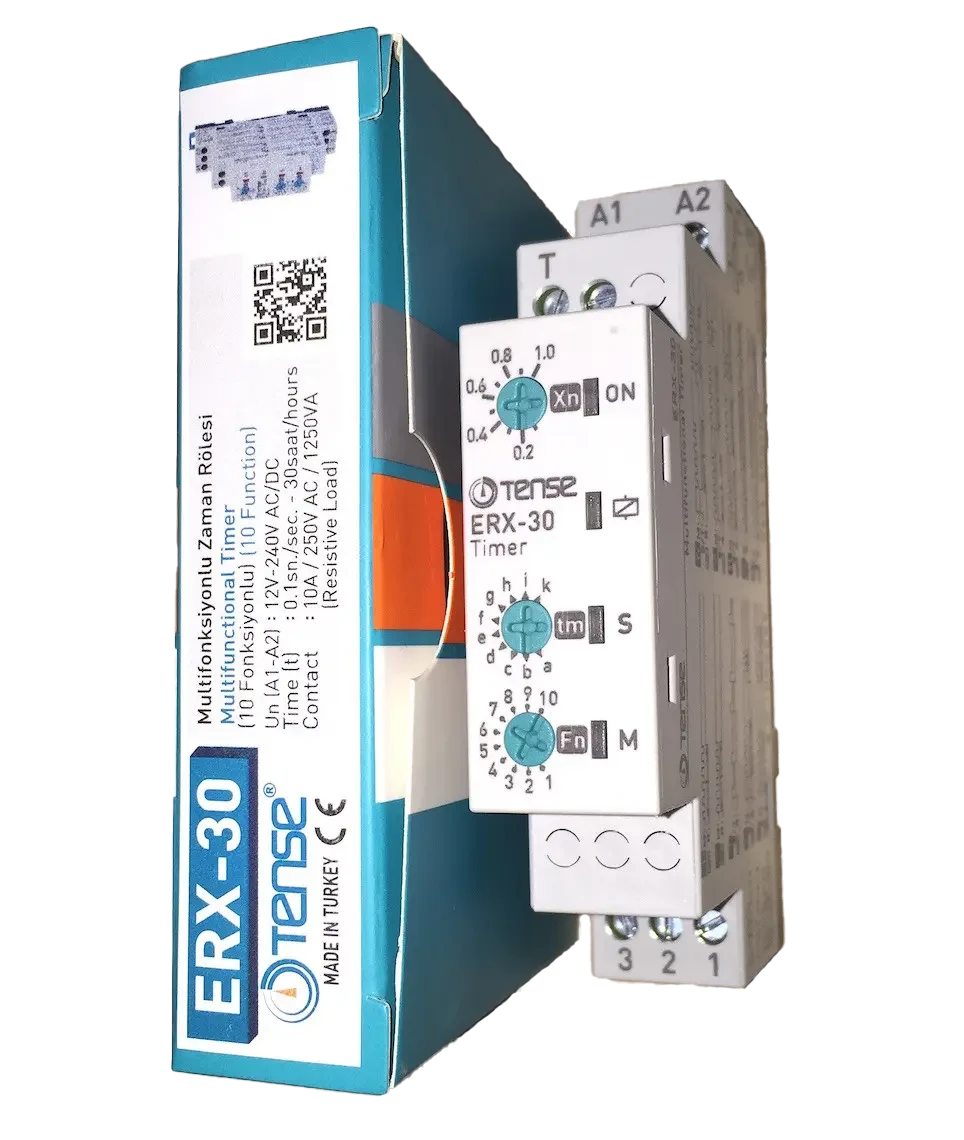

Multifunctional time relay (10 functions) 12V - 240V AC/DC with 1 changeover contact.

The time relay is multifunctional, designed to control time processes in automation systems in production and household. This relay can be used in industrial equipment - roasting coffee or seeds, cooking meat products, packaging / wrapping lines, as well as in houses or apartments, for example, to control a fan in the toilet or lighting on the stairs.

The 10 built-in time functions cover a wide range of tasks: for example, to organize automatic ventilation processes, opening / closing windows, periodic switching on of heating or ventilation, for lighting or rotating advertising boards, in washing machines, control inputs with ricochet, rotation - delay on start, delay on stop, delay on start and stop at the same time, etc.

It should be noted that this time relay is also versatile in terms of performance - it can operate with alternating and direct current in the range from 12 to 240 volts!

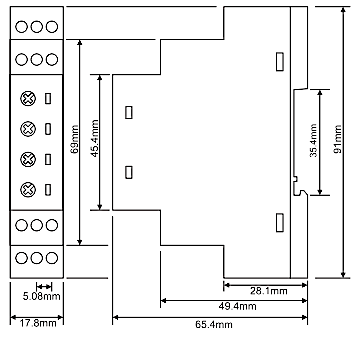

The time relay is mounted on a standard 35 mm DIN rail

  • Bistable relay 12v 24V 48v 110v 230 AC DC
  • Delayed start 12v 24V 48v 110v 230 AC DC
  • Delayed return 12v 24V 48v 110v 230 AC DC
  • Delayed start flash 12v 24V 48v 110v 230 AC DC
  • Delayed start after switching and delay 12v 24v 48v 110v 230 AC DC
  • Jump starter 12v 24V 48v 110v 230 AC DC
  • Delayed start after connection and delayed return after disconnection of the control contact (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
  • Pulse generator 12v 24V 48v 110v 230 AC DC
  • Downstream SINGLE SHOT 12v 24V 48v 110v 230 AC DC
  • Delayed return after SINGLE SHOT 12v 24V 48v 110v 230 AC DC

The ERX-30 universal time relay easily replaces more expensive analogues on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003
