Vendor: TENSE

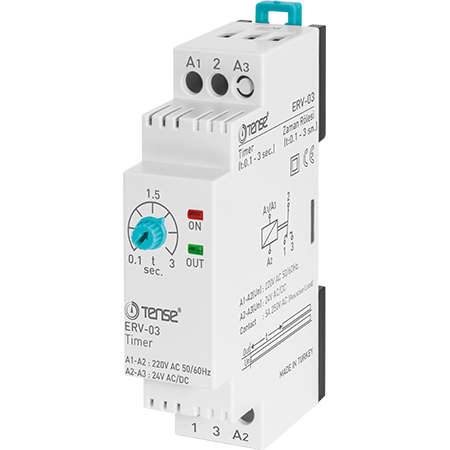

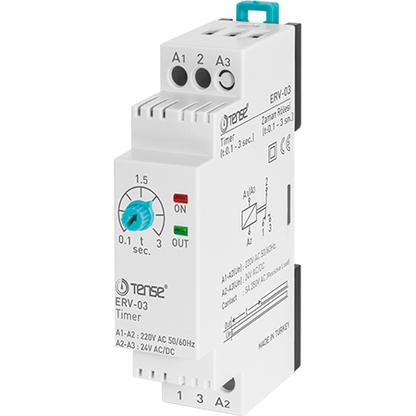

Time relay / ON-DELAY 24 V/AC/DC, 230 V/AC

Barcode: ERV-03
88,00 lei
88,00 lei
22 in stock
Time interval: 0-3s
  • Description
  • Instructions
  • Payment methods
  • Warranty

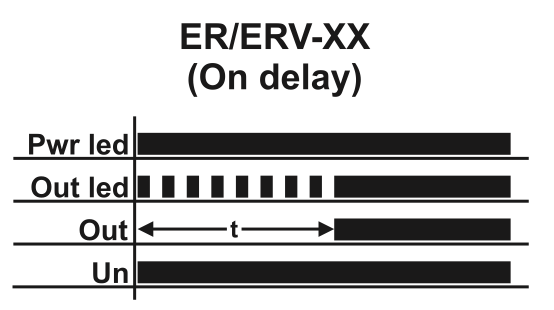

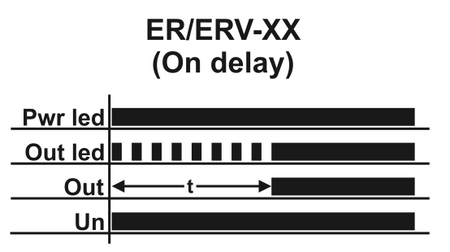

Releu monofuncțional ON-DELAY / delay / time delay cu sosire întârziată 24 V/DC, 24 V/AC, 230 V/AC cu 1 contact de comutare.

Releul cu întârziere este utilizat pentru a comuta sarcinile în succesiune: cazane electrice, cuptoare, încălzitoare etc. și astfel previne supratensiunile de curent în rețea și declanșarea întrerupătoarelor din cauza supratensiunilor mari.

De asemenea, poate fi utilizat pentru a coordona timpul de pornire a mai multor dispozitive din mașini, aparate sau alte echipamente.

Intervalul de timp:

ERV-03 - 0-3 s

ERV-12 - 0-12 sec.

ERV-30 - 0-30 sec.

ERV-60 - 0-60 sec.

ERV-03D - 0-3 min.

ERV-12D - 0-12 min.

ERV-30D - 0-30 min.

ERV-60D - 0-60 min

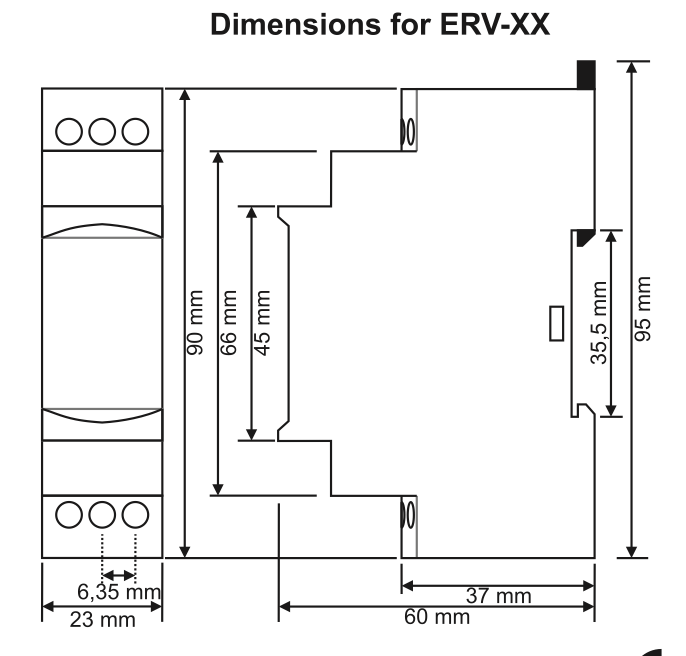

Releul de timp este montat pe o șină DIN standard de 35 mm.

Descărcare pe

Manual de utilizare
