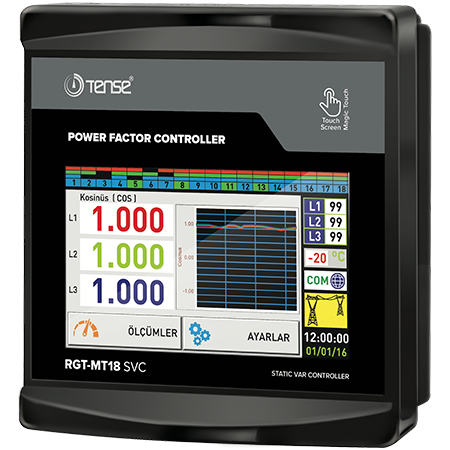

RGT-MT18 - 18-level reactive power controller +TCR with RS485 ModBus

18 steps + TCR Power factor controller for symmetrical/asymmetrical networks with 5 inch touch screen and RS-485 (TENSE)

Reactive power control relays are designed to reduce the reactive power (inductive and capacitive) that is not used by the load and is extracted from the network. When inductive power is extracted from the network, it intervenes by removing a capacitor to an appropriate value. When capacitive power is extracted from the network, it intervenes by taking a shunt inductance to an appropriate value. In this way, it tries to reduce the inductive/active and capacitive/active speeds of the system. It is designed to provide a more reasonable compensation in unbalanced inductive and capacitive systems with the RGT-MT18 TCR step

• Generator input and generator compensation

• Voltage, current/voltage harmonics, inductive and capacitive alarm output

• Start, download and settlement times can be adjusted

• Remote communication with RS485 (RS485 ModBus RTU)

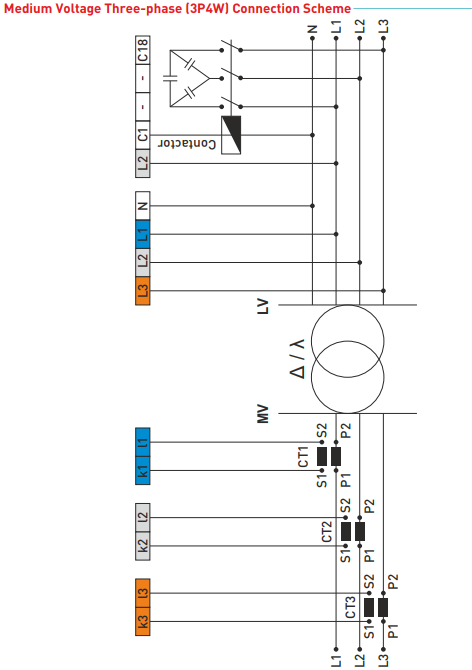

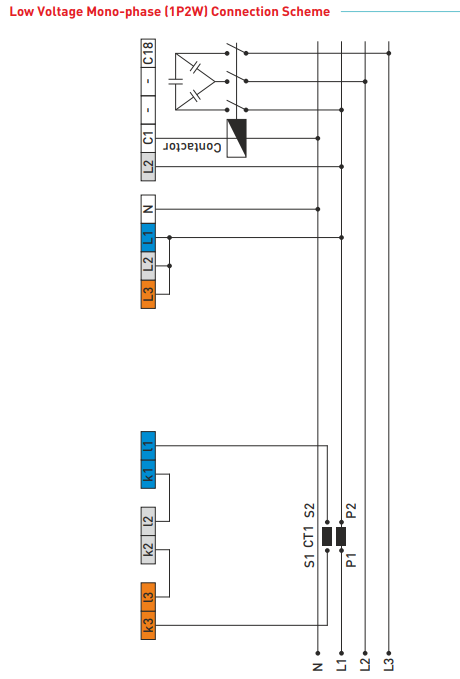

• A single-phase, two-phase and three-phase capacitor and a shunt reactor can be connected

• Harmonic voltage and current can be observed up to the 61st harmonic

• Total energy (import/export) can be monitored

• The THD-V and THD-I values of each phase can be observed

• Create power analysis (20 samples 9999 min.) - for capacitor selection

• Temperature alarm output

• Demand recording (active and reactive and apparent power and current demand)

• Minimum, maximum and average current and voltage values of each phase can be monitored

• Current date and time
