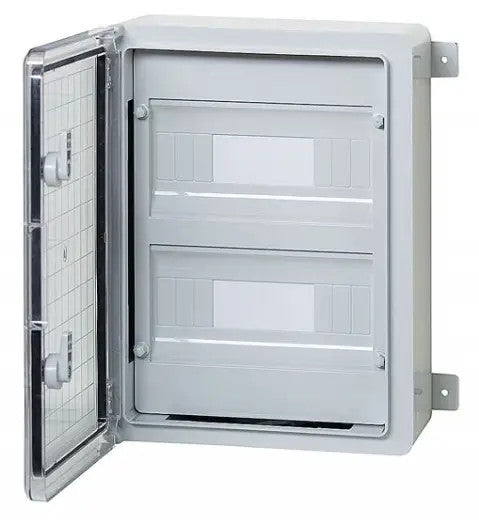

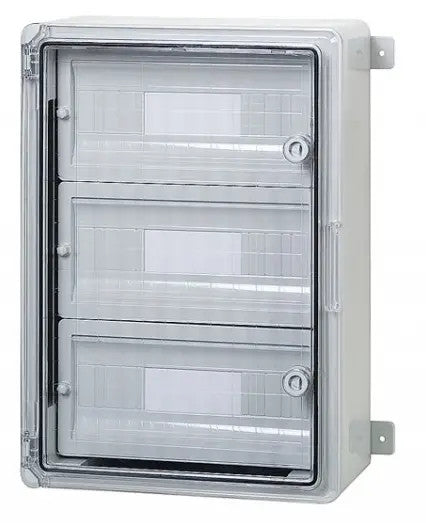

Plastic distribution board for modular devices, transparent door, IP65, Plastim

Barcode: PP3112

Regular price: 360,80 lei
Regular price
Sale price: 360,80 lei
Unit price: per

excl. VAT: 298,18 lei

Low stock: 2 left

Width x Height x Depth: 250x350x150 250x350x150 300x400x170 350x500x190 400x600x200

Product variants

Description
Instructions
Payment methods
Warranty

Plastic distribution board for modular devices, transparent door, DIN rail frame, IP65, Plastim

Code	Width (mm)	Height (mm)	Depth (mm)	modules	Weight (kg)
PP3112	250	350	150	18 (9×2)	2.5
PP3114	300	400	170	24 (12×2)	3.4
PP3116	350	500	190	45 (15×3)	4.5
PP3118	400	600	200	60 (15×4)	6.0

The new airtight plastic boxes manufactured by the Turkish company Plastim open a new page in the use of plastic protective boxes for automation and electrical power distribution tasks.

New housing design with corner reinforcements and increased thickness of the door and the entire product
Extended temperature range in which the protection retains all its improved properties -35/+60C
Mounting panel made of solid, lightweight and completely corrosion-resistant galvanized metal
can be equipped with transparent doors and DIN rails, reinforced hinges with metal pin;

MAIN TECHNICAL FEATURES

Material: Halogen-free ABS HB Halogen-free ABS + Polycarbonate (door)
Color: RAL7035 light gray
Protection: IP65, IK08
Rated voltage: up to 690 V
Maximum current: up to 800 A
Operating temperature: -35°C + 65°C

Manual
