Bimetallic thermostat with NC switching, switchable, range 0-60°C - temperature switches
- Regular price
- 48,80 lei
- Regular price
-
- Sale price
- 48,80 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

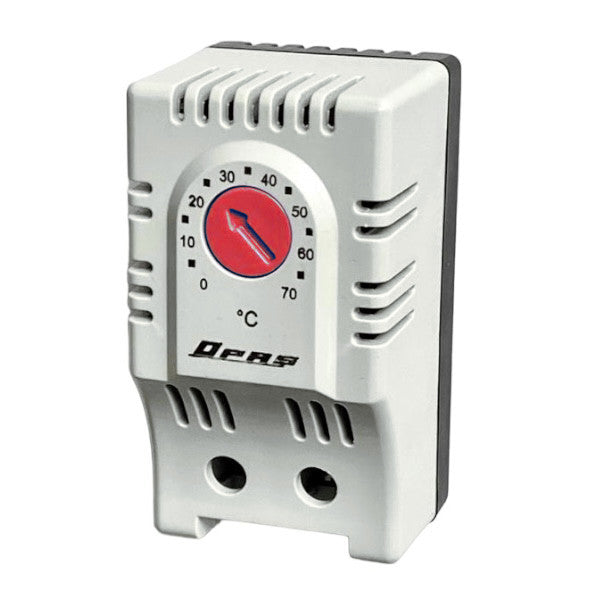

Bimetallic thermostat NC / temperature switches, 0-60°C, DIN rail mounting.bimetal from OPAȘ
Simple thermostat. 220(250) V AC. Bimetallic type sensor, heating function. electrical connection with 2 terminals 2.5 mm2. mounting method on 35 mm DIN rail, cross rails, on mounting panel.

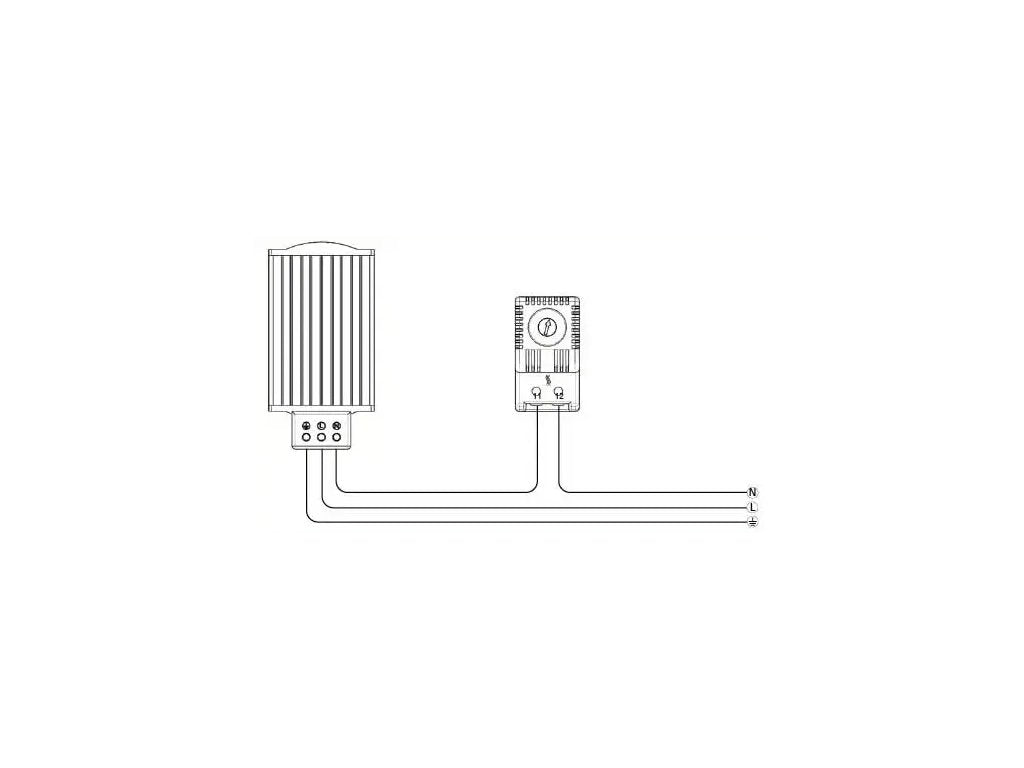

Used to connect heating elements - heating elements, panel heaters, heated floors, heating cables, heat fans.
Features |
PTOT001 |
Contact type |
NC |
Setting range |
0-60 °C |
Potentiometer color |
Red |
250V AC / 120V AC |
10 (2) A |
Sensor type |
Bimetallic |
Contact type |
Instant action |
Lifespan |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic |
UL94 V0 ABS Flame Retardant |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 / +80 °C |
Installation |
35mm DIN rail |
Dimensions HxWxD |
61x34x38 mm |
Weight |
43g |
