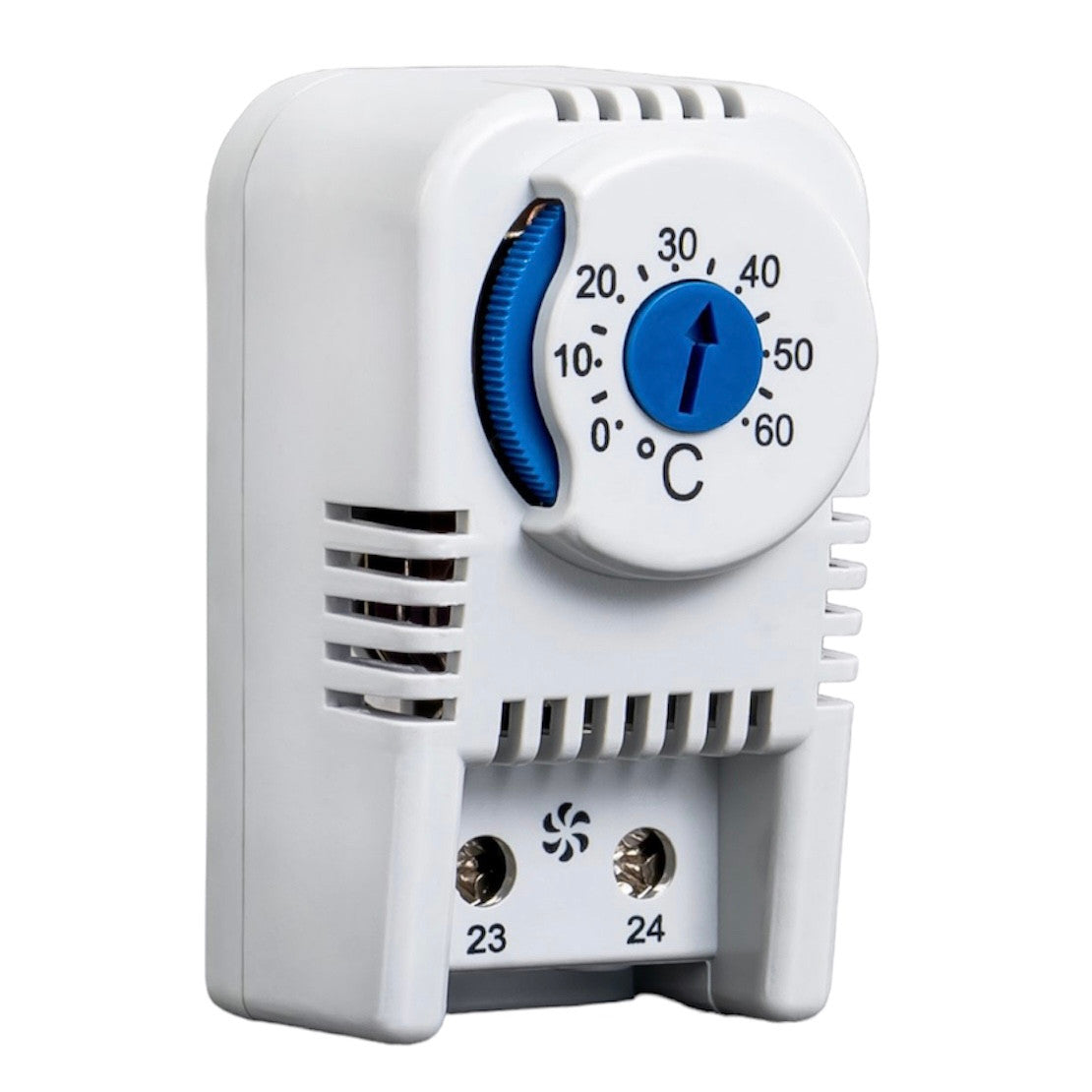

Bimetallic thermostat with NO switching, adjustment range 0-60°C, PTVT
- Regular price
- 46,20 lei
- Regular price
-
- Sale price
- 46,20 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Panel thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with built-in air temperature sensor for installation on DIN rail for connecting the fan or signaling when the temperature rises above the set level, normally open contact (NO contact) PTVT, 2p, screw terminals, Plastim bimetal thermostats.
These thermostats are used in systems that maintain a set temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals and other equipment installed outdoors or in unrefrigerated rooms.

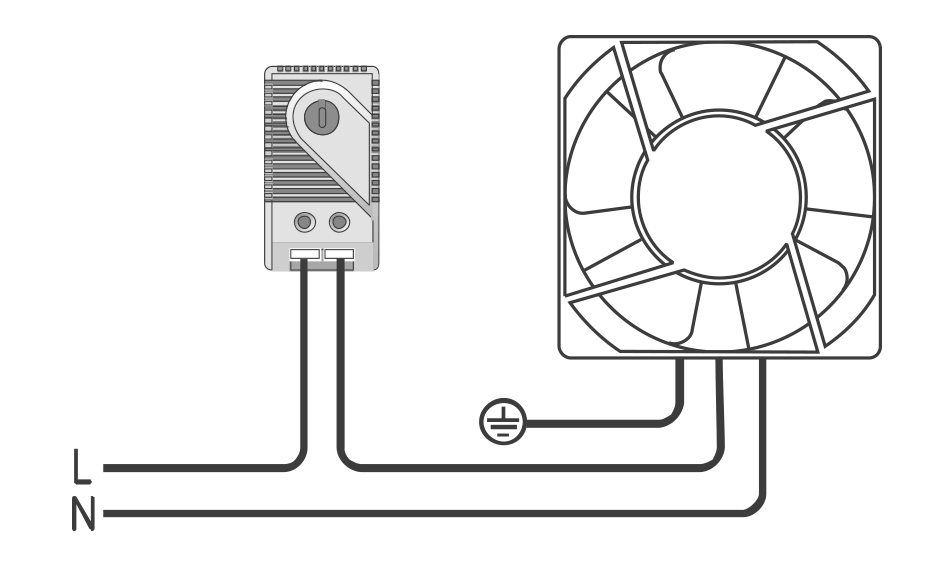

They are used to connect fans, coolers/air conditioners.
Features |
PTHT |
Contact type |
NOT |
Setting range |
0-60°C |
Potentiometer color |
Blue |
250V AC / 120V AC |
15 (2) A |
Sensor type |
Bimetallic |
Contact type |
Quick action |
Lifespan |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic |
UL94 V0 ABS Flame Retardant |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
|
Storage temperature |
-45 /+80°C |
Installation |
35mm DIN rail |
Dimensions HxWxD |
61x34x38 mm |
Weight |
45g |
