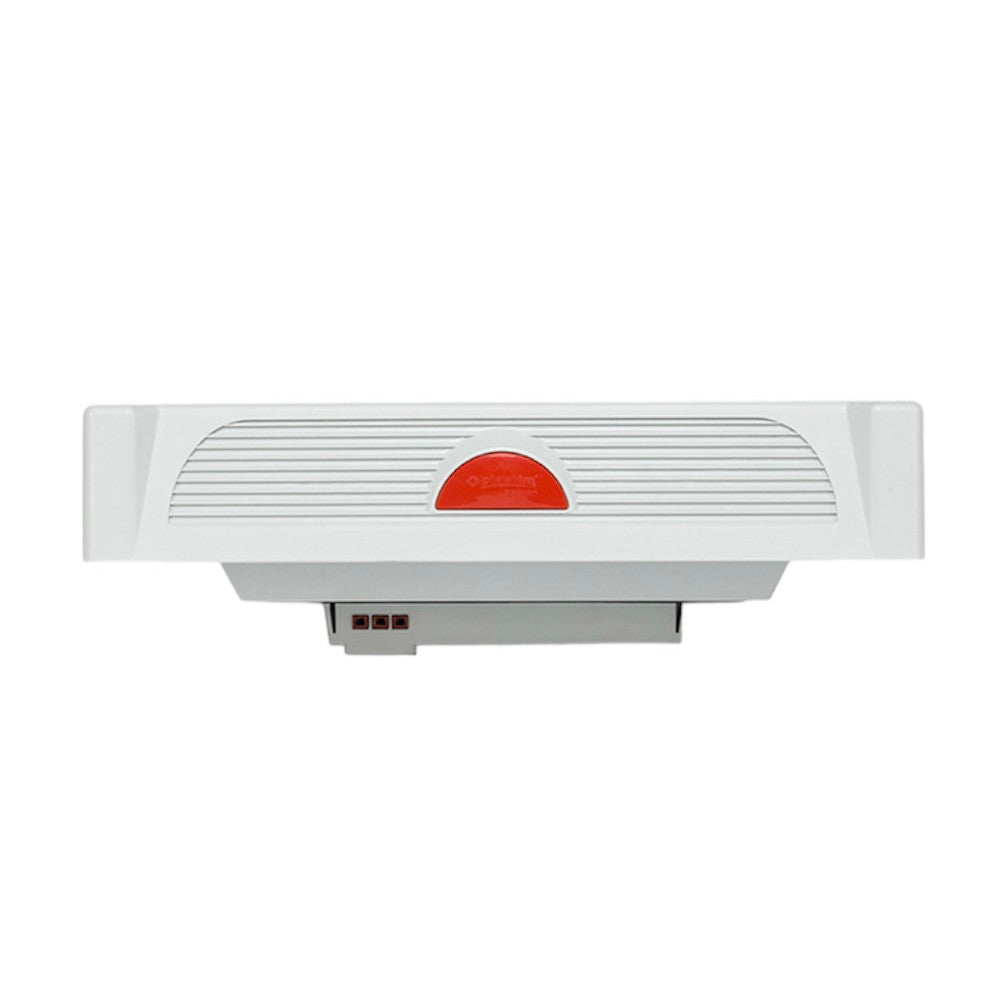

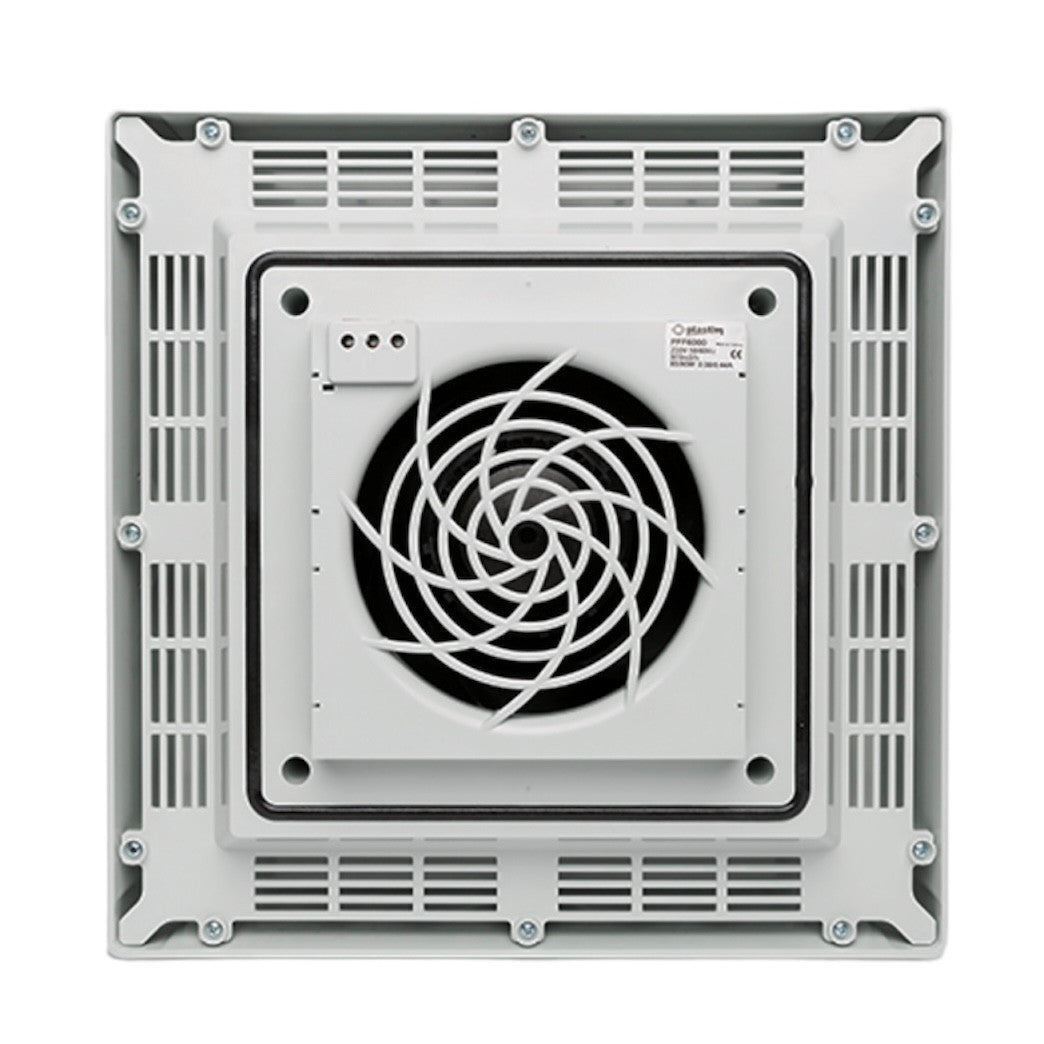

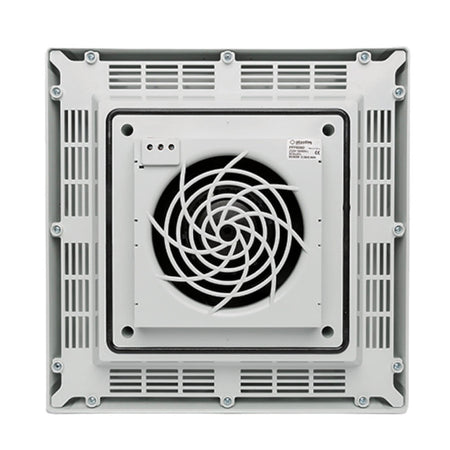

Roof fan, panel fan, 560m3/h, 230VAC, 364x364x107mm, IP54, PTS5500
- Regular price
- 1.663,80 lei
- Regular price
-
- Sale price
- 1.663,80 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Enclosure fan for installation on the roof of the switchboard, PTS5500, PLASTIM (Türkiye)
This fan is designed for use in a microclimate system in a switchboard or automation panel and is usually used with a PTVT or PTHVT thermostat. It is installed on the roof of the enclosure, allowing the most efficient extraction of excess hot air from the enclosure volume.
Although the fans have the same overall dimensions, they differ in terms of the volume of air emitted and the noise level.
- External dimensions: 364x364x107 mm
- Installation dimensions: 178x178 mm
- Volume flow rate: 560 m3/h
- Noise level: 62 (64) dB(A)
- Bearing: Ball bearing
- Lifespan: 50000 h
- Operating voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.26/0.34 A
- Rated power: 58/75 W
- Electrical connection: 2.5 mm2 three-pole terminal
- Flow direction: Air flow is directed from the inside to the outside of the cabinet
- Operating temperature: -10/+70 °C
- Protection degree: IP54
- Plastic material: ABS UL94 V0 Flame retardant
- Sealing: Polyurethane sealing
- Color: RAL 7035
- Weight: 3.16 kg
- Installation: Quick clip-on
To ensure automatic air exchange and temperature maintenance with this fan you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased from our website.
