Vendor: Plastim

PTC Mini Switch Heater 25W, MPHT25, Plastim

Barcode: MPHT25
126,40 lei
126,40 lei
28 in stock
  • Description
  • Payment methods
  • Warranty

Mini electric heater (PTC Body heater, post-tension heater) for distribution boards with anodized aluminum radiator and overcurrent protection, for DIN rail installation with 25 watts, 110-220 volts AC or DC, MPHT25, Plastim - made in Turkey.

  • Heating power: 25W

  • Operating voltage: 100-250V AC/DC

  • Maximum current: 2A

  • Heating element type: Self-regulating PTC resistor

  • Overcurrent protection: Electronic thermal overload relay

  • Electrical connection: 30 cm cable, NLE

  • IEC protection class: Class II

  • Protection degree: IP20

  • Operating temperature: -45 / +70 °C

  • Storage temperature: -45 / +70 °C

  • Heat sink: Aluminum profile, anodized

  • Mounting: 35 mm DIN rail

  • Mounting position: Best efficiency in vertical position

  • External dimensions: 70x50x27mm

  • Weight: 0.12 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not ensure compliance with the strict modern requirements for electrical and electronic equipment. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also guarantee safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.

Due to the high requirements for cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric.

Agree that this approach to supplier selection favorably differentiates high-quality Plastim heaters from cheap Chinese analogues.

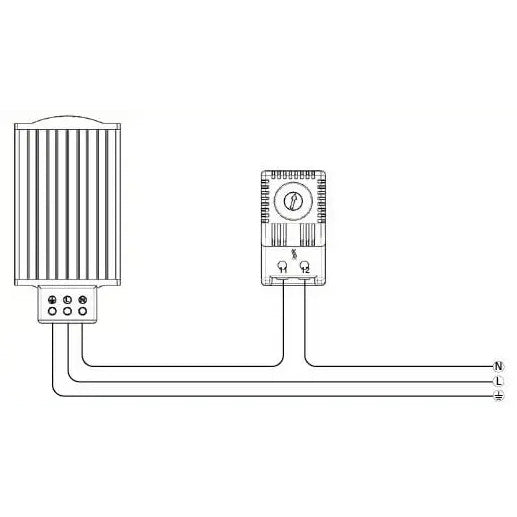

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller... both devices can be purchased from our website.
