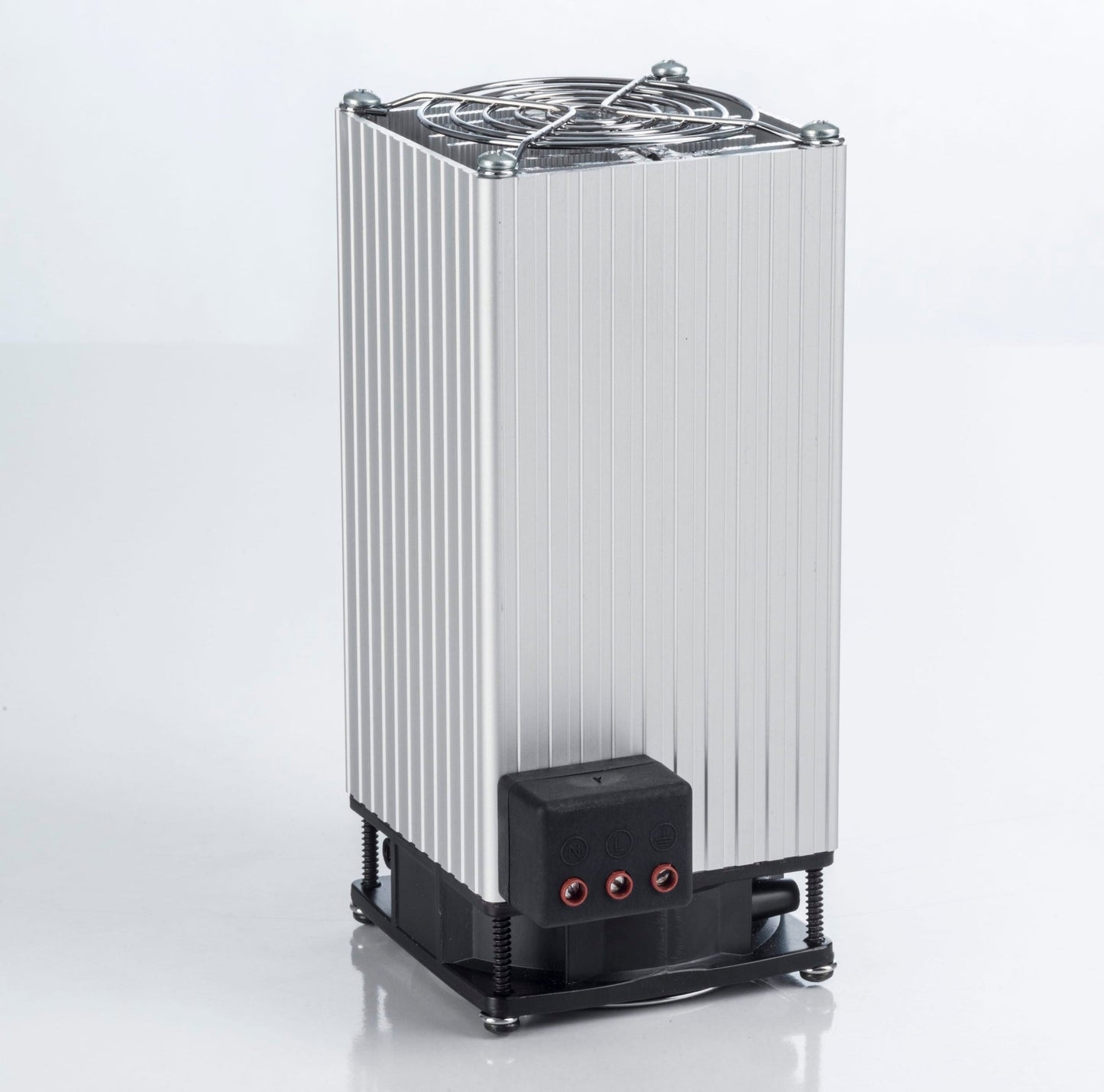

Resistive heater for electrical panel with fan 500W, PFHT500, PLASTIM
- Regular price
- 661,60 lei
- Regular price
-
- Sale price
- 661,60 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Electric heater (resistance heater, post-heater) for electrical panel with fan, with anodized aluminum radiator and overcurrent protection, for installation on DIN rail with power of 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.
-
Heating power: 500W
-
Operating voltage: 220/230V AC, 50/60Hz
-
Maximum current: 2.4 A
-
Resistance heater type.
-
Axial fan: 80x80x25mm 35m3/h
-
Overcurrent protection: electronic thermal overload relay
-
Electrical connection: Three-pole NLE terminal
-
IEC protection class: Class II
-
Protection degree: IP20
-
Operating temperature: -25 / +70 °C
-
Storage temperature: -25 / +70 °C
-
Heat sink: Aluminum profile, anodized
-
Mounting: 35 mm DIN rail
-
Mounting position: Best efficiency in vertical position
-
External dimensions: 182x80x110mm
-
Weight: 1.2 kg

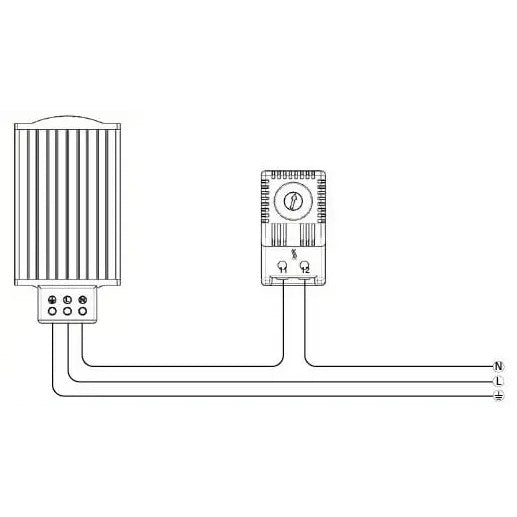

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website.
