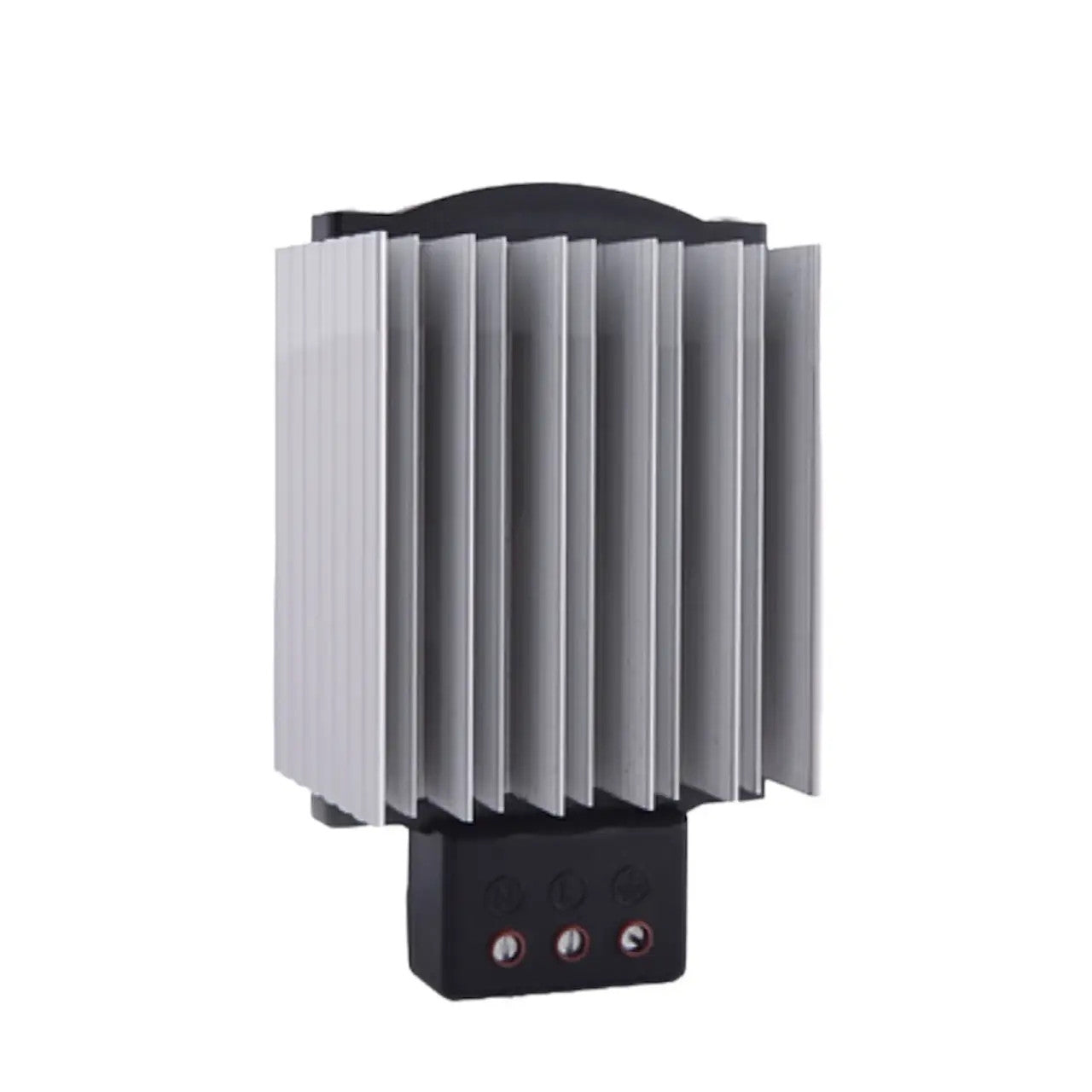

PTC Electric Panel Heater 50W, PHT050, Plastim

Electric heater (PTC Body Heater, post-test heater) for the distribution board with anodized aluminum radiator and overcurrent protection, for installation on DIN rail with 50 watts, 110-220 volts AC or DC, PHT050, Plastim - made in Turkey.

• Heating power: 50W
• Operating voltage: 100-250V AC/DC
• Maximum current: 2A
• Self-regulating PTC resistance
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: Class II
• Degree of protection: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Anodized aluminum profile

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 138x70x59mm

• Weight: 0.44 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not meet the strict modern requirements for electrical and electronic equipment. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also guarantee safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.

Due to the high demands for cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is manufactured by the Italian company KORNER to special order. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odor and, therefore, does not release any harmful carcinogenic substances into the atmosphere. You agree that this approach to supplier selection favorably distinguishes high-quality Plastim heaters from cheap Chinese analogs.

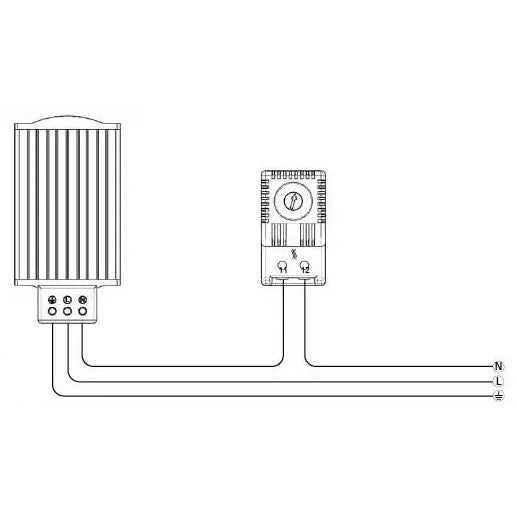

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller.
