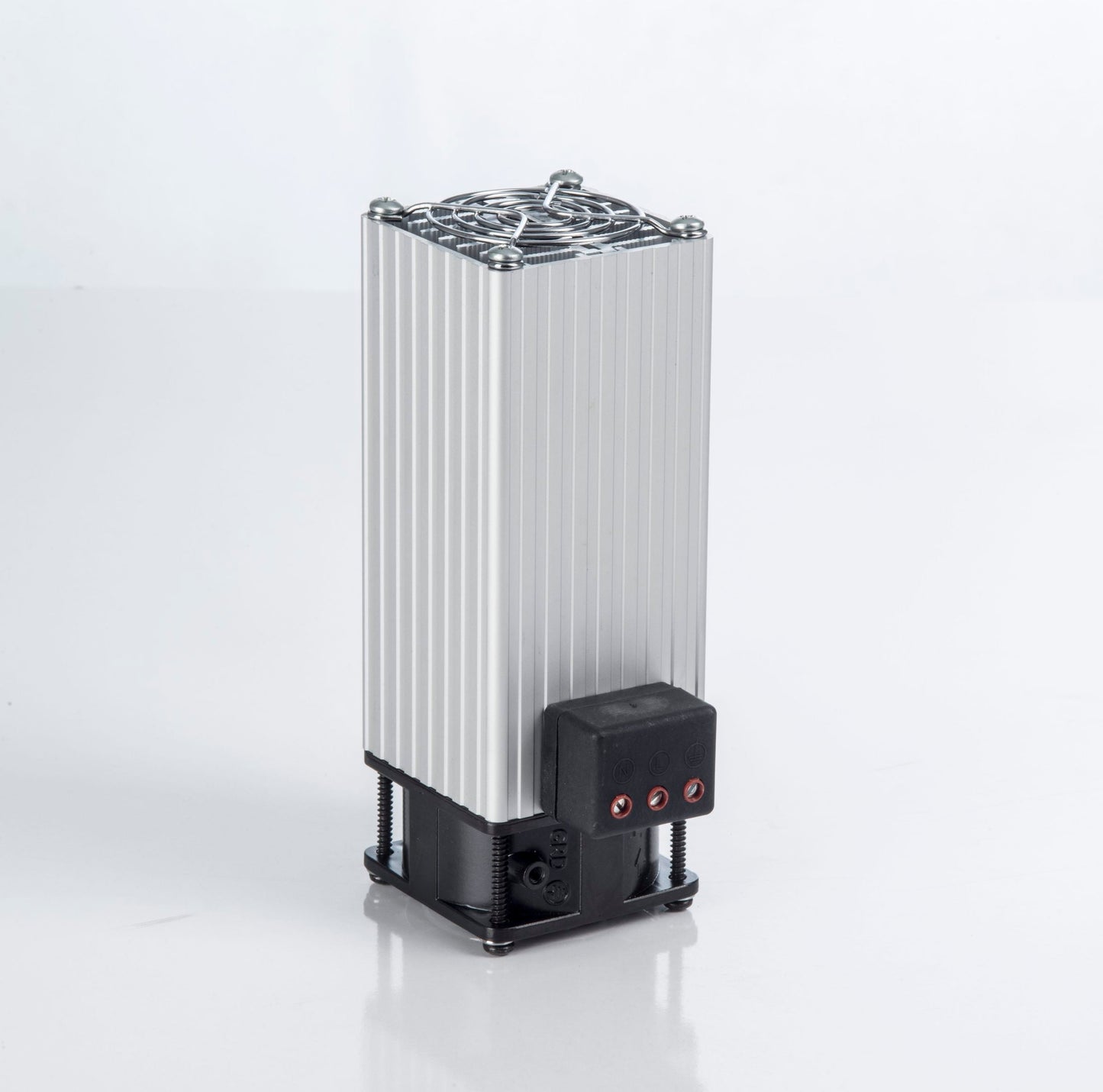

PTC heating panel with fan 100W, PFHT100, PLASTIM

Electric heater (PTC Body Heater, post-tension heater) for distribution board with fan, with anodized aluminum radiator and overcurrent protection, for DIN rail installation with 100 watts, 220/230 volts AC, PFHT100, Plastim - made in Turkey.

• Heating power: 100W

• Operating voltage: 220/230V AC, 50/60Hz

• Maximum current: 4A

• Heating element type: Self-regulating PTC resistor

• Axial fan: 60x60x30mm 16m3/h

• Overcurrent protection: electronic thermal overload relay

• Electrical connection: 3-pole NLE terminal

• IEC protection class: Class II

• Protection degree: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat sink: Aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 170x89x60mm

• Weight: 0.70 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not ensure compliance with the strict modern requirements for electrical and electronic equipment. Currently, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also guarantee safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.

Due to the high requirements for cabinet heaters, Plastim paid the greatest attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is manufactured by the Italian company KORNER on special order. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odor and, therefore, does not emit any harmful carcinogens into the atmosphere. You will agree that this approach to the selection of suppliers favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller, both of which can be purchased from our website.
