PTC 75W, PSHT075, Plastim

Plata online cu cardul – după finalizarea comenzii veți fi redirecționat către pagina de plată, iar confirmarea plății vă va fi trimisă pe e-mail.

Ramburs – plata conform instrucțiunilor de plată se va face către șoferul companiei de transport.

Prin transfer – pe adresa dumneavoastră de e-mail veți primi cel târziu în următoarea zi lucrătoare o factură proformă, care va conține numărul de cont necesar pentru efectuarea plății.

Pe bază de factură – această variantă de plată este disponibilă partenerilor care au încheiat un contract-cadru cu societatea noastră.

Dacă doriți să utilizați una dintre ultimele două metode, vă rugăm să contactați managerul nostru, care vă va oferi instrucțiuni privind obținerea unei facturi cu sau fără TVA.

Echipamentele electrice furnizate de noi respectă standarde ridicate de calitate, beneficiază de o garanție de 24 de luni și îndeplinesc toate cerințele Uniunii Europene.

În cazul unei reclamații, returnarea produsului nu implică nicio taxă.

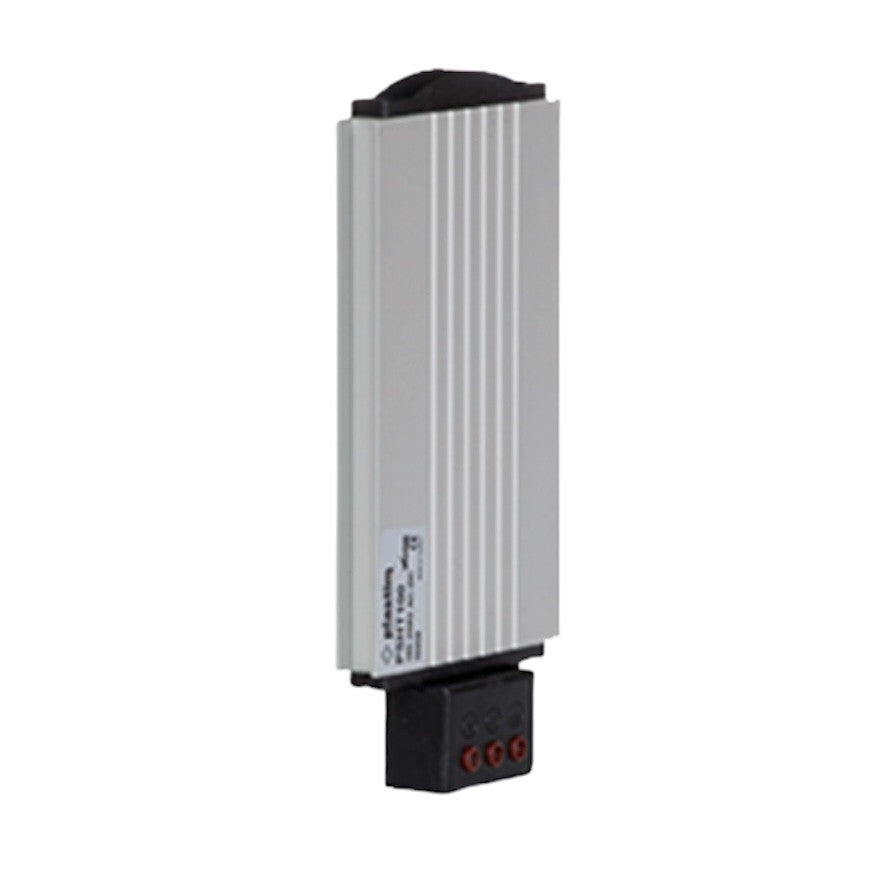

Thin electric heater (PTC Body heater, post-tension heater) with anodized aluminum radiator and overcurrent protection, for DIN rail installation with 75 watts, 110-220 volts AC or DC, PSHT075, Plastim - made in Turkey.

• Heating power: 75W
• Operating voltage: 100-250V AC/DC
• Maximum current: 4A
• Heating element type: Self-regulating PTC resistor
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: NLE three-pole terminal
• IEC protection class: Class II
• Protection degree: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 168x80x27mm

• Weight: 0.225 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals and other electronic equipment. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not ensure compliance with the strict modern requirements for electrical and electronic equipment. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also guarantee safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.

Due to the high requirements for cabinet heaters, Plastim paid the greatest attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is manufactured by the Italian company KORNER on special order. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odor and, therefore, does not emit any harmful carcinogens into the atmosphere. You will agree that this approach to the selection of suppliers favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller, both of which can be purchased from our website:
