Fan with filter, 125 (175) m3/h, 210x210, 230V 50/60Hz IP54 PTF2000 Plastim

Barcode: PTF2000

Regular price: 385,00 lei
Regular price
Sale price: 385,00 lei
Unit price: per

22 in stock

Product variants

Description
Instructions
Payment methods
Warranty

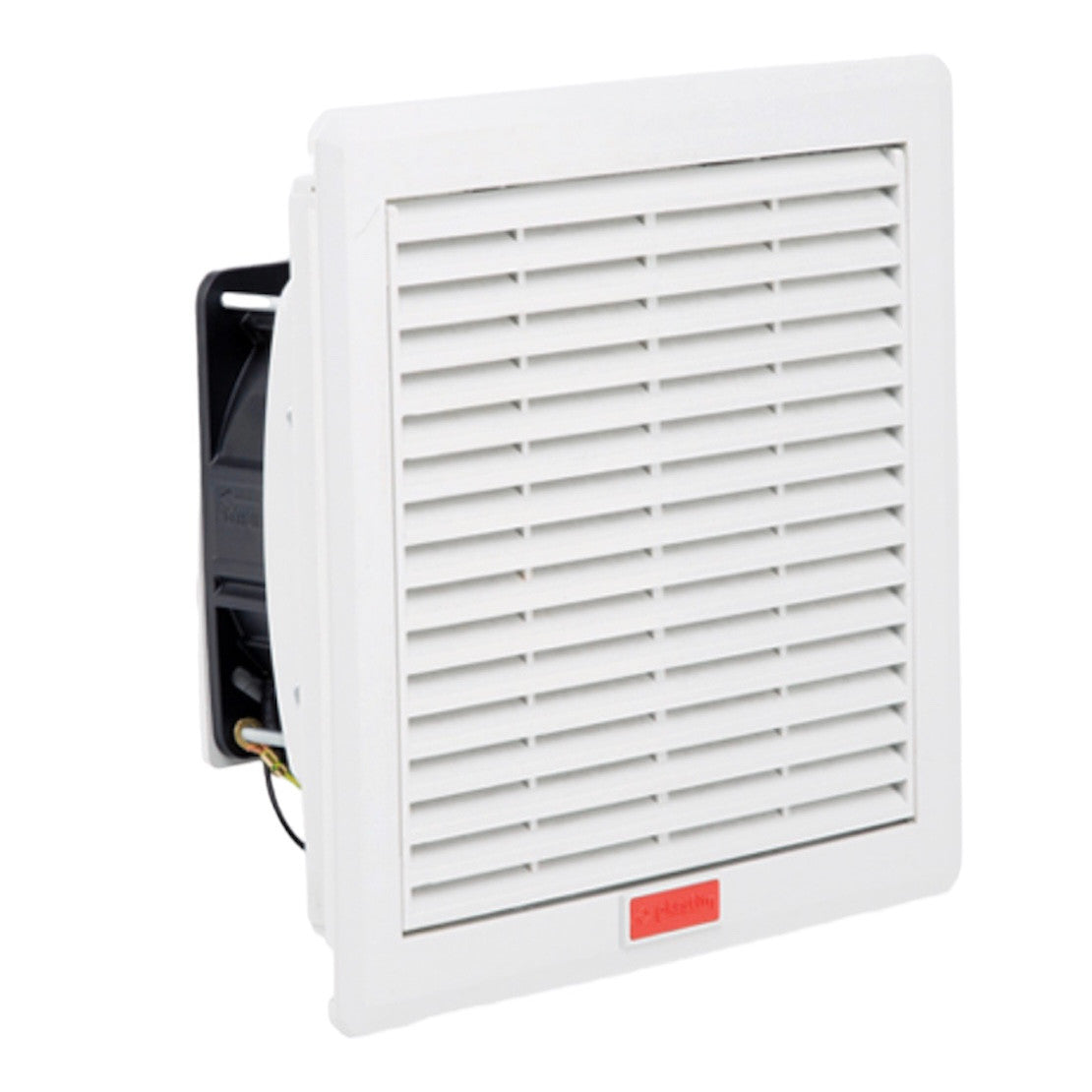

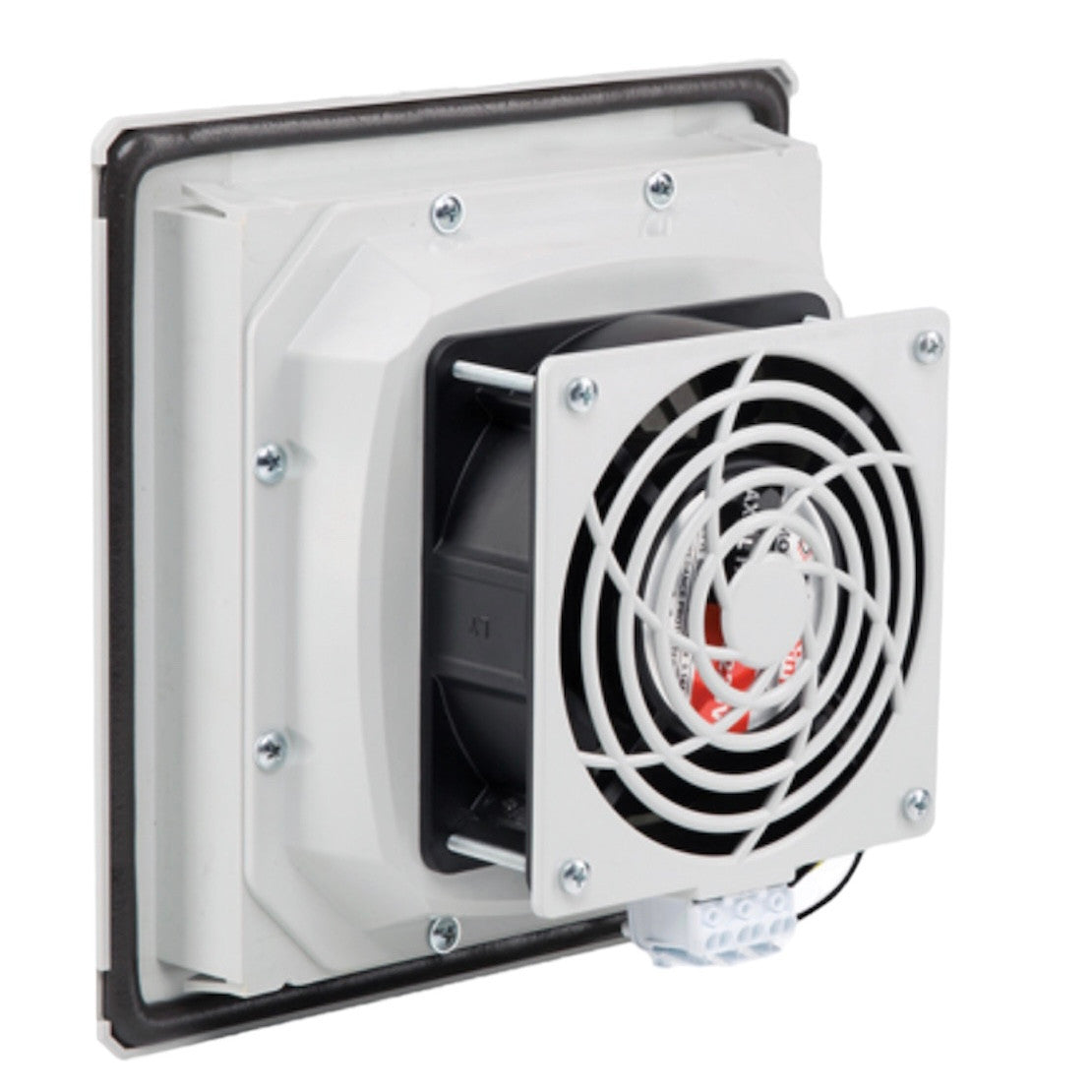

Ventilation grille with fan and filter, size 210x210 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF2000, manufacturer Plastim (Türkiye)

Used for outside air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of the boxes to maintain IP.

External dimensions: 210x210x98 mm
Installation dimensions: 175x175 mm
Volume flow: 125 (175) m3/h
Noise level: 42 (46) dB(A)
Bearing: Ball bearing
Operating voltage: 220-230VAC, 50/60Hz
Current consumption: 0.14(0.13) A
Rated power: 26 (23) W
Electrical connection: 3-pole terminal
Flow direction: From outside to inside (can be changed)
Operating temperature: -10/+70 °C
Protection degree: IP54 IP54
Plastic material: ABS UL94 V0 Flame retardant
Sealing: Polyurethane sealing
Color: RAL 7035 (RAL 7032 on request)
Weight: 1.05 kg
Installation: Quick clip-on

To ensure automatic air exchange and temperature maintenance with this fan you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased from our website.
